#include <rtems/score/or1k.h>#include <rtems/score/or1k-utility.h>#include <rtems/score/types.h>#include <rtems/bspIo.h>#include <stdint.h>#include <stdio.h>

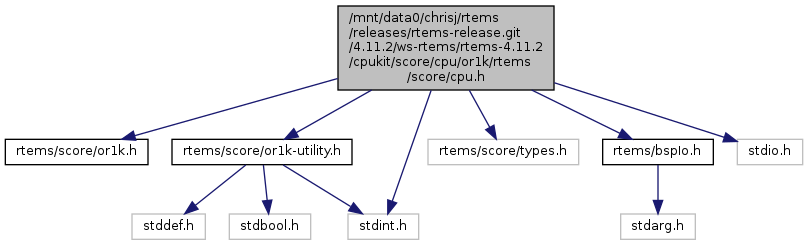

Include dependency graph for cpu.h:

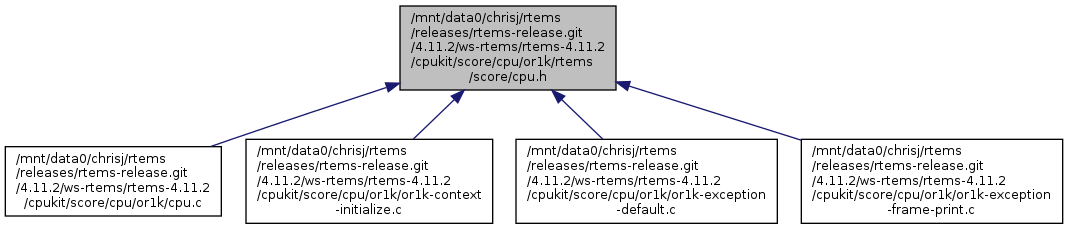

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | Context_Control |
| This defines the minimal set of integer and processor state registers that must be saved during a voluntary context switch from one thread to another. More... | |
| struct | Context_Control_fp |
| This defines the complete set of floating point registers that must be saved during any context switch from one thread to another. More... | |
| struct | CPU_Exception_frame |
| The set of registers that specifies the complete processor state. More... | |
Macros | |
| #define | CPU_INLINE_ENABLE_DISPATCH FALSE |
| #define | CPU_HAS_SOFTWARE_INTERRUPT_STACK TRUE |
| #define | CPU_HAS_HARDWARE_INTERRUPT_STACK FALSE |
| #define | CPU_ALLOCATE_INTERRUPT_STACK TRUE |
| #define | CPU_ISR_PASSES_FRAME_POINTER 1 |
| #define | CPU_HARDWARE_FP FALSE |
| #define | CPU_SOFTWARE_FP FALSE |
| #define | CPU_ALL_TASKS_ARE_FP FALSE |
| #define | CPU_IDLE_TASK_IS_FP FALSE |
| #define | CPU_USE_DEFERRED_FP_SWITCH TRUE |
| #define | CPU_PROVIDES_IDLE_THREAD_BODY TRUE |
| #define | CPU_STACK_GROWS_UP FALSE |
| #define | CPU_STRUCTURE_ALIGNMENT __attribute__ ((aligned (32))) |
| #define | CPU_HAS_OWN_HOST_TO_NETWORK_ROUTINES FALSE |
| #define | CPU_BIG_ENDIAN TRUE |
| #define | CPU_LITTLE_ENDIAN FALSE |
| #define | CPU_MODES_INTERRUPT_MASK 0x00000001 |
| #define | or1kreg uint32_t |
| #define | _CPU_Context_Get_SP(_context) (_context)->r1 |
| #define | CPU_CONTEXT_FP_SIZE 0 |
| #define | CPU_MPCI_RECEIVE_SERVER_EXTRA_STACK 0 |
| #define | CPU_STACK_MINIMUM_SIZE 4096 |
| #define | CPU_ALIGNMENT 8 |
| #define | CPU_PROVIDES_ISR_IS_IN_PROGRESS FALSE |
| #define | CPU_SIZEOF_POINTER 4 |
| Size of a pointer. More... | |
| #define | CPU_HEAP_ALIGNMENT CPU_ALIGNMENT |
| #define | CPU_PARTITION_ALIGNMENT CPU_ALIGNMENT |
| #define | CPU_STACK_ALIGNMENT 0 |
| #define | _CPU_Initialize_vectors() |
| #define | _CPU_ISR_Disable(_level) _level = or1k_interrupt_disable() |
| #define | _CPU_ISR_Enable(_level) or1k_interrupt_enable( _level ) |
| #define | _CPU_ISR_Flash(_level) |
| #define | OR1K_FAST_CONTEXT_SWITCH_ENABLED FALSE |
| #define | _CPU_Context_Restart_self(_the_context) _CPU_Context_restore( (_the_context) ); |
| #define | _CPU_Context_Fp_start(_base, _offset) ( (void *) _Addresses_Add_offset( (_base), (_offset) ) ) |
| #define | _CPU_Context_Initialize_fp(_destination) |
| #define | _CPU_Fatal_halt(_source, _error) |
| #define | CPU_USE_GENERIC_BITFIELD_CODE TRUE |
| #define | CPU_USE_GENERIC_BITFIELD_DATA TRUE |
| #define | _CPU_Bitfield_Find_first_bit(_value, _output) |
| #define | _CPU_Priority_Mask(_bit_number) (1 << _bit_number) |
| #define | _CPU_Priority_bits_index(_priority) (_priority) |
| #define | CPU_TIMESTAMP_USE_STRUCT_TIMESPEC FALSE |
| #define | CPU_TIMESTAMP_USE_INT64 TRUE |
| #define | CPU_TIMESTAMP_USE_INT64_INLINE FALSE |
| #define | CPU_SIZEOF_POINTER 4 |
| Size of a pointer. More... | |
| #define | CPU_PER_CPU_CONTROL_SIZE 0 |
| #define | CPU_swap_u16(value) (((value&0xff) << 8) | ((value >> 8)&0xff)) |
Typedefs | |
| typedef Context_Control | CPU_Interrupt_frame |
| typedef uint32_t | CPU_Counter_ticks |
| typedef uint16_t | Priority_bit_map_Word |
Functions | |
| void | _CPU_ISR_Set_level (uint32_t level) |
| Sets the interrupt level for the executing thread. More... | |
| uint32_t | _CPU_ISR_Get_level (void) |
| Return the current interrupt disable level for this task in the format used by the interrupt level portion of the task mode. More... | |
| void | _CPU_Context_Initialize (Context_Control *context, void *stack_area_begin, size_t stack_area_size, uint32_t new_level, void(*entry_point)(void), bool is_fp, void *tls_area) |
| Initializes the CPU context. More... | |
| void | _CPU_Exception_frame_print (const CPU_Exception_frame *frame) |
| Prints the exception frame via printk(). More... | |
| void | _CPU_Initialize (void) |
| CPU initialization. More... | |
| void | _CPU_ISR_install_raw_handler (uint32_t vector, proc_ptr new_handler, proc_ptr *old_handler) |
| This routine installs a "raw" interrupt handler directly into the processor's vector table. More... | |
| void | _CPU_ISR_install_vector (uint32_t vector, proc_ptr new_handler, proc_ptr *old_handler) |
| This routine installs an interrupt vector. More... | |
| void | _CPU_Install_interrupt_stack (void) |
| This routine installs the hardware interrupt stack pointer. More... | |
| void * | _CPU_Thread_Idle_body (uintptr_t ignored) |
| This routine is the CPU dependent IDLE thread body. More... | |
| void | _CPU_Context_switch (Context_Control *run, Context_Control *heir) |
| CPU switch context. More... | |
| void | _CPU_Context_restore (Context_Control *new_context) |
| This routine is generally used only to restart self in an efficient manner. More... | |
| void | _CPU_Context_save_fp (void **fp_context_ptr) |
| void | _CPU_Context_restore_fp (void **fp_context_ptr) |
| void | _CPU_Context_volatile_clobber (uintptr_t pattern) |
| Clobbers all volatile registers with values derived from the pattern parameter. More... | |
| void | _CPU_Context_validate (uintptr_t pattern) |
| Initializes and validates the CPU context with values derived from the pattern parameter. More... | |
| CPU_Counter_ticks | _CPU_Counter_read (void) |
| Returns the current CPU counter value. More... | |
| CPU_Counter_ticks | _CPU_Counter_difference (CPU_Counter_ticks second, CPU_Counter_ticks first) |
| Returns the difference between the second and first CPU counter value. More... | |
Variables | |
| SCORE_EXTERN Context_Control_fp | _CPU_Null_fp_context |
Macro Definition Documentation
◆ _CPU_Bitfield_Find_first_bit
| #define _CPU_Bitfield_Find_first_bit | ( | _value, | |
| _output | |||
| ) |
Value:
asm volatile ("l.mfspr %0,r0,0x2 \n\t"\
"l.andi %0,%0,0x60 \n\t"\
"l.ff1 %1,%1,r0 \n\t"\
"l.sub %0,%0,%1 \n\t" : "=&r" (_output), "+r" (_value));
◆ _CPU_Context_Initialize_fp
| #define _CPU_Context_Initialize_fp | ( | _destination | ) |
Value:
{ \
*(*(_destination)) = _CPU_Null_fp_context; \
}
SCORE_EXTERN Context_Control_fp _CPU_Null_fp_context
This variable is optional.
Definition: cpu.h:494
◆ _CPU_Fatal_halt
| #define _CPU_Fatal_halt | ( | _source, | |
| _error | |||
| ) |
◆ _CPU_ISR_Flash
| #define _CPU_ISR_Flash | ( | _level | ) |
Value:
do{ \
_CPU_ISR_Enable( _level ); \
_OR1K_mtspr(CPU_OR1K_SPR_SR, (_level & ~CPU_OR1K_SPR_SR_IEE)); \
} while(0)
◆ CPU_SIZEOF_POINTER [1/2]
| #define CPU_SIZEOF_POINTER 4 |
Size of a pointer.
This must be an integer literal that can be used by the assembler. This value will be used to calculate offsets of structure members. These offsets will be used in assembler code.
◆ CPU_SIZEOF_POINTER [2/2]
| #define CPU_SIZEOF_POINTER 4 |
Size of a pointer.
This must be an integer literal that can be used by the assembler. This value will be used to calculate offsets of structure members. These offsets will be used in assembler code.
