rtems-rfs-link.h File Reference

RTEMS File System Link Support. More...

#include <dirent.h>
#include <rtems/rfs/rtems-rfs-file-system.h>
#include <rtems/rfs/rtems-rfs-inode.h>

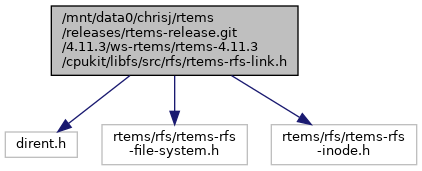

Include dependency graph for rtems-rfs-link.h:

Go to the source code of this file.

Typedefs
typedef enum rtems_rfs_unlink_dir_e	rtems_rfs_unlink_dir
	Directory unlink modes.

Enumerations
enum	rtems_rfs_unlink_dir_e { rtems_rfs_unlink_dir_denied, rtems_rfs_unlink_dir_if_empty, rtems_rfs_unlink_dir_allowed }
	Directory unlink modes. More...

Functions
int	rtems_rfs_link (rtems_rfs_file_system *fs, const char *name, int length, rtems_rfs_ino parent, rtems_rfs_ino target, bool link_dir)
	Create a link. More...
int	rtems_rfs_unlink (rtems_rfs_file_system *fs, rtems_rfs_ino parent, rtems_rfs_ino target, uint32_t doff, rtems_rfs_unlink_dir dir_mode)
	Unlink the node from the parent directory. More...
int	rtems_rfs_symlink (rtems_rfs_file_system *fs, const char *name, int length, const char *link, int link_length, uid_t uid, gid_t gid, rtems_rfs_ino parent)
	Symbolic link is an inode that has a path attached. More...
int	rtems_rfs_symlink_read (rtems_rfs_file_system *fs, rtems_rfs_ino link, char *path, size_t size, size_t *length)
	Read a symbolic link into the provided buffer returning the link of link name. More...

Detailed Description

RTEMS File System Link Support.

RTEMS File System Link Support

This file provides the link support functions.

Enumeration Type Documentation

rtems_rfs_unlink_dir_e

enum rtems_rfs_unlink_dir_e

Directory unlink modes.

Enumerator
rtems_rfs_unlink_dir_denied	Not allowed to unlink a directory.
rtems_rfs_unlink_dir_if_empty	Unlink if the directory is empty.
rtems_rfs_unlink_dir_allowed	Unlinking of directories is allowed.

Function Documentation

rtems_rfs_link()

int rtems_rfs_link	(	rtems_rfs_file_system *	fs,
		const char *	name,
		int	length,
		rtems_rfs_ino	parent,
		rtems_rfs_ino	target,
		bool	link_dir
	)

Create a link.

Do not link directories unless renaming or you will create loops in the file system.

Parameters

[in]	fs	is the file system.
[in]	name	is a pointer to the name of the link.
[in]	length	is the length of the name.
[in]	parent	is the inode number of the parent directory.
[in]	target	is the inode of the target.
[in]	link_dir	If true directories can be linked. Useful when renaming.

Return values

0	Successful operation.
error_code	An error occurred.

rtems_rfs_symlink()

int rtems_rfs_symlink	(	rtems_rfs_file_system *	fs,
		const char *	name,
		int	length,
		const char *	link,
		int	link_length,
		uid_t	uid,
		gid_t	gid,
		rtems_rfs_ino	parent
	)

Symbolic link is an inode that has a path attached.

Parameters

[in]	fs	is the file system data.
[in]	name	is a pointer to the name of the node.
[in]	length	is the length of the name of the node.
[in]	link	is a pointer to the link path attached to the symlink inode.
[in]	link_length	is the length of the link path.
[in]	parent	is the parent inode number.

Return values

0	Successful operation.
error_code	An error occurred.

rtems_rfs_symlink_read()

int rtems_rfs_symlink_read	(	rtems_rfs_file_system *	fs,
		rtems_rfs_ino	link,
		char *	path,
		size_t	size,
		size_t *	length
	)

Read a symbolic link into the provided buffer returning the link of link name.

Parameters

[in]	fs	is the file system data.
[in]	link	is the link inode number to read.
[in]	path	is a pointer to the buffer to write the link path into.
[in]	size	is the size of the buffer.
[out]	length	will contain the length of the link path.

Return values

0	Successful operation.
error_code	An error occurred.

rtems_rfs_unlink()

int rtems_rfs_unlink	(	rtems_rfs_file_system *	fs,
		rtems_rfs_ino	parent,
		rtems_rfs_ino	target,
		uint32_t	doff,
		rtems_rfs_unlink_dir	dir_mode
	)

Unlink the node from the parent directory.

A directory offset for the target entry is required because links cause a number of inode numbers to appear in a single directory so scanning does not work.

Parameters

[in]	fs	is the file system.
[in]	parent	is the inode number of the parent directory.
[in]	target	is the inode of the target.
[in]	doff	is the parent directory entry offset for the target entry.
[in]	dir_mode	is the directory unlink mode.

Return values

0	Successful operation.
error_code	An error occurred.
