RTEMS File System Information Node. More...

#include <sys/stat.h>
#include <rtems/rfs/rtems-rfs-data.h>
#include <rtems/rfs/rtems-rfs-file-system.h>

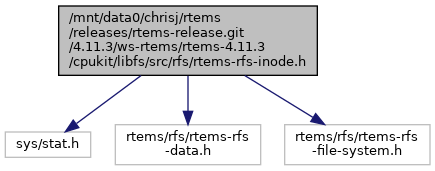

Include dependency graph for rtems-rfs-inode.h:

Data Structures
struct	_rtems_rfs_inode
	The inode. More...

struct	_rtems_rfs_inode_handle
	RFS Inode Handle. More...

Macros
#define	RTEMS_RFS_S_ISUID S_ISUID
	The RFS mode definitions. More...

#define	RTEMS_RFS_S_ISGID S_ISGID
	Set group id on execution.

#define	RTEMS_RFS_S_ISVTX S_ISVTX
	Save swapped text even after use.

#define	RTEMS_RFS_S_IREAD S_IREAD
	Read permission, owner.

#define	RTEMS_RFS_S_IWRITE S_IWRITE
	Write permission, owner.

#define	RTEMS_RFS_S_IEXEC S_IEXEC
	Execute/search permission, owner.

#define	RTEMS_RFS_S_ENFMT S_ENFMT
	Enforcement-mode locking.

#define	RTEMS_RFS_S_IFMT S_IFMT
	Type of file.

#define	RTEMS_RFS_S_IFDIR S_IFDIR
	Directory.

#define	RTEMS_RFS_S_IFCHR S_IFCHR
	Character special.

#define	RTEMS_RFS_S_IFBLK S_IFBLK
	Block special.

#define	RTEMS_RFS_S_IFREG S_IFREG
	Regular.

#define	RTEMS_RFS_S_IFLNK S_IFLNK
	Symbolic link.

#define	RTEMS_RFS_S_IFSOCK S_IFSOCK
	Socket.

#define	RTEMS_RFS_S_IFIFO S_IFIFO
	Fifo.

#define	RTEMS_RFS_S_IRWXU S_IRWXU

#define	RTEMS_RFS_S_IRUSR S_IRUSR
	Read permission, owner.

#define	RTEMS_RFS_S_IWUSR S_IWUSR
	Write permission, owner.

#define	RTEMS_RFS_S_IXUSR S_IXUSR
	Execute/search permission, owner.

#define	RTEMS_RFS_S_IRWXG S_IRWXG

#define	RTEMS_RFS_S_IRGRP S_IRGRP
	Read permission, group.

#define	RTEMS_RFS_S_IWGRP S_IWGRP
	Write permission, grougroup.

#define	RTEMS_RFS_S_IXGRP S_IXGRP
	Execute/search permission, group.

#define	RTEMS_RFS_S_IRWXO S_IRWXO

#define	RTEMS_RFS_S_IROTH S_IROTH
	Read permission, other.

#define	RTEMS_RFS_S_IWOTH S_IWOTH
	Write permission, other.

#define	RTEMS_RFS_S_IXOTH S_IXOTH
	Execute/search permission, other.

#define	RTEMS_RFS_S_ISBLK(m) S_ISBLK(m)

#define	RTEMS_RFS_S_ISCHR(m) S_ISCHR(m)

#define	RTEMS_RFS_S_ISDIR(m) S_ISDIR(m)

#define	RTEMS_RFS_S_ISFIFO(m) S_ISFIFO(m)

#define	RTEMS_RFS_S_ISREG(m) S_ISREG(m)

#define	RTEMS_RFS_S_ISLNK(m) S_ISLNK(m)

#define	RTEMS_RFS_S_ISSOCK(m) S_ISSOCK(m)

#define	RTEMS_RFS_S_SYMLINK RTEMS_RFS_S_IFLNK \| RTEMS_RFS_S_IRWXU \| RTEMS_RFS_S_IRWXG \| RTEMS_RFS_S_IRWXO
	Permissions of a symlink.

#define	RTEMS_RFS_INODE_DATA_NAME_SIZE (RTEMS_RFS_INODE_BLOCKS * sizeof (rtems_rfs_inode_block))
	The size of the data name field in the inode.

#define	RTEMS_RFS_INODE_SIZE (sizeof (rtems_rfs_inode))
	The size of an inode.

#define	rtems_rfs_inode_is_loaded(_h) ((_h)->node)
	Is the inode loaded ?

#define	rtems_rfs_inode_ino(_h) ((_h)->ino)
	Get the inode ino for a handle.

Typedefs
typedef uint32_t	rtems_rfs_ino
	The inode number or ino.

typedef uint32_t	rtems_rfs_time
	The time in the file system.

typedef uint32_t	rtems_rfs_inode_block
	The size of a block value on disk. More...

typedef struct _rtems_rfs_inode	rtems_rfs_inode
	The inode.

typedef struct _rtems_rfs_inode_handle	rtems_rfs_inode_handle
	RFS Inode Handle.

Functions
int	rtems_rfs_inode_alloc (rtems_rfs_file_system fs, rtems_rfs_bitmap_bit goal, rtems_rfs_ino ino)
	Allocate an inode number and return it. More...

int	rtems_rfs_inode_free (rtems_rfs_file_system *fs, rtems_rfs_ino ino)
	Free an inode. More...

int	rtems_rfs_inode_open (rtems_rfs_file_system fs, rtems_rfs_ino ino, rtems_rfs_inode_handle handle, bool load)
	Open the inode handle. More...

int	rtems_rfs_inode_close (rtems_rfs_file_system fs, rtems_rfs_inode_handle handle)
	The close inode handle. More...

int	rtems_rfs_inode_load (rtems_rfs_file_system fs, rtems_rfs_inode_handle handle)
	Load the inode into memory. More...

int	rtems_rfs_inode_unload (rtems_rfs_file_system fs, rtems_rfs_inode_handle handle, bool update_ctime)
	Unload the inode from memory. More...

int	rtems_rfs_inode_create (rtems_rfs_file_system fs, rtems_rfs_ino parent, const char name, size_t length, uint16_t mode, uint16_t links, uid_t uid, gid_t gid, rtems_rfs_ino *ino)
	Create an inode allocating, initialising and adding an entry to the parent directory. More...

int	rtems_rfs_inode_delete (rtems_rfs_file_system fs, rtems_rfs_inode_handle handle)
	Delete the inode eraseing it and release the buffer to commit the write. More...

int	rtems_rfs_inode_initialise (rtems_rfs_inode_handle *handle, uint16_t links, uint16_t mode, uid_t uid, gid_t gid)
	Initialise a new inode. More...

int	rtems_rfs_inode_time_stamp_now (rtems_rfs_inode_handle *handle, bool atime, bool mtime)
	Time stamp the inode with the current time. More...

rtems_rfs_pos	rtems_rfs_inode_get_size (rtems_rfs_file_system fs, rtems_rfs_inode_handle handle)
	Calculate the size of data attached to the inode. More...

Detailed Description

RTEMS File System Information Node.

The information nodes hold the data about all nodes in the file system.

Macro Definition Documentation

◆ RTEMS_RFS_S_ISUID

#define RTEMS_RFS_S_ISUID S_ISUID

The RFS mode definitions.

Currently map to the C library ones.Set user id on execution

Typedef Documentation

◆ rtems_rfs_inode_block

typedef uint32_t rtems_rfs_inode_block

The size of a block value on disk.

This include the inodes and indirect tables.

Function Documentation

◆ rtems_rfs_inode_alloc()

int rtems_rfs_inode_alloc	(	rtems_rfs_file_system *	fs,
		rtems_rfs_bitmap_bit	goal,
		rtems_rfs_ino *	ino
	)

Allocate an inode number and return it.

Parameters

[in]	fs	is the file system data.
[out]	ino	will contain the ino.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_close()

int rtems_rfs_inode_close	(	rtems_rfs_file_system *	fs,
		rtems_rfs_inode_handle *	handle
	)

The close inode handle.

All opened inodes need to be closed.

Parameters

[in]	fs	is the file system.
[in]	handle	is the handle to close.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_create()

int rtems_rfs_inode_create	(	rtems_rfs_file_system *	fs,
		rtems_rfs_ino	parent,
		const char *	name,
		size_t	length,
		uint16_t	mode,
		uint16_t	links,
		uid_t	uid,
		gid_t	gid,
		rtems_rfs_ino *	ino
	)

Create an inode allocating, initialising and adding an entry to the parent directory.

Parameters

[in]	fs	is the file system data.
[in]	parent	is the parent inode number to add the directory entry to.
[in]	name	is a pointer to the name of the directory entryinode to create.

◆ rtems_rfs_inode_delete()

int rtems_rfs_inode_delete	(	rtems_rfs_file_system *	fs,
		rtems_rfs_inode_handle *	handle
	)

Delete the inode eraseing it and release the buffer to commit the write.

You need to load the inode again if you wish to use it again.

Parameters

[in]	fs	is the file system.
[in]	handle	is the inode handle to erase.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_free()

int rtems_rfs_inode_free	(	rtems_rfs_file_system *	fs,
		rtems_rfs_ino	ino
	)

Free an inode.

Parameters

[in]	fs	is the file system data.
[in]	ino	is the ino too free.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_get_size()

rtems_rfs_pos rtems_rfs_inode_get_size	(	rtems_rfs_file_system *	fs,
		rtems_rfs_inode_handle *	handle
	)

Calculate the size of data attached to the inode.

Parameters

[in]	fs	is the file system data.
[in]	handle	is the inode handle.

Return values

size	The data size in bytes in the block map attched to the inode.

◆ rtems_rfs_inode_initialise()

int rtems_rfs_inode_initialise	(	rtems_rfs_inode_handle *	handle,
		uint16_t	links,
		uint16_t	mode,
		uid_t	uid,
		gid_t	gid
	)

Initialise a new inode.

Parameters

[in]	handle	is the inode handle to initialise.
[in]	links	are the number of links to the inode.
[in]	mode	is the inode mode.
[in]	uid	is the user id.
[in]	gid	is the group id.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_load()

int rtems_rfs_inode_load	(	rtems_rfs_file_system *	fs,
		rtems_rfs_inode_handle *	handle
	)

Load the inode into memory.

Parameters

[in]	fs	is the file system.
[in]	handle	is the inode handle to load.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_open()

int rtems_rfs_inode_open	(	rtems_rfs_file_system *	fs,
		rtems_rfs_ino	ino,
		rtems_rfs_inode_handle *	handle,
		bool	load
	)

Open the inode handle.

This reads the inode into the buffer and sets the data pointer. All data is in media byte order and needs to be accessed via the supporting calls.

Parameters

[in]	fs	is the file system.
[in]	ino	is the inode number.
[in]	handle	is the handle to the inode we are opening.
[in]	load	If true load the inode into memory from the media.

Return values

0	Successful operation.
error_code	An error occurred.

◆ rtems_rfs_inode_time_stamp_now()

int rtems_rfs_inode_time_stamp_now	(	rtems_rfs_inode_handle *	handle,
		bool	atime,
		bool	mtime
	)

Time stamp the inode with the current time.

The ctime field is hanlded automatically.

Parameters

[in]	handle	is the inode handle.
[in]	atime	Update the atime field.
[in]	mtime	UPdate the mtime field.

Return values

0	Successful operation.
ENXIO	No inode is loaded.
error_code	An error occurred.

◆ rtems_rfs_inode_unload()

int rtems_rfs_inode_unload	(	rtems_rfs_file_system *	fs,
		rtems_rfs_inode_handle *	handle,
		bool	update_ctime
	)

Unload the inode from memory.

Parameters

[in]	fs	is the file system.
[in]	handle	is the inode handle to unload.
[in]	update_ctime	Update the ctime field of the inode.

Return values

0	Successful operation.
error_code	An error occurred.
