Provides CPU architecture dependent services. More...

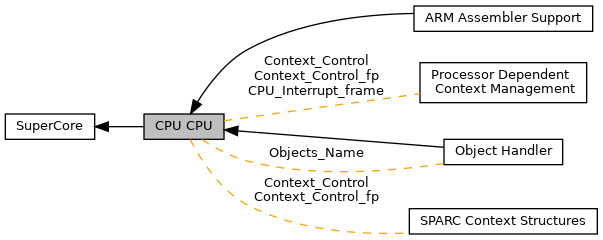

Collaboration diagram for CPU CPU:

Modules
	ARM Assembler Support
	ARM Assembler Support.

	Object Handler

Files
file	arm_exc_handler_high.c
	ARM exception support implementation.

file	cpu.c
	ARM architecture support implementation.

file	cpu_asm.h
	ARM Assembler Support API.

file	epiphany-utility.h
	This include file contains macros pertaining to the Epiphany processor family.

file	objectshrinkinformation.c
	Shrink an Object Class Information Record.

Data Structures
struct	Context_Control
	This defines the minimal set of integer and processor state registers that must be saved during a voluntary context switch from one thread to another. More...

struct	Context_Control_fp
	This defines the complete set of floating point registers that must be saved during any context switch from one thread to another. More...

struct	CPU_Interrupt_frame
	This defines the set of integer and processor state registers that must be saved during an interrupt. More...

union	Objects_Name
	The following type defines the control block used to manage object names. More...

Macros
#define	CPU_MODEL_NAME "ARMv4"

#define	ARM_MULTILIB_ARCH_V4

#define	CPU_NAME "ARM"

#define	CPU_INLINE_ENABLE_DISPATCH TRUE

#define	CPU_SIMPLE_VECTORED_INTERRUPTS FALSE

#define	CPU_HAS_SOFTWARE_INTERRUPT_STACK FALSE

#define	CPU_HAS_HARDWARE_INTERRUPT_STACK FALSE

#define	CPU_ALLOCATE_INTERRUPT_STACK FALSE

#define	CPU_ISR_PASSES_FRAME_POINTER 0

#define	CPU_HARDWARE_FP FALSE

#define	CPU_SOFTWARE_FP FALSE

#define	CPU_ALL_TASKS_ARE_FP FALSE

#define	CPU_IDLE_TASK_IS_FP FALSE

#define	CPU_USE_DEFERRED_FP_SWITCH FALSE

#define	CPU_PROVIDES_IDLE_THREAD_BODY FALSE

#define	CPU_STACK_GROWS_UP FALSE

#define	CPU_STRUCTURE_ALIGNMENT __attribute__ ((aligned ( 32 )))

#define	CPU_TIMESTAMP_USE_STRUCT_TIMESPEC TRUE

#define	CPU_MODES_INTERRUPT_MASK 0x1

#define	CPU_CONTEXT_FP_SIZE sizeof( Context_Control_fp )

#define	CPU_MPCI_RECEIVE_SERVER_EXTRA_STACK 0

#define	CPU_PROVIDES_ISR_IS_IN_PROGRESS FALSE

#define	CPU_STACK_MINIMUM_SIZE (1024 * 4)

#define	CPU_SIZEOF_POINTER 4

#define	CPU_ALIGNMENT 8

#define	CPU_HEAP_ALIGNMENT CPU_ALIGNMENT

#define	CPU_PARTITION_ALIGNMENT 4

#define	CPU_STACK_ALIGNMENT 8

#define	CPU_USE_GENERIC_BITFIELD_CODE TRUE

#define	CPU_USE_GENERIC_BITFIELD_DATA TRUE

#define	CPU_PER_CPU_CONTROL_SIZE 0

#define	_CPU_ISR_Disable(_isr_cookie)

#define	_CPU_ISR_Enable(_isr_cookie) arm_interrupt_enable( _isr_cookie )

#define	_CPU_ISR_Flash(_isr_cookie) arm_interrupt_flash( _isr_cookie )

#define	_CPU_Context_Get_SP(_context) (_context)->register_sp

#define	_CPU_Context_Restart_self(_the_context) _CPU_Context_restore( (_the_context) );

#define	_CPU_Context_Fp_start(_base, _offset) ( (void *) _Addresses_Add_offset( (_base), (_offset) ) )

#define	_CPU_Context_Initialize_fp(_destination)

#define	_CPU_Fatal_halt(_source, _err)

#define	CPU_INLINE_ENABLE_DISPATCH FALSE

#define	CPU_HAS_SOFTWARE_INTERRUPT_STACK FALSE

#define	CPU_SIMPLE_VECTORED_INTERRUPTS FALSE

#define	CPU_HAS_HARDWARE_INTERRUPT_STACK FALSE

#define	CPU_ALLOCATE_INTERRUPT_STACK FALSE

#define	CPU_ISR_PASSES_FRAME_POINTER 1

#define	CPU_HARDWARE_FP FALSE

#define	CPU_ALL_TASKS_ARE_FP CPU_HARDWARE_FP

#define	CPU_IDLE_TASK_IS_FP FALSE

#define	CPU_USE_DEFERRED_FP_SWITCH TRUE

#define	CPU_PROVIDES_IDLE_THREAD_BODY TRUE

#define	CPU_STACK_GROWS_UP FALSE

#define	CPU_STRUCTURE_ALIGNMENT

#define	CPU_TIMESTAMP_USE_INT64_INLINE TRUE

#define	CPU_MODES_INTERRUPT_MASK 0x000000ff

#define	CPU_SIZEOF_POINTER 4

#define	CPU_PER_CPU_CONTROL_SIZE 0

#define	_CPU_Context_Get_SP(_context) (uintptr_t) (_context)->sp

#define	CPU_CONTEXT_FP_SIZE sizeof( Context_Control_fp )

#define	CPU_MPCI_RECEIVE_SERVER_EXTRA_STACK 0

#define	CPU_STACK_MINIMUM_SIZE (8 * 1024)

#define	CPU_ALIGNMENT 8

#define	CPU_HEAP_ALIGNMENT CPU_ALIGNMENT

#define	CPU_PARTITION_ALIGNMENT CPU_ALIGNMENT

#define	CPU_STACK_ALIGNMENT CPU_ALIGNMENT

#define	_CPU_ISR_Disable(_level)

#define	_CPU_ISR_Enable(_level)

#define	_CPU_ISR_Flash(_xlevel)

#define	_CPU_Context_Restart_self(_the_context) _CPU_Context_restore( (_the_context) );

#define	_CPU_Context_Fp_start(_base, _offset) ( (void *) _Addresses_Add_offset( (_base), (_offset) ) )

#define	_CPU_Context_Initialize_fp(_destination)

#define	_CPU_Fatal_halt(_source, _error)

#define	CPU_USE_GENERIC_BITFIELD_CODE TRUE

#define	CPU_USE_GENERIC_BITFIELD_DATA TRUE

#define	_CPU_Bitfield_Find_first_bit(_value, _output)

#define	_CPU_Priority_Mask(_bit_number) ( 1 << (_bit_number) )

#define	_CPU_Priority_bits_index(_priority) (_priority)

#define	CPU_swap_u16(value) (((value&0xff) << 8) \| ((value >> 8)&0xff))

Typedefs
typedef uint32_t	CPU_Counter_ticks

typedef uintptr_t	CPU_Uint32ptr
	Type that can store a 32-bit integer or a pointer. More...

typedef uint16_t	Priority_bit_map_Word

typedef uintptr_t	CPU_Uint32ptr
	Type that can store a 32-bit integer or a pointer. More...

typedef uint16_t	Priority_bit_map_Word

typedef void	epiphany_isr

typedef void(*	epiphany_isr_entry) (void)

typedef CPU_Interrupt_frame	CPU_Exception_frame

typedef uint32_t	CPU_Counter_ticks

typedef uintptr_t	CPU_Uint32ptr
	Type that can store a 32-bit integer or a pointer. More...

typedef uint16_t	Priority_bit_map_Word

typedef void	or1k_isr

typedef void(*	or1k_isr_entry) (void)

Functions
void	_CPU_ISR_Set_level (uint32_t level)
	Sets the hardware interrupt level by the level value. More...

void	_CPU_Context_Initialize (Context_Control the_context, void stack_area_begin, size_t stack_area_size, uint32_t new_level, void(entry_point)(void), bool is_fp, void tls_area)

void	_CPU_Initialize (void)
	CPU initialization. More...

CPU_Counter_ticks	_CPU_Counter_read (void)

CPU_Counter_ticks	_CPU_Counter_difference (CPU_Counter_ticks second, CPU_Counter_ticks first)
	Returns the difference between the second and first CPU counter value. More...

void *	_CPU_Thread_Idle_body (uintptr_t ignored)

void	mips_vector_exceptions (CPU_Interrupt_frame *frame)

uint32_t	mips_interrupt_mask (void)

void	_CPU_Context_Initialize (Context_Control the_context, uintptr_t stack_base, uint32_t size, uint32_t new_level, void entry_point, bool is_fp, void tls_area)

void	mips_break (int error)

void	_CPU_ISR_install_raw_handler (uint32_t vector, proc_ptr new_handler, proc_ptr *old_handler)
	This routine installs a "raw" interrupt handler directly into the processor's vector table. More...

void	_CPU_Install_interrupt_stack (void)
	This routine installs the hardware interrupt stack pointer. More...

void	_CPU_Context_save_fp (Context_Control_fp **fp_context_ptr)
	This routine saves the floating point context passed to it. More...

void	_CPU_Context_restore_fp (Context_Control_fp **fp_context_ptr)
	This routine restores the floating point context passed to it. More...

void	_CPU_Exception_frame_print (const CPU_Exception_frame *frame)
	Prints the exception frame via printk(). More...

Variables
uint32_t	arm_cpu_mode

SCORE_EXTERN Context_Control_fp	_CPU_Null_fp_context

Detailed Description

Provides CPU architecture dependent services.

Macro Definition Documentation

◆ _CPU_Bitfield_Find_first_bit

#define _CPU_Bitfield_Find_first_bit	(	_value,
		_output
	)

Value:

{ \
    (_output) = 0;   /* do something to prevent warnings */ \
  }

◆ _CPU_Context_Initialize_fp [1/2]

#define _CPU_Context_Initialize_fp ( _destination )

Value:

do { \
    *(*(_destination)) = _CPU_Null_fp_context; \
  } while (0)

◆ _CPU_Context_Initialize_fp [2/2]

#define _CPU_Context_Initialize_fp ( _destination )

Value:

{ \
   *(*(_destination)) = _CPU_Null_fp_context; \
  }

◆ _CPU_Fatal_halt [1/2]

#define _CPU_Fatal_halt	(	_source,
		_err
	)

Value:

do {                                     \
     uint32_t _level;                       \
     uint32_t _error = _err;                \
     _CPU_ISR_Disable( _level );            \
     (void) _level;                         \
     __asm__ volatile ("mov r0, %0\n"       \
                   : "=r" (_error)          \
                   : "0" (_error)           \
                   : "r0" );                \
     while (1);                             \
   } while (0);

◆ _CPU_Fatal_halt [2/2]

#define _CPU_Fatal_halt	(	_source,
		_error
	)

Value:

do { \
    unsigned int _level; \
    _CPU_ISR_Disable(_level); \
    (void)_level; \
    loop: goto loop; \
  } while (0)

◆ _CPU_ISR_Disable [1/2]

#define _CPU_ISR_Disable ( _isr_cookie )

Value:

do { \
    _isr_cookie = arm_interrupt_disable(); \
  } while (0)

◆ _CPU_ISR_Disable [2/2]

#define _CPU_ISR_Disable ( _level )

Value:

do { \
    unsigned int _scratch; \
    mips_get_sr( _scratch ); \
    mips_set_sr( _scratch & ~SR_INTERRUPT_ENABLE_BITS ); \
    _level = _scratch & SR_INTERRUPT_ENABLE_BITS; \
  } while(0)

◆ _CPU_ISR_Enable

#define _CPU_ISR_Enable ( _level )

Value:

do { \
    unsigned int _scratch; \
    mips_get_sr( _scratch ); \
    mips_set_sr( (_scratch & ~SR_INTERRUPT_ENABLE_BITS) | (_level & SR_INTERRUPT_ENABLE_BITS) ); \
  } while(0)

◆ _CPU_ISR_Flash

#define _CPU_ISR_Flash ( _xlevel )

Value:

do { \
    unsigned int _scratch2 = _xlevel; \
    _CPU_ISR_Enable( _scratch2 ); \
    _CPU_ISR_Disable( _scratch2 ); \
    _xlevel = _scratch2; \
  } while(0)

Typedef Documentation

◆ CPU_Uint32ptr [1/3]

typedef uintptr_t CPU_Uint32ptr

Type that can store a 32-bit integer or a pointer.

◆ CPU_Uint32ptr [2/3]

typedef uintptr_t CPU_Uint32ptr

Type that can store a 32-bit integer or a pointer.

◆ CPU_Uint32ptr [3/3]

typedef uintptr_t CPU_Uint32ptr

Type that can store a 32-bit integer or a pointer.

Function Documentation

◆ _CPU_Context_restore_fp()

void _CPU_Context_restore_fp ( Context_Control_fp ** fp_context_ptr )

This routine restores the floating point context passed to it.

Parameters

[in] fp_context_ptr is a pointer to a pointer to a floating point context area to restore

Returns: on output *fp_context_ptr will contain the address that should be used with _CPU_Context_save_fp to save this context.

Port Specific Information:

XXX document implementation including references if appropriate

◆ _CPU_Context_save_fp()

void _CPU_Context_save_fp ( Context_Control_fp ** fp_context_ptr )

This routine saves the floating point context passed to it.

Parameters

[in] fp_context_ptr is a pointer to a pointer to a floating point context area

Returns: on output *fp_context_ptr will contain the address that should be used with _CPU_Context_restore_fp to restore this context.

Port Specific Information:

XXX document implementation including references if appropriate

◆ _CPU_Counter_difference()

static CPU_Counter_ticks _CPU_Counter_difference	(	CPU_Counter_ticks	second,
		CPU_Counter_ticks	first
	)

inline

Returns the difference between the second and first CPU counter value.

This operation may be carried out as a modulo operation depending on the range of the CPU counter device.

Parameters

[in]	second	The second CPU counter value.
[in]	first	The first CPU counter value.

Returns: Returns second minus first modulo counter period.

◆ _CPU_Exception_frame_print()

void _CPU_Exception_frame_print ( const CPU_Exception_frame * frame )

Prints the exception frame via printk().

This method prints the CPU exception frame.

See also: rtems_fatal() and RTEMS_FATAL_SOURCE_EXCEPTION.

◆ _CPU_Initialize()

void _CPU_Initialize ( void )

CPU initialization.

◆ _CPU_Install_interrupt_stack()

void _CPU_Install_interrupt_stack ( void )

This routine installs the hardware interrupt stack pointer.

NOTE: It need only be provided if CPU_HAS_HARDWARE_INTERRUPT_STACK is TRUE.

Port Specific Information:

XXX document implementation including references if appropriate

◆ _CPU_ISR_install_raw_handler()

void _CPU_ISR_install_raw_handler	(	uint32_t	vector,
		proc_ptr	new_handler,
		proc_ptr *	old_handler
	)

This routine installs a "raw" interrupt handler directly into the processor's vector table.

Parameters

[in]	vector	is the vector number
[in]	new_handler	is the raw ISR handler to install
[in]	old_handler	is the previously installed ISR Handler

Port Specific Information:

XXX document implementation including references if appropriate

◆ _CPU_ISR_Set_level()

void _CPU_ISR_Set_level ( uint32_t level )

Sets the hardware interrupt level by the level value.

Parameters

[in] level for or1k can only range over two values: 0 (enable interrupts) and 1 (disable interrupts). In future implementations if fast context switch is implemented, the level can range from 0 to 15.

See also: OpenRISC architecture manual.

Modules

Files

Data Structures

Macros

Typedefs

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ _CPU_Bitfield_Find_first_bit

◆ _CPU_Context_Initialize_fp [1/2]

◆ _CPU_Context_Initialize_fp [2/2]

◆ _CPU_Fatal_halt [1/2]

◆ _CPU_Fatal_halt [2/2]

◆ _CPU_ISR_Disable [1/2]

◆ _CPU_ISR_Disable [2/2]

◆ _CPU_ISR_Enable

◆ _CPU_ISR_Flash

Typedef Documentation

◆ CPU_Uint32ptr [1/3]

◆ CPU_Uint32ptr [2/3]

◆ CPU_Uint32ptr [3/3]

Function Documentation

◆ _CPU_Context_restore_fp()

◆ _CPU_Context_save_fp()

◆ _CPU_Counter_difference()

◆ _CPU_Exception_frame_print()

◆ _CPU_Initialize()

◆ _CPU_Install_interrupt_stack()

◆ _CPU_ISR_install_raw_handler()

◆ _CPU_ISR_Set_level()
