rtl-elf.h File Reference

RTEMS Run-Time Linker ELF Headers. More...

#include "rtl-fwd.h"
#include "rtl-obj-fwd.h"
#include "rtl-sym.h"
#include <sys/cdefs.h>
#include <sys/exec_elf.h>

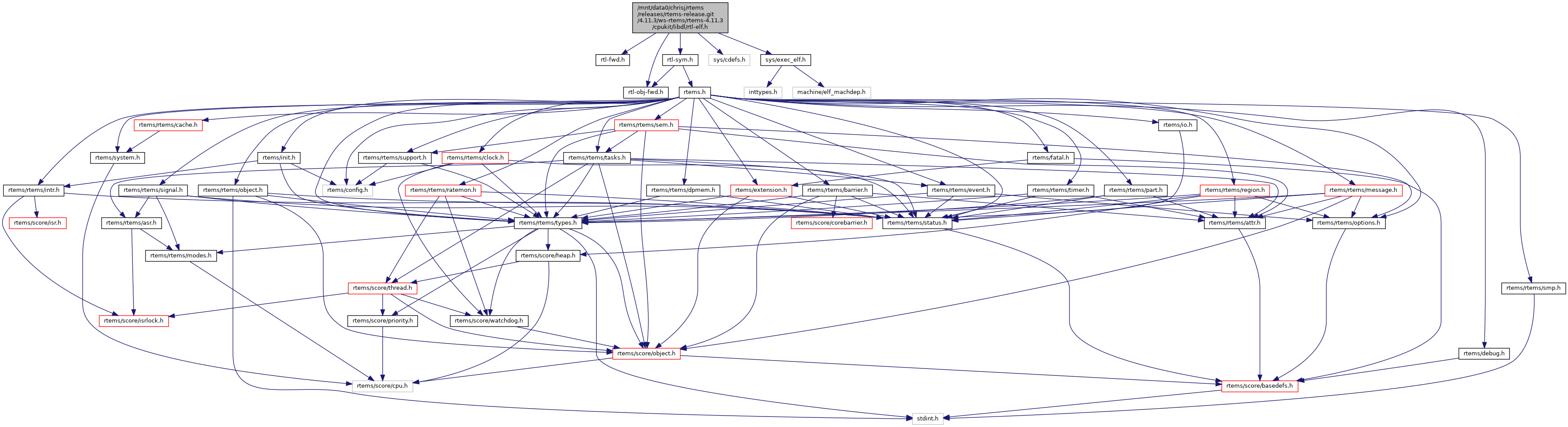

Include dependency graph for rtl-elf.h:

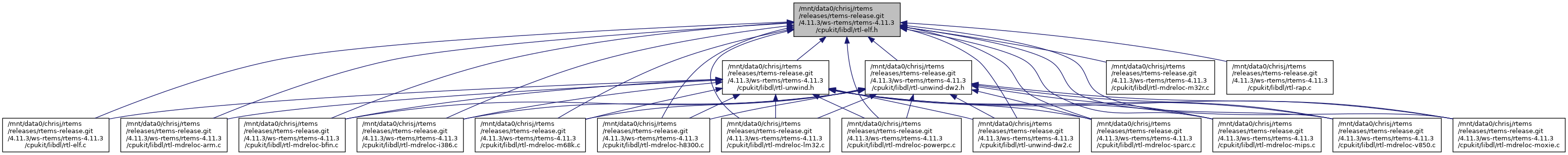

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ELFSIZE   32
	Imported NetBSD ELF Specifics Start.
#define	_STANDALONE   1
#define	RTEMS_RTL_ELF_STRING_MAX   (256)
	Imported NetBSD ELF Specifics End. More...

Functions
uint32_t	rtems_rtl_elf_section_flags (const rtems_rtl_obj_t *obj, const Elf_Shdr *shdr)
	Architecture specific handler to translate unknown section flags to RTL section flags. More...
bool	rtems_rtl_elf_rel_resolve_sym (Elf_Word type)
	Architecture specific handler to check is a relocation record's type is required to resolve a symbol. More...
bool	rtems_rtl_elf_relocate_rel (const rtems_rtl_obj_t *obj, const Elf_Rel *rel, const rtems_rtl_obj_sect_t *sect, const char *symname, const Elf_Byte syminfo, const Elf_Word symvalue)
	Architecture specific relocation handler compiled in for a specific architecture by the build system. More...
bool	rtems_rtl_elf_relocate_rela (const rtems_rtl_obj_t *obj, const Elf_Rela *rela, const rtems_rtl_obj_sect_t *sect, const char *symname, const Elf_Byte syminfo, const Elf_Word symvalue)
	Architecture specific relocation handler compiled in for a specific architecture by the build system. More...
bool	rtems_rtl_elf_find_symbol (rtems_rtl_obj_t *obj, const Elf_Sym *sym, const char *symname, Elf_Word *value)
	Find the symbol. More...
bool	rtems_rtl_elf_file_check (rtems_rtl_obj_t *obj, int fd)
	The ELF format check handler. More...
bool	rtems_rtl_elf_file_load (rtems_rtl_obj_t *obj, int fd)
	The ELF format load handler. More...
bool	rtems_rtl_elf_file_unload (rtems_rtl_obj_t *obj)
	The ELF format unload handler. More...
rtems_rtl_loader_format_t *	rtems_rtl_elf_file_sig (void)
	The ELF format signature handler. More...

Detailed Description

RTEMS Run-Time Linker ELF Headers.

Macro Definition Documentation

RTEMS_RTL_ELF_STRING_MAX

#define RTEMS_RTL_ELF_STRING_MAX   (256)

Imported NetBSD ELF Specifics End.

Maximum string length. This a read buffering limit rather than a specific ELF length. I hope this is ok as I am concerned about some C++ symbol lengths.

Function Documentation

rtems_rtl_elf_file_check()

bool rtems_rtl_elf_file_check	(	rtems_rtl_obj_t *	obj,
		int	fd
	)

The ELF format check handler.

Parameters

obj	The object being checked.
fd	The file descriptor.

References rtems_rtl_obj_s::ooffset, rtems_rtl_obj_cache_read_byval(), and rtems_rtl_obj_caches().

rtems_rtl_elf_file_load()

bool rtems_rtl_elf_file_load	(	rtems_rtl_obj_t *	obj,
		int	fd
	)

The ELF format load handler.

Parameters

obj	The object to load.
fd	The file descriptor.

References rtems_rtl_obj_s::ooffset, rtems_rtl_obj_cache_read_byval(), and rtems_rtl_obj_caches().

rtems_rtl_elf_file_sig()

rtems_rtl_loader_format_t* rtems_rtl_elf_file_sig

(

void

)

The ELF format signature handler.

Returns

rtems_rtl_loader_format_t* The format's signature.

rtems_rtl_elf_file_unload()

bool rtems_rtl_elf_file_unload

(

rtems_rtl_obj_t *

obj

)

The ELF format unload handler.

Parameters

obj	The object to unload.

References rtems_rtl_elf_unwind_deregister().

rtems_rtl_elf_find_symbol()

bool rtems_rtl_elf_find_symbol	(	rtems_rtl_obj_t *	obj,
		const Elf_Sym *	sym,
		const char *	symname,
		Elf_Word *	value
	)

Find the symbol.

The symbol is passed as an ELF type symbol with the name and the value returned is the absolute address of the symbol.

If the symbol type is STT_NOTYPE the symbol references a global symbol. The gobal symbol table is searched to find it and that value returned. If the symbol is local to the object module the section for the symbol is located and it's base added to the symbol's value giving an absolute location.

Parameters

obj	The object the symbol is being resolved for.
sym	The ELF type symbol.
symname	The sym's name read from the symbol string table.
value	Return the value of the symbol. Only valid if the return value is true.

Return values

true	The symbol resolved.
false	The symbol could not be result. The RTL error is set.

rtems_rtl_elf_rel_resolve_sym()

bool rtems_rtl_elf_rel_resolve_sym

(

Elf_Word

type

)

Architecture specific handler to check is a relocation record's type is required to resolve a symbol.

Parameters

type	The type field in the relocation record.

Return values

true	The relocation record require symbol resolution.
false	The relocation record does not require symbol resolution.

References rtems_rtl_elf_relocate_rela().

Referenced by rtems_rtl_elf_section_flags().

rtems_rtl_elf_relocate_rel()

bool rtems_rtl_elf_relocate_rel	(	const rtems_rtl_obj_t *	obj,
		const Elf_Rel *	rel,
		const rtems_rtl_obj_sect_t *	sect,
		const char *	symname,
		const Elf_Byte	syminfo,
		const Elf_Word	symvalue
	)

Architecture specific relocation handler compiled in for a specific architecture by the build system.

The handler applies the relocation to the target.

Parameters

obj	The object file being relocated.
rel	The ELF relocation record.
sect	The section of the object file the relocation is for.
symname	The symbol's name.
syminfo	The ELF symbol info field.
symvalue	If a symbol is referenced, this is the symbols value.

Return values

bool	The relocation has been applied.
bool	The relocation could not be applied.

References rtems_rtl_obj_sect_s::base, rtems_rtl_elf_unwind_parse(), and rtems_rtl_set_error().

Referenced by rtems_rtl_elf_relocate_rela().

rtems_rtl_elf_relocate_rela()

bool rtems_rtl_elf_relocate_rela	(	const rtems_rtl_obj_t *	obj,
		const Elf_Rela *	rela,
		const rtems_rtl_obj_sect_t *	sect,
		const char *	symname,
		const Elf_Byte	syminfo,
		const Elf_Word	symvalue
	)

Architecture specific relocation handler compiled in for a specific architecture by the build system.

The handler applies the relocation to the target.

Parameters

obj	The object file being relocated.
rela	The ELF addend relocation record.
sect	The section of the object file the relocation is for.
symname	The symbol's name.
syminfo	The ELF symbol info field.
symvalue	If a symbol is referenced, this is the symbols value.

Return values

bool	The relocation has been applied.
bool	The relocation could not be applied.

References rtems_rtl_obj_sect_s::base, rtems_rtl_elf_relocate_rel(), rtems_rtl_set_error(), and rtems_rtl_trace().

Referenced by rtems_rtl_elf_rel_resolve_sym().

rtems_rtl_elf_section_flags()

uint32_t rtems_rtl_elf_section_flags	(	const rtems_rtl_obj_t *	obj,
		const Elf_Shdr *	shdr
	)

Architecture specific handler to translate unknown section flags to RTL section flags.

Parameters

obj	The object file being relocated.
shdr	The ELF section header.

Return values

0	Unknown or unsupported flags.
uint32_t	RTL object file flags.

References rtems_rtl_elf_rel_resolve_sym().
