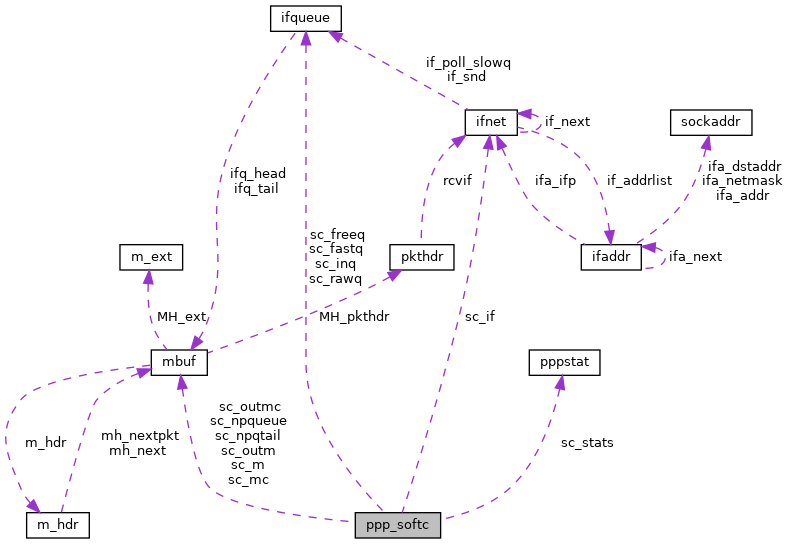

Collaboration diagram for ppp_softc:
Data Fields | |
| struct ifnet | sc_if |
| u_int | sc_flags |
| void * | sc_devp |
| void(* | sc_start )(struct ppp_softc *) |
| void(* | sc_ctlp )(struct ppp_softc *) |
| void(* | sc_relinq )(struct ppp_softc *) |
| short | sc_mru |
| pid_t | sc_xfer |
| struct ifqueue | sc_rawq |
| struct ifqueue | sc_inq |
| struct ifqueue | sc_fastq |
| struct mbuf * | sc_npqueue |
| struct mbuf ** | sc_npqtail |
| struct pppstat | sc_stats |
| caddr_t | sc_bpf |
| enum NPmode | sc_npmode [NUM_NP] |
| struct compressor * | sc_xcomp |
| void * | sc_xc_state |
| struct compressor * | sc_rcomp |
| void * | sc_rc_state |
| time_t | sc_last_sent |
| time_t | sc_last_recv |
| ext_accm | sc_asyncmap |
| u_long | sc_rasyncmap |
| struct mbuf * | sc_outm |
| struct mbuf * | sc_outmc |
| struct mbuf * | sc_m |
| struct mbuf * | sc_mc |
| char * | sc_mp |
| short | sc_ilen |
| u_short | sc_fcs |
| u_short | sc_outfcs |
| u_char | sc_rawin [16] |
| int | sc_rawin_count |
| struct ifqueue | sc_freeq |
| short | sc_outoff |
| short | sc_outflag |
| short | sc_outlen |
| short | sc_outfcslen |
| u_char | sc_outfcsbuf [8] |
| u_char * | sc_outbuf |
| u_char | sc_outchar |
| rtems_id | sc_rxtask |
| rtems_id | sc_txtask |
| rtems_id | sc_pppdtask |
The documentation for this struct was generated from the following file:
- /mnt/data0/chrisj/rtems/releases/rtems-release.git/4.11.3/ws-rtems/rtems-4.11.3/cpukit/libnetworking/net/if_pppvar.h
