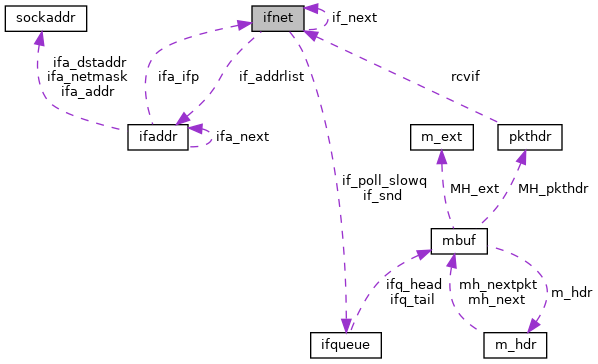

Collaboration diagram for ifnet:
Public Member Functions | |
| int | if_output (struct ifnet *, struct mbuf *, struct sockaddr *, struct rtentry *) |
| void | if_start (struct ifnet *) |
| int | if_ioctl (struct ifnet *, ioctl_command_t, caddr_t) |
| void | if_watchdog (struct ifnet *) |
| int | if_poll_recv (struct ifnet *, int *) |
| int | if_poll_xmit (struct ifnet *, int *) |
| void | if_poll_intren (struct ifnet *) |
| void | if_poll_slowinput (struct ifnet *, struct mbuf *) |
| void | if_init (void *) |
| int | if_tap (struct ifnet *, struct ether_header *, struct mbuf *) |
Data Fields | |
| void * | if_softc |
| char * | if_name |
| struct ifnet * | if_next |
| struct ifaddr * | if_addrlist |
| int | if_pcount |
| struct bpf_if * | if_bpf |
| u_short | if_index |
| short | if_unit |
| short | if_timer |
| int | if_flags |
| void * | if_linkmib |
| size_t | if_linkmiblen |
| struct if_data | if_data |
| struct ifqueue | if_snd |
| struct ifqueue * | if_poll_slowq |
The documentation for this struct was generated from the following file:
- /mnt/data0/chrisj/rtems/releases/rtems-release.git/4.11.3/ws-rtems/rtems-4.11.3/cpukit/libnetworking/net/if_var.h
