The following records define the control block used to manage each timer. More...
#include <timer.h>

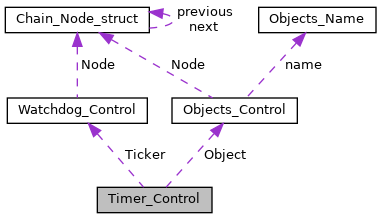

Collaboration diagram for Timer_Control:
Data Fields | |
| Objects_Control | Object |
| This field is the object management portion of a Timer instance. More... | |
| Watchdog_Control | Ticker |
| This field is the Watchdog instance which will be the scheduled. More... | |
| Timer_Classes | the_class |
| This field indicates what type of timer this currently is. More... | |
Detailed Description
The following records define the control block used to manage each timer.
Field Documentation
◆ Object
| Objects_Control Timer_Control::Object |
This field is the object management portion of a Timer instance.
Referenced by _Timer_Free(), and rtems_timer_create().
◆ the_class
| Timer_Classes Timer_Control::the_class |
This field indicates what type of timer this currently is.
Referenced by rtems_timer_create().
◆ Ticker
| Watchdog_Control Timer_Control::Ticker |
This field is the Watchdog instance which will be the scheduled.
Referenced by rtems_timer_create().
The documentation for this struct was generated from the following file:
- /mnt/data0/chrisj/rtems/releases/rtems-release.git/4.11.3/ws-rtems/rtems-4.11.3/cpukit/rtems/include/rtems/rtems/timer.h
