PowerPc MSR and Registers Access Definitions. More...

#include <stdint.h>

Include dependency graph for registers.h:

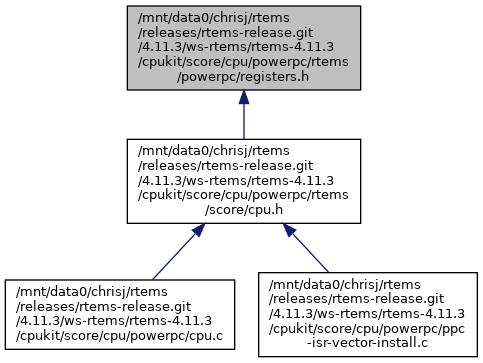

This graph shows which files directly or indirectly include this file:

Macros
#define	MSR_UCLE (1<<26) /* User-mode cache lock enable (e500) */

#define	MSR_VE (1<<25) /* Alti-Vec enable (7400+) */

#define	MSR_SPE (1<<25) /* SPE enable (e500) */

#define	MSR_AP (1<<25) /* Auxiliary processor available */

#define	MSR_APE (1<<19) /* APU exception enable */

#define	MSR_POW (1<<18) /* Enable Power Management */

#define	MSR_WE (1<<18) /* Wait state enable (e500, 4xx) */

#define	MSR_TGPR (1<<17) /* TLB Update registers in use */

#define	MSR_CE (1<<17) /* BookE critical interrupt */

#define	MSR_ILE (1<<16) /* Interrupt Little-Endian enable */

#define	MSR_EE (1<<15) /* External Interrupt enable */

#define	MSR_PR (1<<14) /* Supervisor/User privilege */

#define	MSR_FP (1<<13) /* Floating Point enable */

#define	MSR_ME (1<<12) /* Machine Check enable */

#define	MSR_FE0 (1<<11) /* Floating Exception mode 0 */

#define	MSR_SE (1<<10) /* Single Step */

#define	MSR_UBLE (1<<10) /* User-mode BTB lock enable (e500) */

#define	MSR_DWE (1<<10) /* Debug wait enable (4xx) */

#define	MSR_BE (1<<9) /* Branch Trace */

#define	MSR_DE (1<<9) /* BookE debug exception */

#define	MSR_FE1 (1<<8) /* Floating Exception mode 1 */

#define	MSR_E300_CE (1<<7) /* e300 critical interrupt */

#define	MSR_IP (1<<6) /* Exception prefix 0x000/0xFFF */

#define	MSR_IR (1<<5) /* Instruction MMU enable */

#define	MSR_DR (1<<4) /* Data MMU enable */

#define	MSR_IS (1<<5) /* Instruction address space */

#define	MSR_DS (1<<4) /* Data address space */

#define	MSR_PMM (1<<2) /* Performance monitor mark */

#define	MSR_RI (1<<1) /* Recoverable Exception */

#define	MSR_LE (1<<0) /* Little-Endian enable */

#define	HID0_EMCP (1<<31) /* Enable Machine Check pin */

#define	HID0_EBA (1<<29) /* Enable Bus Address Parity */

#define	HID0_EBD (1<<28) /* Enable Bus Data Parity */

#define	HID0_SBCLK (1<<27)

#define	HID0_TBEN

#define	HID0_EICE (1<<26)

#define	HID0_ECLK (1<<25)

#define	HID0_PAR (1<<24)

#define	HID0_DOZE (1<<23)

#define	HID0_7455_HIGH_BAT_EN (1<<23)

#define	HID0_NAP (1<<22)

#define	HID0_SLEEP (1<<21)

#define	HID0_DPM (1<<20)

#define	HID0_ICE (1<<15) /* Instruction Cache Enable */

#define	HID0_DCE (1<<14) /* Data Cache Enable */

#define	HID0_ILOCK (1<<13) /* Instruction Cache Lock */

#define	HID0_DLOCK (1<<12) /* Data Cache Lock */

#define	HID0_ICFI (1<<11) /* Instruction Cache Flash Invalidate */

#define	HID0_DCI (1<<10) /* Data Cache Invalidate */

#define	HID0_7455_XBSEN (1<<8)

#define	HID0_SIED (1<<7) /* Serial Instruction Execution [Disable] */

#define	HID0_BTIC (1<<5) /* Branch Target Instruction Cache [Enable] */

#define	HID0_LRSTK (1<<4) /* Link register stack enable (7455) */

#define	HID0_FOLD (1<<3) /* Branch folding enable (7455) */

#define	HID0_BHTE (1<<2) /* Branch History Table Enable */

#define	HID0_BTCD (1<<1) /* Branch target cache disable */

#define	FPSCR_FX (1<<31)

#define	FPSCR_FEX (1<<30)

#define	_MACH_prep 1

#define	_MACH_Pmac 2 /* pmac or pmac clone (non-chrp) */

#define	_MACH_chrp 4 /* chrp machine */

#define	_MACH_mbx 8 /* Motorola MBX board */

#define	_MACH_apus 16 /* amiga with phase5 powerup */

#define	_MACH_fads 32 /* Motorola FADS board */

#define	_PREP_Motorola 0x01 /* motorola prep */

#define	_PREP_Firm 0x02 /* firmworks prep */

#define	_PREP_IBM 0x00 /* ibm prep */

#define	_PREP_Bull 0x03 /* bull prep */

#define	_CHRP_Motorola 0x04 /* motorola chrp, the cobra */

#define	_CHRP_IBM 0x05 /* IBM chrp, the longtrail and longtrail 2 */

#define	_GLOBAL(n)

#define	TBRU 269 /* Time base Upper/Lower (Reading) */

#define	TBRL 268

#define	TBWU 285 /* Time base Upper/Lower (Writing) */

#define	TBWL 284

#define	PPC_XER 1

#define	PPC_LR 8

#define	PPC_CTR 9

#define	HID0 1008 /* Hardware Implementation 0 */

#define	HID1 1009 /* Hardware Implementation 1 */

#define	HID2 1011 /* Hardware Implementation 2 */

#define	DABR 1013 /* Data Access Breakpoint */

#define	PPC_PVR 287 /* Processor Version */

#define	IBAT0U 528 /* Instruction BAT #0 Upper/Lower */

#define	IBAT0L 529

#define	IBAT1U 530 /* Instruction BAT #1 Upper/Lower */

#define	IBAT1L 531

#define	IBAT2U 532 /* Instruction BAT #2 Upper/Lower */

#define	IBAT2L 533

#define	IBAT3U 534 /* Instruction BAT #3 Upper/Lower */

#define	IBAT3L 535

#define	IBAT4U 560 /* Instruction BAT #4 Upper/Lower */

#define	IBAT4L 561

#define	IBAT5U 562 /* Instruction BAT #5 Upper/Lower */

#define	IBAT5L 563

#define	IBAT6U 564 /* Instruction BAT #6 Upper/Lower */

#define	IBAT6L 565

#define	IBAT7U 566 /* Instruction BAT #7 Upper/Lower */

#define	IBAT7L 567

#define	DBAT0U 536 /* Data BAT #0 Upper/Lower */

#define	DBAT0L 537

#define	DBAT1U 538 /* Data BAT #1 Upper/Lower */

#define	DBAT1L 539

#define	DBAT2U 540 /* Data BAT #2 Upper/Lower */

#define	DBAT2L 541

#define	DBAT3U 542 /* Data BAT #3 Upper/Lower */

#define	DBAT3L 543

#define	DBAT4U 568 /* Instruction BAT #4 Upper/Lower */

#define	DBAT4L 569

#define	DBAT5U 570 /* Instruction BAT #5 Upper/Lower */

#define	DBAT5L 571

#define	DBAT6U 572 /* Instruction BAT #6 Upper/Lower */

#define	DBAT6L 573

#define	DBAT7U 574 /* Instruction BAT #7 Upper/Lower */

#define	DBAT7L 575

#define	DMISS 976 /* TLB Lookup/Refresh registers */

#define	DCMP 977

#define	HASH1 978

#define	HASH2 979

#define	IMISS 980

#define	ICMP 981

#define	PPC_RPA 982

#define	SDR1 25 /* MMU hash base register */

#define	PPC_DAR 19 /* Data Address Register */

#define	DEAR_BOOKE 61

#define	DEAR_405 981

#define	SPR0 272 /* Supervisor Private Registers */

#define	SPRG0 272

#define	SPR1 273

#define	SPRG1 273

#define	SPR2 274

#define	SPRG2 274

#define	SPR3 275

#define	SPRG3 275

#define	SPRG4 276

#define	SPRG5 277

#define	SPRG6 278

#define	SPRG7 279

#define	USPRG0 256

#define	DSISR 18

#define	SRR0 26 /* Saved Registers (exception) */

#define	SRR1 27

#define	IABR 1010 /* Instruction Address Breakpoint */

#define	PPC_DEC 22 /* Decrementer */

#define	PPC_EAR 282 /* External Address Register */

#define	MSSCR0 1014 /* Memory Subsystem Control Register */

#define	L2CR 1017 /* PPC 750 and 74xx L2 control register */

#define	L2CR_L2E (1<<31) /* enable */

#define	L2CR_L2I (1<<21) /* global invalidate */

#define	L2CR_L2IO_745x 0x100000 /* (1<<20) L2 Instruction-Only */

#define	L2CR_L2DO_745x 0x10000 /* (1<<16) L2 Data-Only */

#define	L2CR_LOCK_745x (L2CR_L2IO_745x\|L2CR_L2DO_745x)

#define	L2CR_L3OH0 0x00080000 /* 12:L3 output hold 0 */

#define	L3CR 1018 /* PPC 7450/7455 L3 control register */

#define	L3CR_L3IO_745x 0x400000 /* (1<<22) L3 Instruction-Only */

#define	L3CR_L3DO_745x 0x40 /* (1<<6) L3 Data-Only */

#define	L3CR_LOCK_745x (L3CR_L3IO_745x\|L3CR_L3DO_745x)

#define	L3CR_RESERVED 0x0438003a /* Reserved bits in L3CR */

#define	L3CR_L3E 0x80000000 /* 0: L3 enable */

#define	L3CR_L3PE 0x40000000 /* 1: L3 data parity checking enable */

#define	L3CR_L3APE 0x20000000 /* 2: L3 address parity checking enable */

#define	L3CR_L3SIZ 0x10000000 /* 3: L3 size (0=1MB, 1=2MB) */

#define	L3SIZ_1M 0x00000000

#define	L3SIZ_2M 0x10000000

#define	L3CR_L3CLKEN 0x08000000 /* 4: Enables the L3_CLK[0:1] signals */

#define	L3CR_L3CLK 0x03800000 /* 6-8: L3 clock ratio */

#define	L3CLK_60 0x00000000 /* core clock / 6 */

#define	L3CLK_20 0x01000000 /* / 2 */

#define	L3CLK_25 0x01800000 /* / 2.5 */

#define	L3CLK_30 0x02000000 /* / 3 */

#define	L3CLK_35 0x02800000 /* / 3.5 */

#define	L3CLK_40 0x03000000 /* / 4 */

#define	L3CLK_50 0x03800000 /* / 5 */

#define	L3CR_L3IO 0x00400000 /* 9: L3 instruction-only mode */

#define	L3CR_L3SPO 0x00040000 /* 13: L3 sample point override */

#define	L3CR_L3CKSP 0x00030000 /* 14-15: L3 clock sample point */

#define	L3CKSP_2 0x00000000 /* 2 clocks */

#define	L3CKSP_3 0x00010000 /* 3 clocks */

#define	L3CKSP_4 0x00020000 /* 4 clocks */

#define	L3CKSP_5 0x00030000 /* 5 clocks */

#define	L3CR_L3PSP 0x0000e000 /* 16-18: L3 P-clock sample point */

#define	L3PSP_0 0x00000000 /* 0 clocks */

#define	L3PSP_1 0x00002000 /* 1 clocks */

#define	L3PSP_2 0x00004000 /* 2 clocks */

#define	L3PSP_3 0x00006000 /* 3 clocks */

#define	L3PSP_4 0x00008000 /* 4 clocks */

#define	L3PSP_5 0x0000a000 /* 5 clocks */

#define	L3CR_L3REP 0x00001000 /* 19: L3 replacement algorithm (0=default, 1=alternate) */

#define	L3CR_L3HWF 0x00000800 /* 20: L3 hardware flush */

#define	L3CR_L3I

#define	L3CR_L3RT 0x00000300 /* 22-23: L3 SRAM type */

#define	L3RT_MSUG2_DDR 0x00000000 /* MSUG2 DDR SRAM */

#define	L3RT_PIPELINE_LATE 0x00000100 /* Pipelined (register-register) synchronous late-write SRAM */

#define	L3RT_PB2_SRAM 0x00000300 /* PB2 SRAM */

#define	L3CR_L3NIRCA 0x00000080 /* 24: L3 non-integer ratios clock adjustment for the SRAM */

#define	L3CR_L3DO 0x00000040 /* 25: L3 data-only mode */

#define	L3CR_PMEN 0x00000004 /* 29: Private memory enable */

#define	L3CR_PMSIZ 0x00000004 /* 31: Private memory size (0=1MB, 1=2MB) */

#define	THRM1 1020

#define	THRM2 1021

#define	THRM3 1022

#define	THRM1_TIN (1<<(31-0))

#define	THRM1_TIV (1<<(31-1))

#define	THRM1_THRES (0x7f<<(31-8))

#define	THRM1_TID (1<<(31-29))

#define	THRM1_TIE (1<<(31-30))

#define	THRM1_V (1<<(31-31))

#define	THRM3_SITV (0x1fff << (31-30))

#define	THRM3_E (1<<(31-31))

#define	PPC_SR0 0

#define	PPC_SR1 1

#define	PPC_SR2 2

#define	PPC_SR3 3

#define	PPC_SR4 4

#define	PPC_SR5 5

#define	PPC_SR6 6

#define	PPC_SR7 7

#define	PPC_SR8 8

#define	PPC_SR9 9

#define	PPC_SR10 10

#define	PPC_SR11 11

#define	PPC_SR12 12

#define	PPC_SR13 13

#define	PPC_SR14 14

#define	PPC_SR15 15

#define	BOOKE_DECAR 54

#define	PPC405_MCSR 0x23C

#define	PPC405_ESR 0x3D4

#define	PPC405_DEAR 0x3D5

#define	BOOKE_DEAR 61

#define	PPC405_TSR 0x3D8

#define	BOOKE_TSR 336

#define	BOOKE_TSR_ENW (1<<31)

#define	BOOKE_TSR_WIS (1<<30)

#define	BOOKE_TSR_DIS (1<<27)

#define	BOOKE_TSR_FIS (1<<26)

#define	PPC405_TCR 0x3DA

#define	BOOKE_TCR 340

#define	BOOKE_TCR_WP(x) (((x)&3)<<30)

#define	BOOKE_TCR_WP_MASK (3<<30)

#define	BOOKE_TCR_WRC(x) (((x)&3)<<28)

#define	BOOKE_TCR_WRC_MASK (3<<28)

#define	BOOKE_TCR_WIE (1<<27)

#define	BOOKE_TCR_DIE (1<<26)

#define	BOOKE_TCR_FP(x) (((x)&3)<<24)

#define	BOOKE_TCR_FIE (1<<23)

#define	BOOKE_TCR_ARE (1<<22)

#define	BOOKE_TCR_WPEXT(x) (((x)&0xf)<<17)

#define	BOOKE_TCR_WPEXT_MASK (0xf<<17)

#define	BOOKE_TCR_FPEXT(x) (((x)&0xf)<<13)

#define	BOOKE_TCR_FPEXT_MASK (0xf<<13)

#define	BOOKE_PID 48 /* Process ID */

#define	BOOKE_CSRR0 58 /* Critical Save/Restore Register 0 */

#define	BOOKE_CSRR1 59 /* Critical Save/Restore Register 1 */

#define	BOOKE_ESR 62 /* Exception Syndrome Register */

#define	BOOKE_IVPR 63 /* Interrupt Vector Prefix Register */

#define	BOOKE_SPRG4_W 260 /* Special Purpose Register General 4 (WO) */

#define	BOOKE_SPRG5_W 261 /* Special Purpose Register General 5 (WO) */

#define	BOOKE_SPRG6_W 262 /* Special Purpose Register General 6 (WO) */

#define	BOOKE_SPRG7_W 263 /* Special Purpose Register General 7 (WO) */

#define	BOOKE_PIR 286 /* Processor ID Register */

#define	BOOKE_DBSR 304 /* Debug Status Register */

#define	BOOKE_DBCR0 308 /* Debug Control Register 0 */

#define	BOOKE_DBCR1 309 /* Debug Control Register 1 */

#define	BOOKE_DBCR2 310 /* Debug Control Register 2 */

#define	BOOKE_IAC1 312 /* Instruction Address Compare 1 */

#define	BOOKE_IAC2 313 /* Instruction Address Compare 2 */

#define	BOOKE_IAC3 314 /* Instruction Address Compare 3 */

#define	BOOKE_IAC4 315 /* Instruction Address Compare 4 */

#define	BOOKE_DAC1 316 /* Data Address Compare 1 */

#define	BOOKE_DAC2 317 /* Data Address Compare 2 */

#define	BOOKE_DVC1 318 /* Data Value Compare 1 */

#define	BOOKE_DVC2 319 /* Data Value Compare 2 */

#define	BOOKE_IVOR0 400 /* Interrupt Vector Offset Register 0 */

#define	BOOKE_IVOR1 401 /* Interrupt Vector Offset Register 1 */

#define	BOOKE_IVOR2 402 /* Interrupt Vector Offset Register 2 */

#define	BOOKE_IVOR3 403 /* Interrupt Vector Offset Register 3 */

#define	BOOKE_IVOR4 404 /* Interrupt Vector Offset Register 4 */

#define	BOOKE_IVOR5 405 /* Interrupt Vector Offset Register 5 */

#define	BOOKE_IVOR6 406 /* Interrupt Vector Offset Register 6 */

#define	BOOKE_IVOR7 407 /* Interrupt Vector Offset Register 7 */

#define	BOOKE_IVOR8 408 /* Interrupt Vector Offset Register 8 */

#define	BOOKE_IVOR9 409 /* Interrupt Vector Offset Register 9 */

#define	BOOKE_IVOR10 410 /* Interrupt Vector Offset Register 10 */

#define	BOOKE_IVOR11 411 /* Interrupt Vector Offset Register 11 */

#define	BOOKE_IVOR12 412 /* Interrupt Vector Offset Register 12 */

#define	BOOKE_IVOR13 413 /* Interrupt Vector Offset Register 13 */

#define	BOOKE_IVOR14 414 /* Interrupt Vector Offset Register 14 */

#define	BOOKE_IVOR15 415 /* Interrupt Vector Offset Register 15 */

#define	BOOKE_MCSRR0 570 /* Machine Check Save/Restore Register 0 */

#define	BOOKE_MCSRR1 571 /* Machine Check Save/Restore Register 1 */

#define	BOOKE_MCSR 572 /* Machine Check Status Register */

#define	PPC440_INV0 880 /* Instruction Cache Normal Victim 0 */

#define	PPC440_INV1 881 /* Instruction Cache Normal Victim 1 */

#define	PPC440_INV2 882 /* Instruction Cache Normal Victim 2 */

#define	PPC440_INV3 883 /* Instruction Cache Normal Victim 3 */

#define	PPC440_ITV0 884 /* Instruction Cache Transient Victim 0 */

#define	PPC440_ITV1 885 /* Instruction Cache Transient Victim 1 */

#define	PPC440_ITV2 886 /* Instruction Cache Transient Victim 2 */

#define	PPC440_ITV3 887 /* Instruction Cache Transient Victim 3 */

#define	PPC440_CCR1 888 /* Core Configuration Register 1 */

#define	PPC440_DNV0 912 /* Data Cache Normal Victim 0 */

#define	PPC440_DNV1 913 /* Data Cache Normal Victim 1 */

#define	PPC440_DNV2 914 /* Data Cache Normal Victim 2 */

#define	PPC440_DNV3 915 /* Data Cache Normal Victim 3 */

#define	PPC440_DTV0 916 /* Data Cache Transient Victim 0 */

#define	PPC440_DTV1 917 /* Data Cache Transient Victim 1 */

#define	PPC440_DTV2 918 /* Data Cache Transient Victim 2 */

#define	PPC440_DTV3 919 /* Data Cache Transient Victim 3 */

#define	PPC440_DVLIM 920 /* Data Cache Victim Limit */

#define	PPC440_IVLIM 921 /* Instruction Cache Victim Limit */

#define	PPC440_RSTCFG 923 /* Reset Configuration */

#define	PPC440_DCDBTRL 924 /* Data Cache Debug Tag Register Low */

#define	PPC440_DCDBTRH 925 /* Data Cache Debug Tag Register High */

#define	PPC440_ICDBTRL 926 /* Instruction Cache Debug Tag Register Low */

#define	PPC440_ICDBTRH 927 /* Instruction Cache Debug Tag Register High */

#define	PPC440_MMUCR 946 /* Memory Management Unit Control Register */

#define	PPC440_CCR0 947 /* Core Configuration Register 0 */

#define	PPC440_ICDBDR 979 /* Instruction Cache Debug Data Register */

#define	PPC440_DBDR 1011 /* Debug Data Register */

#define	PPC440_TLB0_EPN(n) ( (((1<<22)-1)&(n)) << (31-21)) /* Etended Page Number */

#define	PPC440_TLB0_EPN_GET(n) ( ((n) >> (31-21)) & ((1<<22)-1))

#define	PPC440_TLB0_V ( 1 << (31-22)) /* Entry valid */

#define	PPC440_TLB0_TS ( 1 << (31-23)) /* Translation space */

#define	PPC440_TLB0_TSIZE(n) ( (0xf & (n)) << (31-27)) /* Page size */

#define	PPC440_TLB0_TSIZE_GET(n) ( ((n) >> (31-27)) & 0xf)

#define	PPC440_TLB0_TPAR(n) ( (0xf & (n)) << (31-31)) /* Tag Parity */

#define	PPC440_TLB0_TPAR_GET(n) ( ((n) >> (31-31)) & 0xf)

#define	PPC440_PID_TID(n) ( (0xff & (n)) << (31-31)) /* Translation ID */

#define	PPC440_PID_TID_GET(n) ( ((n) >> (31-31)) & 0xff)

#define	PPC440_TLB1_RPN(n) ( (((1<<22)-1)&(n)) << (31-21)) /* Real Page Number */

#define	PPC440_TLB1_RPN_GET(n) ( ((n) >> (31-21)) & ((1<<22)-1))

#define	PPC440_TLB1_PAR1(n) ( (0x3 & (n)) << (31-23)) /* Parity for TLB word 1 */

#define	PPC440_TLB1_PAR1_GET(n) ( ((n) >> (31-23)) & 0x3)

#define	PPC440_TLB1_ERPN(n) ( (0xf & (n)) << (31-31)) /* Extended Real Page No. */

#define	PPC440_TLB1_ERPN_GET(n) ( ((n) >> (31-31)) & 0xf)

#define	PPC440_TLB2_PAR2(n) ( (0x3 & (n)) << (31- 1)) /* Parity for TLB word 2 */

#define	PPC440_TLB2_PAR2_GET(n) ( ((n) >> (31- 1)) & 0x3)

#define	PPC440_TLB2_U0 ( 1 << (31-16)) /* User attr. 0 */

#define	PPC440_TLB2_U1 ( 1 << (31-17)) /* User attr. 1 */

#define	PPC440_TLB2_U2 ( 1 << (31-18)) /* User attr. 2 */

#define	PPC440_TLB2_U3 ( 1 << (31-19)) /* User attr. 3 */

#define	PPC440_TLB2_W ( 1 << (31-20)) /* Write-through */

#define	PPC440_TLB2_I ( 1 << (31-21)) /* Cache-inhibited */

#define	PPC440_TLB2_M ( 1 << (31-22)) /* Memory-coherence req. */

#define	PPC440_TLB2_G ( 1 << (31-23)) /* Guarded */

#define	PPC440_TLB2_E ( 1 << (31-24)) /* Little-endian */

#define	PPC440_TLB2_UX ( 1 << (31-26)) /* User exec. */

#define	PPC440_TLB2_UW ( 1 << (31-27)) /* User write */

#define	PPC440_TLB2_UR ( 1 << (31-28)) /* User read */

#define	PPC440_TLB2_SX ( 1 << (31-29)) /* Super exec. */

#define	PPC440_TLB2_SW ( 1 << (31-30)) /* Super write */

#define	PPC440_TLB2_SR ( 1 << (31-31)) /* Super read */

#define	PPC440_TLB2_ATTR(x) ( ((x) & 0x1ff) << 7 )

#define	PPC440_TLB2_ATTR_GET(x) ( ((x) >> 7) & 0x1ff )

#define	PPC440_TLB2_PERM(n) ( (n) & 0x3f )

#define	PPC440_TLB2_PERM_GET(n) ( (n) & 0x3f )

#define	FSL_EIS_BUCSR 1013

#define	FSL_EIS_BUCSR_STAC_EN (1 << (63 - 39))

#define	FSL_EIS_BUCSR_LS_EN (1 << (63 - 41))

#define	FSL_EIS_BUCSR_BBFI (1 << (63 - 54))

#define	FSL_EIS_BUCSR_BALLOC_ALL (0x0 << (63 - 59))

#define	FSL_EIS_BUCSR_BALLOC_FORWARD (0x1 << (63 - 59))

#define	FSL_EIS_BUCSR_BALLOC_BACKWARD (0x2 << (63 - 59))

#define	FSL_EIS_BUCSR_BALLOC_NONE (0x3 << (63 - 59))

#define	FSL_EIS_BUCSR_BPRED_TAKEN (0x0 << (63 - 61))

#define	FSL_EIS_BUCSR_BPRED_TAKEN_ONLY_FORWARD (0x1 << (63 - 62))

#define	FSL_EIS_BUCSR_BPRED_TAKEN_ONLY_BACKWARD (0x2 << (63 - 62))

#define	FSL_EIS_BUCSR_BPRED_NOT_TAKEN (0x3 << (63 - 62))

#define	FSL_EIS_BUCSR_BPEN (1 << (63 - 63))

#define	FSL_EIS_SVR 1023

#define	FSL_EIS_MAS0 624

#define	FSL_EIS_MAS0_TLBSEL (1 << (63 - 35))

#define	FSL_EIS_MAS0_ESEL(n) ((0xf & (n)) << (63 - 47))

#define	FSL_EIS_MAS0_ESEL_GET(m) (((m) >> (63 - 47)) & 0xf)

#define	FSL_EIS_MAS0_NV (1 << (63 - 63))

#define	FSL_EIS_MAS1 625

#define	FSL_EIS_MAS1_V (1 << (63 - 32))

#define	FSL_EIS_MAS1_IPROT (1 << (63 - 33))

#define	FSL_EIS_MAS1_TID(n) ((0xff & (n)) << (63 - 47))

#define	FSL_EIS_MAS1_TID_GET(n) (((n) >> (63 - 47)) & 0xfff)

#define	FSL_EIS_MAS1_TS (1 << (63 - 51))

#define	FSL_EIS_MAS1_TSIZE(n) ((0xf & (n)) << (63 - 55))

#define	FSL_EIS_MAS1_TSIZE_GET(n) (((n)>>(63 - 55)) & 0xf)

#define	FSL_EIS_MAS2 626

#define	FSL_EIS_MAS2_EPN(n) ((((1 << 21) - 1)&(n)) << (63-51))

#define	FSL_EIS_MAS2_EPN_GET(n) (((n) >> (63 - 51)) & 0xfffff)

#define	FSL_EIS_MAS2_EA(n) FSL_EIS_MAS2_EPN((n) >> 12)

#define	FSL_EIS_MAS2_EA_GET(n) (FSL_EIS_MAS2_EPN_GET(n) << 12)

#define	FSL_EIS_MAS2_X0 (1 << (63 - 57))

#define	FSL_EIS_MAS2_X1 (1 << (63 - 58))

#define	FSL_EIS_MAS2_W (1 << (63 - 59))

#define	FSL_EIS_MAS2_I (1 << (63 - 60))

#define	FSL_EIS_MAS2_M (1 << (63 - 61))

#define	FSL_EIS_MAS2_G (1 << (63 - 62))

#define	FSL_EIS_MAS2_E (1 << (63 - 63))

#define	FSL_EIS_MAS2_ATTR(x) ((x) & 0x7f)

#define	FSL_EIS_MAS2_ATTR_GET(x) ((x) & 0x7f)

#define	FSL_EIS_MAS3 627

#define	FSL_EIS_MAS3_RPN(n) ((((1 << 21) - 1) & (n)) << (63-51))

#define	FSL_EIS_MAS3_RPN_GET(n) (((n)>>(63 - 51)) & 0xfffff)

#define	FSL_EIS_MAS3_RA(n) FSL_EIS_MAS3_RPN((n) >> 12)

#define	FSL_EIS_MAS3_RA_GET(n) (FSL_EIS_MAS3_RPN_GET(n) << 12)

#define	FSL_EIS_MAS3_U0 (1 << (63 - 54))

#define	FSL_EIS_MAS3_U1 (1 << (63 - 55))

#define	FSL_EIS_MAS3_U2 (1 << (63 - 56))

#define	FSL_EIS_MAS3_U3 (1 << (63 - 57))

#define	FSL_EIS_MAS3_UX (1 << (63 - 58))

#define	FSL_EIS_MAS3_SX (1 << (63 - 59))

#define	FSL_EIS_MAS3_UW (1 << (63 - 60))

#define	FSL_EIS_MAS3_SW (1 << (63 - 61))

#define	FSL_EIS_MAS3_UR (1 << (63 - 62))

#define	FSL_EIS_MAS3_SR (1 << (63 - 63))

#define	FSL_EIS_MAS3_PERM(n) ((n) & 0x3ff)

#define	FSL_EIS_MAS3_PERM_GET(n) ((n) & 0x3ff)

#define	FSL_EIS_MAS4 628

#define	FSL_EIS_MAS4_TLBSELD (1 << (63 - 35))

#define	FSL_EIS_MAS4_TIDSELD(n) ((0x3 & (n)) << (63 - 47))

#define	FSL_EIS_MAS4_TSIZED(n) ((0xf & (n)) << (63 - 55))

#define	FSL_EIS_MAS4_X0D FSL_EIS_MAS2_X0

#define	FSL_EIS_MAS4_X1D FSL_EIS_MAS2_X1

#define	FSL_EIS_MAS4_WD FSL_EIS_MAS2_W

#define	FSL_EIS_MAS4_ID FSL_EIS_MAS2_I

#define	FSL_EIS_MAS4_MD FSL_EIS_MAS2_M

#define	FSL_EIS_MAS4_GD FSL_EIS_MAS2_G

#define	FSL_EIS_MAS4_ED FSL_EIS_MAS2_E

#define	FSL_EIS_MAS5 629

#define	FSL_EIS_MAS6 630

#define	FSL_EIS_MAS6_SPID0(n) ((0xff & (n)) << (63 - 55))

#define	FSL_EIS_MAS6_SAS (1 << (63 - 63))

#define	FSL_EIS_MAS7 944

#define	FSL_EIS_MMUCFG 1015

#define	FSL_EIS_MMUCSR0 1012

#define	FSL_EIS_PID0 48

#define	FSL_EIS_PID1 633

#define	FSL_EIS_PID2 634

#define	FSL_EIS_TLB0CFG 688

#define	FSL_EIS_TLB1CFG 689

#define	FSL_EIS_L1CFG0 515

#define	FSL_EIS_L1CFG1 516

#define	FSL_EIS_L1CSR0 1010

#define	FSL_EIS_L1CSR1 1011

#define	FSL_EIS_ATBL 526

#define	FSL_EIS_ATBU 527

#define	FSL_EIS_MCAR 573

#define	FSL_EIS_DSRR0 574

#define	FSL_EIS_DSRR1 575

#define	FSL_EIS_SPEFSCR 512

#define	FSL_EIS_SPRG8 604

#define	FSL_EIS_SPRG9 605

#define	FSL_EIS_DBCR3 561

#define	FSL_EIS_DBCR4 563

#define	FSL_EIS_DBCR5 564

#define	FSL_EIS_DBCR6 603

#define	FSL_EIS_DBCNT 562

#define	PPC_INTERRUPT_DISABLE_MASK_DEFAULT MSR_EE
	Default value for the interrupt disable mask. More...

#define	_CPU_MSR_GET(_msr_value)

#define	_CPU_MSR_SET(_msr_value) { __asm__ volatile ("mtmsr %0" : "=&r" ((_msr_value)) : "0" ((_msr_value))); }

#define	_CPU_ISR_Disable(_isr_cookie)

#define	_CPU_ISR_Enable(_isr_cookie) ppc_interrupt_enable(_isr_cookie)

#define	_CPU_ISR_Flash(_isr_cookie) ppc_interrupt_flash(_isr_cookie)

Variables
char	_PPC_INTERRUPT_DISABLE_MASK []
	A global symbol used to disable interrupts in the MSR. More...

Detailed Description

PowerPc MSR and Registers Access Definitions.

This file contains some powerpc MSR and registers access definitions.

Macro Definition Documentation

◆ _CPU_ISR_Disable

#define _CPU_ISR_Disable ( _isr_cookie )

Value:

do { \
    _isr_cookie = ppc_interrupt_disable(); \
  } while (0)

◆ _CPU_MSR_GET

#define _CPU_MSR_GET ( _msr_value )

Value:

do { \
    _msr_value = 0; \
    __asm__ volatile ("mfmsr %0" : "=&r" ((_msr_value)) : "0" ((_msr_value))); \
  } while (0)

◆ _GLOBAL

#define _GLOBAL ( n )

Value:

.globl n;\

n:

◆ HID0_TBEN

#define HID0_TBEN

Value:

(1<<26)         /* 7455:this bit must be set
                                         * and TBEN signal must be asserted
                                         * to enable the time base and
                                         * decrementer.
                                         */

◆ L3CR_L3I

#define L3CR_L3I

Value:

0x00000400 /* 21: L3 global invaregisters.h.orig

lidate */

◆ PPC_INTERRUPT_DISABLE_MASK_DEFAULT

#define PPC_INTERRUPT_DISABLE_MASK_DEFAULT MSR_EE

Default value for the interrupt disable mask.

The interrupt disable mask is stored in the global symbol _PPC_INTERRUPT_DISABLE_MASK.

Variable Documentation

◆ _PPC_INTERRUPT_DISABLE_MASK

char _PPC_INTERRUPT_DISABLE_MASK[]

A global symbol used to disable interrupts in the MSR.

A one bit means that this bit should be cleared.

Macros

Variables

Detailed Description

Macro Definition Documentation

◆ _CPU_ISR_Disable

◆ _CPU_MSR_GET

◆ _GLOBAL

◆ HID0_TBEN

◆ L3CR_L3I

◆ PPC_INTERRUPT_DISABLE_MASK_DEFAULT

Variable Documentation

◆ _PPC_INTERRUPT_DISABLE_MASK
