Inlined Routines Associated with Thread State Information. More...

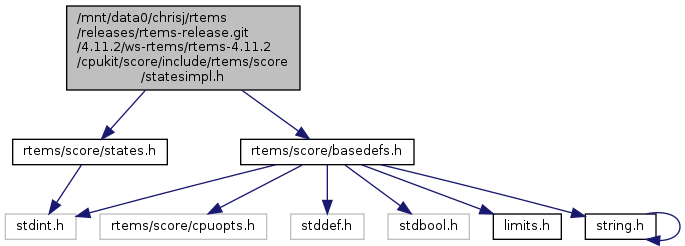

Include dependency graph for statesimpl.h:

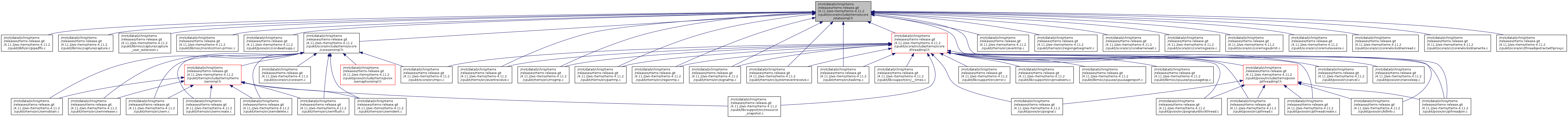

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | STATES_READY 0x00000 |
| This macro corresponds to a task being ready. More... | |
| #define | STATES_DORMANT 0x00001 |
| This macro corresponds to a task being created but not yet started. More... | |
| #define | STATES_SUSPENDED 0x00002 |
| This macro corresponds to a task being suspended. More... | |
| #define | STATES_DELAYING 0x00008 |
| This macro corresponds to a task which is waiting for a timeout. More... | |
| #define | STATES_WAITING_FOR_TIME 0x00010 |
| This macro corresponds to a task waiting until a specific TOD. More... | |
| #define | STATES_WAITING_FOR_BUFFER 0x00020 |
| This macro corresponds to a task waiting for a variable length buffer. More... | |
| #define | STATES_WAITING_FOR_SEGMENT 0x00040 |
| This macro corresponds to a task waiting for a fixed size segment. More... | |
| #define | STATES_WAITING_FOR_MESSAGE 0x00080 |
| This macro corresponds to a task waiting for a message. More... | |
| #define | STATES_WAITING_FOR_EVENT 0x00100 |
| This macro corresponds to a task waiting for an event. More... | |
| #define | STATES_WAITING_FOR_SEMAPHORE 0x00200 |
| This macro corresponds to a task waiting for a semaphore. More... | |
| #define | STATES_WAITING_FOR_MUTEX 0x00400 |
| This macro corresponds to a task waiting for a mutex. More... | |
| #define | STATES_WAITING_FOR_CONDITION_VARIABLE 0x00800 |
| This macro corresponds to a task waiting for a condition variable. More... | |
| #define | STATES_WAITING_FOR_JOIN_AT_EXIT 0x01000 |
| This macro corresponds to a task waiting for a join while exiting. More... | |
| #define | STATES_WAITING_FOR_RPC_REPLY 0x02000 |
| This macro corresponds to a task waiting for a reply to an MPCI request. More... | |
| #define | STATES_WAITING_FOR_PERIOD 0x04000 |
| This macro corresponds to a task waiting for a period. More... | |
| #define | STATES_WAITING_FOR_SIGNAL 0x08000 |
| This macro corresponds to a task waiting for a signal. More... | |
| #define | STATES_WAITING_FOR_BARRIER 0x10000 |
| This macro corresponds to a task waiting for a barrier. More... | |
| #define | STATES_WAITING_FOR_RWLOCK 0x20000 |
| This macro corresponds to a task waiting for a RWLock. More... | |
| #define | STATES_WAITING_FOR_SYSTEM_EVENT 0x40000 |
| This macro corresponds to a task waiting for a system event. More... | |
| #define | STATES_WAITING_FOR_BSD_WAKEUP 0x80000 |
| This macro corresponds to a task waiting for BSD wakeup. More... | |
| #define | STATES_WAITING_FOR_TERMINATION 0x100000 |
| This macro corresponds to a task waiting for a task termination. More... | |
| #define | STATES_ZOMBIE 0x200000 |
| This macro corresponds to a task being a zombie. More... | |
| #define | STATES_MIGRATING 0x400000 |
| This macro corresponds to a task migrating to another scheduler. More... | |
| #define | STATES_RESTARTING 0x800000 |
| This macro corresponds to a task restarting. More... | |
| #define | STATES_WAITING_FOR_JOIN 0x1000000 |
| This macro corresponds to a task waiting for a join. More... | |
| #define | STATES_INTERRUPTIBLE_BY_SIGNAL 0x10000000 |
| This macro corresponds to a task which is in an interruptible blocking state. | |
| #define | STATES_LOCALLY_BLOCKED |
| This macro corresponds to a task waiting for a local object operation. More... | |
| #define | STATES_BLOCKED |
| This macro corresponds to a task waiting which is blocked. More... | |
| #define | STATES_ALL_SET 0xffffffff |
| All state bits set to one (provided for _Thread_Ready()) | |
Functions | |
| RTEMS_INLINE_ROUTINE States_Control | _States_Set (States_Control states_to_set, States_Control current_state) |
| This function sets the given states_to_set into the current_state passed in. More... | |
| RTEMS_INLINE_ROUTINE States_Control | _States_Clear (States_Control states_to_clear, States_Control current_state) |
| This function clears the given states_to_clear into the current_state passed in. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_ready (States_Control the_states) |
| This function returns true if the_states indicates that the state is READY, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_only_dormant (States_Control the_states) |
| This function returns true if the DORMANT state is the ONLY state set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_dormant (States_Control the_states) |
| This function returns true if the DORMANT state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_suspended (States_Control the_states) |
| This function returns true if the SUSPENDED state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_delaying (States_Control the_states) |
| This function returns true if the DELAYING state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_buffer (States_Control the_states) |
| This function returns true if the WAITING_FOR_BUFFER state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_segment (States_Control the_states) |
| This function returns true if the WAITING_FOR_SEGMENT state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_message (States_Control the_states) |
| This function returns true if the WAITING_FOR_MESSAGE state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_event (States_Control the_states) |
| This function returns true if the WAITING_FOR_EVENT state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_system_event (States_Control the_states) |
| This function returns true if the WAITING_FOR_SYSTEM_EVENT state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_mutex (States_Control the_states) |
| This function returns true if the WAITING_FOR_MUTEX state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_semaphore (States_Control the_states) |
| This function returns true if the WAITING_FOR_SEMAPHORE state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_time (States_Control the_states) |
| This function returns true if the WAITING_FOR_TIME state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_rpc_reply (States_Control the_states) |
| This function returns true if the WAITING_FOR_TIME state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_waiting_for_period (States_Control the_states) |
| This function returns true if the WAITING_FOR_PERIOD state is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_interruptible_by_signal (States_Control the_states) |
| This function returns true if the task's state is set in way that allows it to be interrupted by a signal. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_locally_blocked (States_Control the_states) |
| This function returns true if one of the states which indicates that a task is blocked waiting for a local resource is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Is_blocked (States_Control the_states) |
| This function returns true if one of the states which indicates that a task is blocked is set in the_states, and false otherwise. More... | |
| RTEMS_INLINE_ROUTINE bool | _States_Are_set (States_Control the_states, States_Control mask) |
| This function returns true if any of the states in the mask are set in the_states, and false otherwise. More... | |
Detailed Description
Inlined Routines Associated with Thread State Information.
This file contains the static inline implementation of the inlined routines associated with thread state information.
