Specification for the Packet Handler. More...

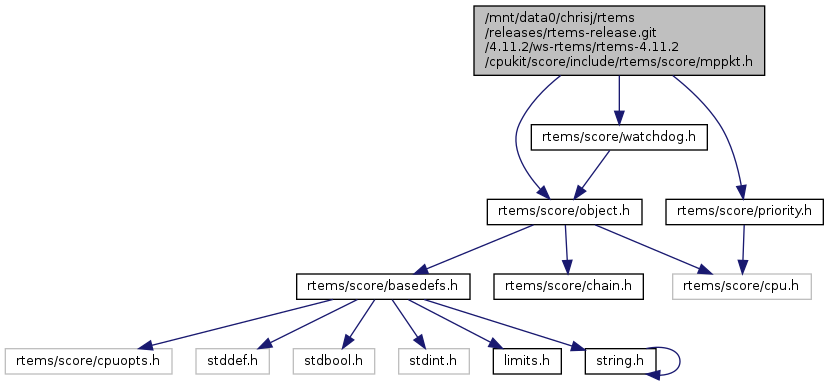

Include dependency graph for mppkt.h:

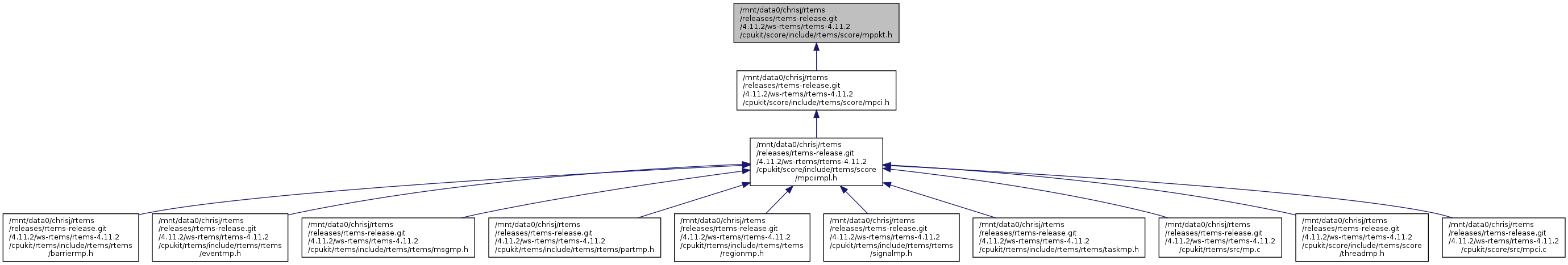

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | MP_packet_Prefix |
| The following record contains the prefix for every packet passed between nodes in an MP system. More... | |
Macros | |
| #define | MP_PACKET_CLASSES_FIRST MP_PACKET_MPCI_INTERNAL |
| This constant defines the first entry in the MP_packet_Classes enumeration. | |
| #define | MP_PACKET_CLASSES_LAST MP_PACKET_SIGNAL |
| This constant defines the last entry in the MP_packet_Classes enumeration. | |
| #define | MP_PACKET_MINIMUM_PACKET_SIZE 64 |
| An MPCI must support packets of at least this size. | |
| #define | MP_PACKET_MINIMUN_HETERO_CONVERSION ( sizeof( MP_packet_Prefix ) / sizeof( uint32_t ) ) |
| The following constant defines the number of uint32_t's in a packet which must be converted to native format in a heterogeneous system. More... | |
Enumerations | |
| enum | MP_packet_Classes { MP_PACKET_MPCI_INTERNAL = 0, MP_PACKET_TASKS = 1, MP_PACKET_MESSAGE_QUEUE = 2, MP_PACKET_SEMAPHORE = 3, MP_PACKET_PARTITION = 4, MP_PACKET_REGION = 5, MP_PACKET_EVENT = 6, MP_PACKET_SIGNAL = 7 } |
| The following enumerated type defines the packet classes. More... | |
Detailed Description
Specification for the Packet Handler.
This package is the specification for the Packet Handler. This handler defines the basic packet and provides mechanisms to utilize packets based on this prefix. Packets are the fundamental basis for messages passed between nodes in an MP system.
