#include <netinet/in.h>
#include <net/route.h>

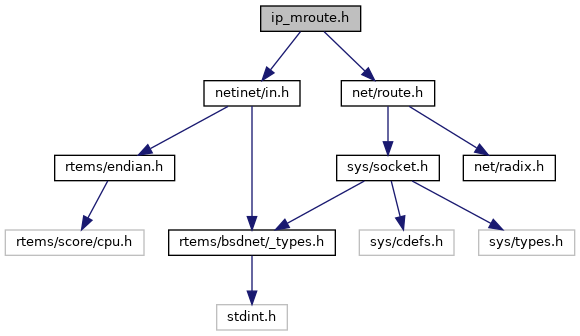

Include dependency graph for ip_mroute.h:

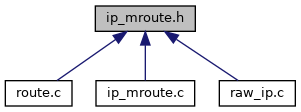

This graph shows which files directly or indirectly include this file:

Data Structures
struct	vifctl

struct	mfcctl

struct	mrtstat

struct	sioc_sg_req

struct	sioc_vif_req

struct	vif

struct	mfc

struct	igmpmsg

struct	rtdetq

struct	tbf

Macros
#define	MRT_INIT 100 /* initialize forwarder */

#define	MRT_DONE 101 /* shut down forwarder */

#define	MRT_ADD_VIF 102 /* create virtual interface */

#define	MRT_DEL_VIF 103 /* delete virtual interface */

#define	MRT_ADD_MFC 104 /* insert forwarding cache entry */

#define	MRT_DEL_MFC 105 /* delete forwarding cache entry */

#define	MRT_VERSION 106 /* get kernel version number */

#define	MRT_ASSERT 107 /* enable assert processing */

#define	MRT_PIM MRT_ASSERT /* enable PIM processing */

#define	MRT_API_SUPPORT 109 /* supported MRT API */

#define	MRT_API_CONFIG 110 /* config MRT API */

#define	MRT_ADD_BW_UPCALL 111 /* create bandwidth monitor */

#define	MRT_DEL_BW_UPCALL 112 /* delete bandwidth monitor */

#define	GET_TIME(t) microtime(&t)

#define	MAXVIFS 32

#define	ALL_VIFS (vifi_t)-1

#define	VIFM_SET(n, m) ((m) \|= (1 << (n)))

#define	VIFM_CLR(n, m) ((m) &= ~(1 << (n)))

#define	VIFM_ISSET(n, m) ((m) & (1 << (n)))

#define	VIFM_CLRALL(m) ((m) = 0x00000000)

#define	VIFM_COPY(mfrom, mto) ((mto) = (mfrom))

#define	VIFM_SAME(m1, m2) ((m1) == (m2))

#define	VIFF_TUNNEL 0x1 /* vif represents a tunnel end-point */

#define	VIFF_SRCRT 0x2 /* tunnel uses IP source routing */

#define	IGMPMSG_NOCACHE 1

#define	IGMPMSG_WRONGVIF 2

#define	MFCTBLSIZ 256

#define	MFCHASHMOD(h) ((h) & (MFCTBLSIZ - 1))

#define	MAX_UPQ 4 /* max. no of pkts in upcall Q */

#define	MAX_BKT_SIZE 10000 /* 10K bytes size */

#define	MAXQSIZE 10 /* max # of pkts in queue */

Typedefs
typedef u_long	vifbitmap_t

typedef u_short	vifi_t
