Information required to manage a thread while it is blocked. More...

#include <thread.h>

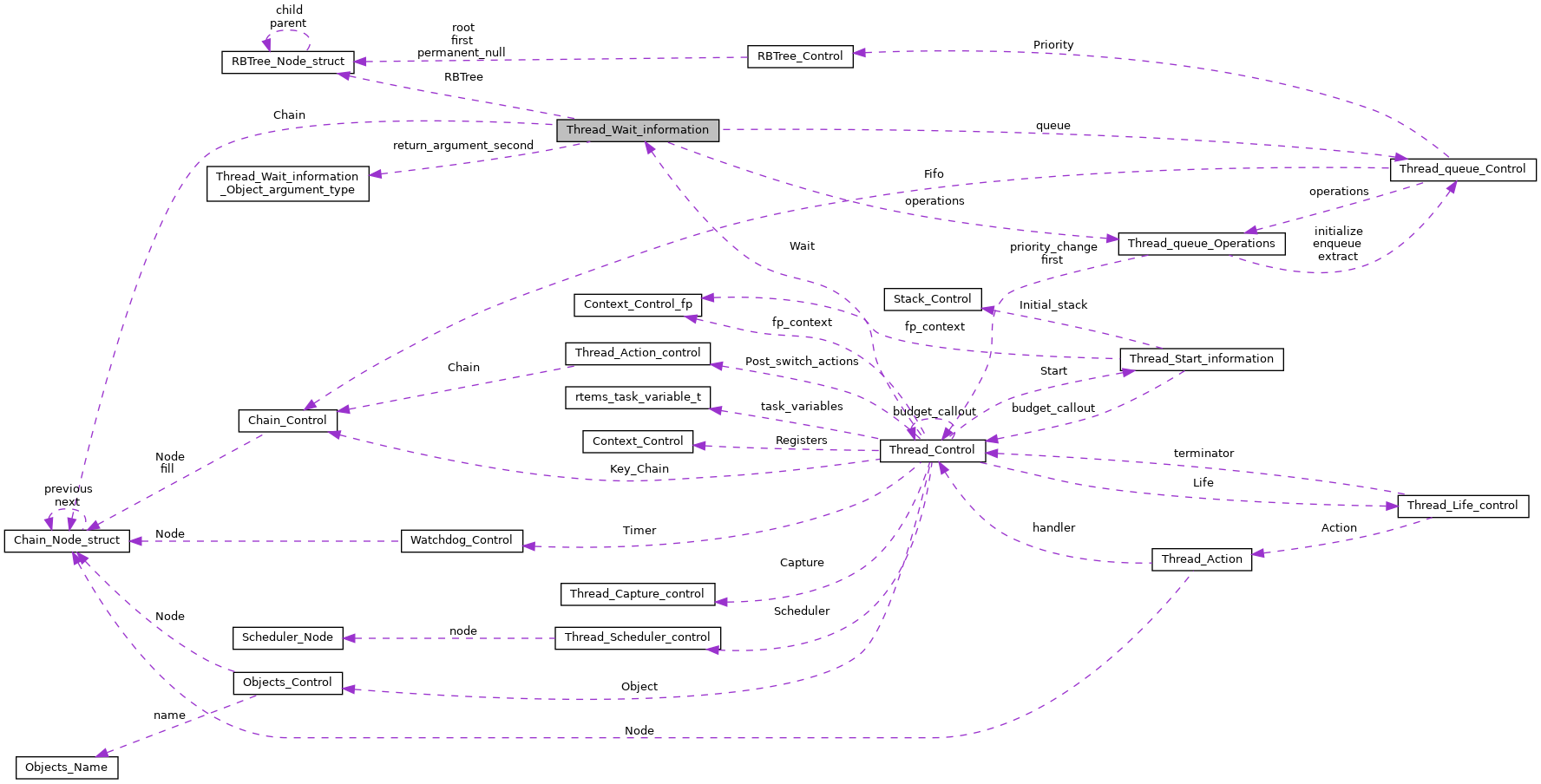

Collaboration diagram for Thread_Wait_information:

[legend]

Data Fields
union {
Chain_Node Chain
	A node for chains.

RBTree_Node RBTree
	A node for red-black trees.

}	Node
	Node for thread queues.

Objects_Id	id
	This field is the Id of the object this thread is waiting upon. More...

uint32_t	count
	This field is used to return an integer while when blocked. More...

void *	return_argument
	This field is for a pointer to a user return argument. More...

Thread_Wait_information_Object_argument_type	return_argument_second
	This field is for a pointer to a second user return argument. More...

uint32_t	option
	This field contains any options in effect on this blocking operation. More...

uint32_t	return_code
	This field will contain the return status from a blocking operation. More...

uint32_t	timeout_code
	Code to set the timeout return code in _Thread_Timeout().

Thread_queue_Control *	queue
	The current thread queue. More...

Thread_Wait_flags	flags
	This field contains several flags used to control the wait class and state of a thread in case fine-grained locking is used.

const Thread_queue_Operations *	operations
	The current thread queue operations. More...

Detailed Description

Information required to manage a thread while it is blocked.

This contains the information required to manage a thread while it is blocked and to return information to it.

Field Documentation

◆ count

uint32_t Thread_Wait_information::count

This field is used to return an integer while when blocked.

◆ id

Objects_Id Thread_Wait_information::id

This field is the Id of the object this thread is waiting upon.

◆ operations

const Thread_queue_Operations* Thread_Wait_information::operations

The current thread queue operations.

This field is protected by the thread lock.

See also: _Thread_Lock_set() and _Thread_Wait_set_operations().

Referenced by _Thread_Wait_restore_default_operations(), and _Thread_Wait_set_operations().

◆ option

uint32_t Thread_Wait_information::option

This field contains any options in effect on this blocking operation.

◆ queue

Thread_queue_Control* Thread_Wait_information::queue

The current thread queue.

In case this field is NULL, then the thread is not blocked on a thread queue. This field is protected by the thread lock.

See also: _Thread_Lock_set() and _Thread_Wait_set_queue().

Referenced by _Thread_Wait_set_queue().

◆ return_argument

void* Thread_Wait_information::return_argument

This field is for a pointer to a user return argument.

◆ return_argument_second

Thread_Wait_information_Object_argument_type Thread_Wait_information::return_argument_second

This field is for a pointer to a second user return argument.

◆ return_code

uint32_t Thread_Wait_information::return_code

This field will contain the return status from a blocking operation.

Note: The following assumes that all API return codes can be treated as an uint32_t.

Referenced by _CORE_mutex_Seize_interrupt_trylock_body().

The documentation for this struct was generated from the following file:

/mnt/data0/chrisj/rtems/releases/rtems-release.git/4.11.3/ws-rtems/rtems-4.11.3/cpukit/score/include/rtems/score/thread.h
