RTEMS Run-Time Linker Object File Unresolved Relocations Table. More...

#include <rtems.h>
#include "rtl-obj-fwd.h"

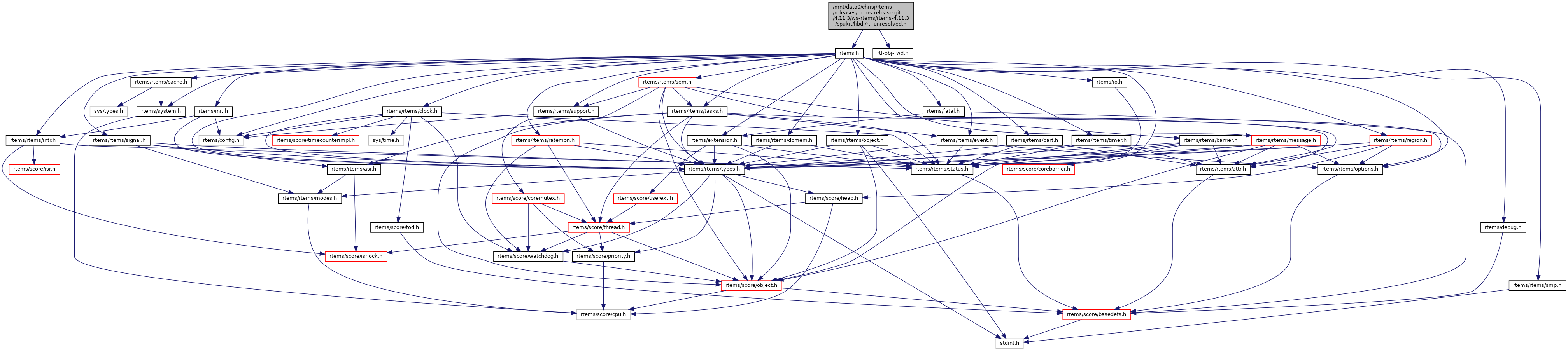

Include dependency graph for rtl-unresolved.h:

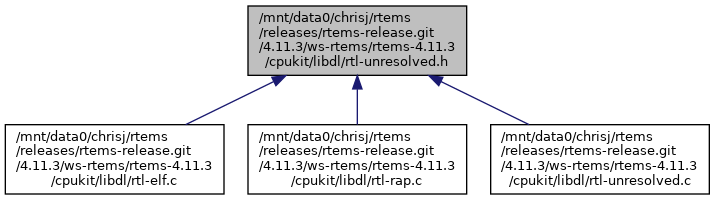

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rtems_rtl_unresolv_name_s
	Unresolved externals symbol names. More...

struct	rtems_rtl_unresolv_reloc_s
	Unresolved externals symbols require the relocation records to be held and references. More...

struct	rtems_rtl_unresolv_rec_s
	Unresolved externals records. More...

struct	rtems_rtl_unresolv_block_s
	Unresolved blocks. More...

struct	rtems_rtl_unresolved_s
	Unresolved table holds the names and relocations. More...

Typedefs
typedef uint32_t	rtems_rtl_word_t
	Hack to work around machine size. More...

typedef enum rtems_rtl_unresolved_rtype_e	rtems_rtl_unresolved_rtype_t
	The types of records in the blocks.

typedef struct rtems_rtl_unresolv_name_s	rtems_rtl_unresolv_name_t
	Unresolved externals symbol names. More...

typedef struct rtems_rtl_unresolv_reloc_s	rtems_rtl_unresolv_reloc_t
	Unresolved externals symbols require the relocation records to be held and references.

typedef struct rtems_rtl_unresolv_rec_s	rtems_rtl_unresolv_rec_t
	Unresolved externals records.

typedef struct rtems_rtl_unresolv_block_s	rtems_rtl_unresolv_block_t
	Unresolved blocks.

typedef struct rtems_rtl_unresolved_s	rtems_rtl_unresolved_t
	Unresolved table holds the names and relocations.

typedef bool	rtems_rtl_unresolved_iterator_t(rtems_rtl_unresolv_rec_t rec, void data)
	The iterator function used to iterate over the unresolved table. More...

Enumerations
enum	rtems_rtl_unresolved_rtype_e { rtems_rtl_unresolved_empty = 0, rtems_rtl_unresolved_name = 1, rtems_rtl_unresolved_reloc = 2 }
	The types of records in the blocks. More...

Functions
bool	rtems_rtl_unresolved_table_open (rtems_rtl_unresolved_t *unresolved, size_t block_records)
	Open an unresolved relocation table. More...

void	rtems_rtl_unresolved_table_close (rtems_rtl_unresolved_t *unresolved)
	Close the table and erase the blocks. More...

bool	rtems_rtl_unresolved_interate (rtems_rtl_unresolved_iterator_t iterator, void *data)
	Iterate over the table of unresolved entries.

bool	rtems_rtl_unresolved_add (rtems_rtl_obj_t obj, const uint16_t flags, const char name, const uint16_t sect, const rtems_rtl_word_t *rel)
	Add a relocation to the list of unresolved relocations. More...

void	rtems_rtl_unresolved_resolve (void)
	Resolve the unresolved symbols.

bool	rtems_rtl_unresolved_remove (rtems_rtl_obj_t obj, const char name, const uint16_t sect, const rtems_rtl_word_t *rel)
	Remove a relocation from the list of unresolved relocations. More...

Detailed Description

RTEMS Run-Time Linker Object File Unresolved Relocations Table.

The unresolved relocation table holds relocations in a loaded object file which reference unresolved external symbols. The support is needed to allow dependent object files to load. In the case of dependent object files one will have unresolved externals until the dependent object file is also loaded. There is no load order that resolves this.

The unresolved relocation table is a single table used by all object files with unresolved symbols. It made of blocks linked together where blocks are allocated as requiered. The table is always maintained compacted. That is as relocations are resolved and removed the table is compacted. The only pointer in the table is the object file poniter. This is used to identify which object the relocation belongs to. There are no linking or back pointers in the unresolved relocations table. The table is scanned for each object file's relocations. This is not fast but the table should be small and if it happens to grow large you have other more pressing issues to resolve in your application.

The table holds two (2) types of records:

Symbol name strings.

Relocations.

The symbol name a relocation references is held in a specific symbol name string record in the table the relocation record references. The record counts the number of references and the string is removed from the table when the reference count reaches 0. There can be many relocations referencing the symbol. The strings are referenced by a single 16bit unsigned integer which is the count of the string in the table.

The section the relocation is for in the object is the section number. The relocation data is series of machine word sized fields:

Offset in the section.

Relocation info (format specific)

Additional format specific data.

Typedef Documentation

◆ rtems_rtl_unresolv_name_t

typedef struct rtems_rtl_unresolv_name_s rtems_rtl_unresolv_name_t

Unresolved externals symbol names.

The names are reference counted and separate from the relocation records because a number of records could reference the same symbol name.

◆ rtems_rtl_unresolved_iterator_t

typedef bool rtems_rtl_unresolved_iterator_t(rtems_rtl_unresolv_rec_t *rec, void *data)

The iterator function used to iterate over the unresolved table.

Parameters

rec	The current iterator.
data	The user data.

Return values

true	The iterator has finished.
false	The iterator has not finished. Keep iterating.

◆ rtems_rtl_word_t

typedef uint32_t rtems_rtl_word_t

Hack to work around machine size.

This needs to be cleaned up to better support 64bit targets.

Enumeration Type Documentation

◆ rtems_rtl_unresolved_rtype_e

enum rtems_rtl_unresolved_rtype_e

The types of records in the blocks.

Enumerator

rtems_rtl_unresolved_empty

The records is empty.

Must always be 0

rtems_rtl_unresolved_name

The record is a name.

rtems_rtl_unresolved_reloc

The record is a relocation record.

Function Documentation

◆ rtems_rtl_unresolved_add()

bool rtems_rtl_unresolved_add	(	rtems_rtl_obj_t *	obj,
		const uint16_t	flags,
		const char *	name,
		const uint16_t	sect,
		const rtems_rtl_word_t *	rel
	)

Add a relocation to the list of unresolved relocations.

Parameters

unresolved	The unresolved symbol table.
obj	The object table the symbols are for.
flags	Format specific flags.
name	The symbol name the relocation references.
sect	The target section number the relocation references.
rel	The format specific relocation data.

Return values

true	The relocation has been added.
false	The relocation could not be added.

◆ rtems_rtl_unresolved_remove()

bool rtems_rtl_unresolved_remove	(	rtems_rtl_obj_t *	obj,
		const char *	name,
		const uint16_t	sect,
		const rtems_rtl_word_t *	rel
	)

Remove a relocation from the list of unresolved relocations.

Parameters

unresolved	The unresolved symbol table.
obj	The object table the symbols are for.
esyms	The exported symbol table.
size	The size of the table in bytes.

References rtems_rtl_unresolved().

◆ rtems_rtl_unresolved_table_close()

void rtems_rtl_unresolved_table_close ( rtems_rtl_unresolved_t * unresolved )

Close the table and erase the blocks.

Parameters

unreolved Close the unresolved table.

References rtems_rtl_unresolved_s::blocks, rtems_chain_first(), and rtems_chain_is_tail().

◆ rtems_rtl_unresolved_table_open()

bool rtems_rtl_unresolved_table_open	(	rtems_rtl_unresolved_t *	unresolved,
		size_t	block_records
	)

Open an unresolved relocation table.

Parameters

unresolv	The unresolved table to open.
block_records	The number of records per block allocated.

Return values

true	The table is open.
false	The unresolved relocation table could not created. The RTL error has the error.

References rtems_rtl_unresolved_s::block_recs, rtems_rtl_unresolved_s::blocks, and rtems_chain_initialize_empty().
