captureimpl.h File Reference

Capture Implementation file. More...

#include "capture.h"

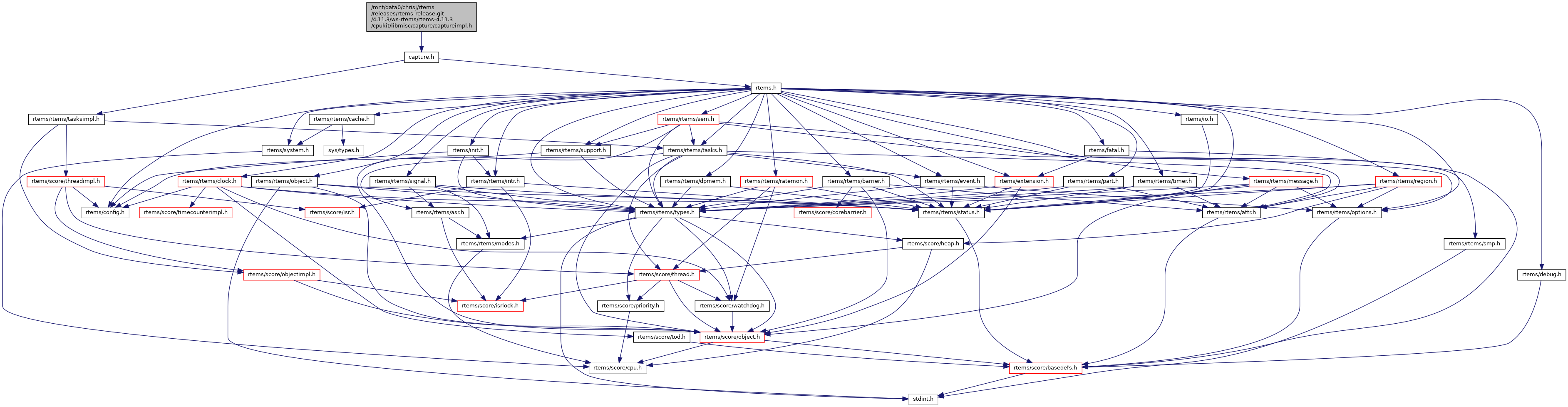

Include dependency graph for captureimpl.h:

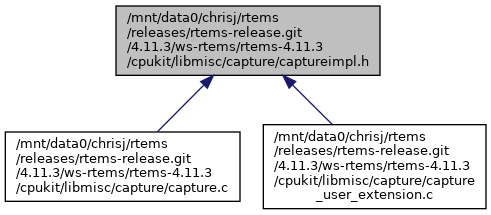

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

#define	RTEMS_CAPTURE_INIT   (1u << 0)
#define	RTEMS_CAPTURE_ON   (1U << 1)
#define	RTEMS_CAPTURE_NO_MEMORY   (1U << 2)
#define	RTEMS_CAPTURE_TRIGGERED   (1U << 3)
#define	RTEMS_CAPTURE_GLOBAL_WATCH   (1U << 4)
#define	RTEMS_CAPTURE_ONLY_MONITOR   (1U << 5)
#define	RTEMS_CAPTURE_OVERFLOW   (1U << 0)
#define	RTEMS_CAPTURE_READER_ACTIVE   (1U << 1)
#define	RTEMS_CAPTURE_READER_WAITING   (1U << 2)
#define	rtems_capture_begin_add_record(_task, _events, _size, _rec)
	Capture begin add record. More...
#define	rtems_capture_end_add_record(_rec)
	Capture end add record. More...
void	rtems_capture_set_extension_index (int index)
	Capture set extension index. More...
int	rtems_capture_get_extension_index (void)
	Capture get extension index. More...
uint32_t	rtems_capture_get_flags (void)
	Capture get flags. More...
void	rtems_capture_set_flags (uint32_t mask)
	Capture set flags. More...
rtems_status_code	rtems_capture_user_extension_open (void)
	Capture user extension open. More...
rtems_status_code	rtems_capture_user_extension_close (void)
	Capture user extension close. More...
bool	rtems_capture_trigger (rtems_tcb *ft, rtems_tcb *tt, uint32_t events)
	Capture trigger. More...
bool	rtems_capture_filter (rtems_tcb *task, uint32_t events)
	Capture filter. More...
void	rtems_capture_get_time (rtems_capture_time_t *time)
	Capture returns the current time. More...
void *	rtems_capture_record_open (rtems_tcb *task, uint32_t events, size_t size, rtems_interrupt_lock_context *lock_context)
	Capture record open. More...
void	rtems_capture_record_close (void *rec, rtems_interrupt_lock_context *lock_context)
	Capture record close. More...
void	rtems_capture_print_trace_records (int total, bool csv)
	Capture print trace records. More...
void	rtems_capture_print_timestamp (uint64_t uptime)
	Capture print timestamp. More...
void	rtems_capture_print_record_task (uint32_t cpu, rtems_capture_record_t *rec)
	Capture print record task. More...
void	rtems_capture_print_record_capture (uint32_t cpu, rtems_capture_record_t *rec, uint64_t diff)
	Capture print capture record. More...
void	rtems_capture_print_watch_list (void)
	Capture print watch list. More...

Detailed Description

Capture Implementation file.

This file contains an interface between the capture engine and capture user extension methods.

Macro Definition Documentation

rtems_capture_begin_add_record

#define rtems_capture_begin_add_record	(		_task,
			_events,
			_size,
			_rec
	)

Value:

do { \
    rtems_interrupt_lock_context _lock_context; \
    *_rec = rtems_capture_record_open( _task, _events, _size, &_lock_context );

Capture begin add record.

This function opens a record for writing and inserts the header information

Parameters

[in]	_task	specifies the capture task block
[in]	_events	specifies the events
[in]	_size	specifies the expected size of the capture record
[out]	_rec	specifies the next write point in the capture record

rtems_capture_end_add_record

#define rtems_capture_end_add_record

(

_rec

)

Value:

rtems_capture_record_close( _rec, &_lock_context ); \
  } while (0)

Capture end add record.

This function completes the add capture record process

Parameters

[in]

_rec

specifies the end of the capture record

Function Documentation

rtems_capture_filter()

bool rtems_capture_filter	(	rtems_tcb *	task,
		uint32_t	events
	)

Capture filter.

This function this function specifies if the given task and events should be logged.

Parameters

[in]	task	specifies the capture task control block
[in]	events	specifies the events

Return values

This	method returns true if this data should be filtered from the log. It returns false if this data should be logged.

rtems_capture_get_extension_index()

int rtems_capture_get_extension_index

(

void

)

Capture get extension index.

This function rturns the extension index for the capture engine.

Return values

This	method returns the extension index.

rtems_capture_get_flags()

uint32_t rtems_capture_get_flags

(

void

)

Capture get flags.

This function gets the current flag settings for the capture engine.

Return values

This	method returns the global capture flags.

rtems_capture_get_time()

void rtems_capture_get_time

(

rtems_capture_time_t *

time

)

Capture returns the current time.

This function returns the current time. If a handler is provided by the user the time is gotten from that.

Parameters

[in]

time

specifies the capture time

Return values

This	method returns a nano-second time if no user handler is provided. Otherwise, it returns a resolution defined by the handler.

rtems_capture_print_record_capture()

void rtems_capture_print_record_capture	(	uint32_t	cpu,
		rtems_capture_record_t *	rec,
		uint64_t	diff
	)

Capture print capture record.

This function prints a user extension capture record.

Parameters

[in]	cpu	specifies the cpu the cpu the record was logged on.
[in]	rec	specifies the record.
[in]	diff	specifies the time between this and the last capture record.

rtems_capture_print_record_task()

void rtems_capture_print_record_task	(	uint32_t	cpu,
		rtems_capture_record_t *	rec
	)

Capture print record task.

This function prints a capture record task. This record contains information to identify a task. It is refrenced in other records by the task id.

Parameters

[in]	cpu	specifies the cpu the cpu the record was logged on.
[in]	rec	specifies the task record.

References rtems_capture_print_timestamp().

Referenced by rtems_capture_print_timestamp().

rtems_capture_print_timestamp()

void rtems_capture_print_timestamp

(

uint64_t

uptime

)

Capture print timestamp.

This function prints uptime in a timestamp format.

Parameters

[in]

uptime

specifies the timestamp to print

References rtems_capture_print_record_task().

Referenced by rtems_capture_print_record_task().

rtems_capture_print_trace_records()

void rtems_capture_print_trace_records	(	int	total,
		bool	csv
	)

Capture print trace records.

This function reads, prints and releases up to total trace records in either a csv format or an ascii table format.

Parameters

[in]	total	specifies the number of records to print
[in]	csv	specifies a comma seperated value format

References read(), rtems_capture_read(), rtems_get_processor_count(), rtems_status_text(), and RTEMS_SUCCESSFUL.

rtems_capture_print_watch_list()

void rtems_capture_print_watch_list

(

void

)

Capture print watch list.

This function prints a capture watch list

References rtems_capture_get_control_list(), rtems_capture_watch_get_ceiling(), rtems_capture_watch_get_floor(), and rtems_capture_watch_global_on().

rtems_capture_record_close()

void rtems_capture_record_close	(	void *	rec,
		rtems_interrupt_lock_context *	lock_context
	)

Capture record close.

This function closes writing to capure record and releases the lock that was held on the record. This method should only be used by rtems_capture_end_add_record.

Parameters

[in]	rec	specifies the record
[out]	lock_context	specifies the lock context

References rtems_interrupt_lock_release.

rtems_capture_record_open()

void* rtems_capture_record_open	(	rtems_tcb *	task,
		uint32_t	events,
		size_t	size,
		rtems_interrupt_lock_context *	lock_context
	)

Capture record open.

This function allocates a record and fills in the header information. It does a lock acquire which will remain in effect until rtems_capture_record_close is called. This method should only be used by rtems_capture_begin_add_record.

Parameters

[in]	task	specifies the caputre task block
[in]	events	specifies the events
[in]	size	specifies capture record size
[out]	lock_context	specifies the lock context

Return values

This	method returns a pointer to the next location in the capture record to store data.

rtems_capture_set_extension_index()

void rtems_capture_set_extension_index

(

int

index

)

Capture set extension index.

This function is used to set the extension index for the capture engine.

Parameters

[in]

index

specifies the extension index to be used for capture engine data.

rtems_capture_set_flags()

void rtems_capture_set_flags

(

uint32_t

mask

)

Capture set flags.

This function sets a flag in the capture engine

Parameters

[in]

mask

specifies the flag to set

rtems_capture_trigger()

bool rtems_capture_trigger	(	rtems_tcb *	ft,
		rtems_tcb *	tt,
		uint32_t	events
	)

Capture trigger.

This function checks if we have triggered or if this event is a cause of a trigger.

Parameters

[in]	ft	specifies specifices the capture from task
[in]	tt	specifies specifices the capture to task
[in]	events	specifies the events

Return values

This	method returns true if we have triggered or if the event is a cause of a trigger.

rtems_capture_user_extension_close()

rtems_status_code rtems_capture_user_extension_close

(

void

)

Capture user extension close.

This function closes the capture user extensions.

Return values

This	method returns RTEMS_SUCCESSFUL upon a successful delete of the user extensions.

References rtems_extension_delete().

rtems_capture_user_extension_open()

rtems_status_code rtems_capture_user_extension_open

(

void

)

Capture user extension open.

This function creates the capture user extensions.

Return values

This	method returns RTEMS_SUCCESSFUL upon successful creation of the user extensions.
