RTEMS CPU Kit with SuperCore  4.11.3
Data Structures | Macros
udp_var.h File Reference
#include <netinet/ip_var.h>
#include <netinet/udp.h>

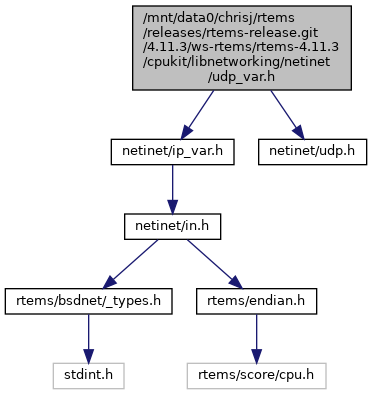

Include dependency graph for udp_var.h:

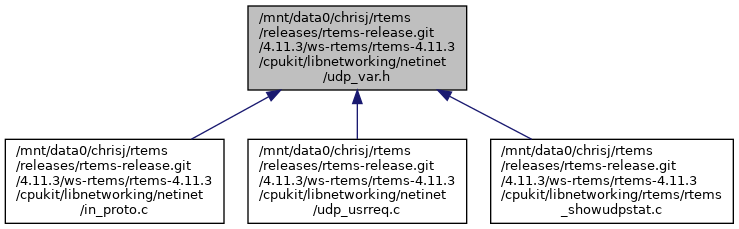

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  udpiphdr

struct  udpstat


Macros

#define ui_next   ui_i.ih_next

#define ui_prev   ui_i.ih_prev

#define ui_x1   ui_i.ih_x1

#define ui_pr   ui_i.ih_pr

#define ui_len   ui_i.ih_len

#define ui_src   ui_i.ih_src

#define ui_dst   ui_i.ih_dst

#define ui_sport   ui_u.uh_sport

#define ui_dport   ui_u.uh_dport

#define ui_ulen   ui_u.uh_ulen

#define ui_sum   ui_u.uh_sum

#define UDPCTL_CHECKSUM   1 /* checksum UDP packets */

#define UDPCTL_STATS   2 /* statistics (read-only) */

#define UDPCTL_MAXDGRAM   3 /* max datagram size */

#define UDPCTL_RECVSPACE   4 /* default receive buffer space */

#define UDPCTL_PCBLIST   5 /* list of PCBs for UDP sockets */

#define UDPCTL_MAXID   6

#define UDPCTL_NAMES


Macro Definition Documentation

◆ UDPCTL_NAMES

#define UDPCTL_NAMES
Value:
{ \
{ 0, 0 }, \
{ "checksum", CTLTYPE_INT }, \
{ "stats", CTLTYPE_STRUCT }, \
{ "maxdgram", CTLTYPE_INT }, \
{ "recvspace", CTLTYPE_INT }, \
}
