termios.c File Reference

TERMIOS serial line support. More...

#include <rtems.h>
#include <rtems/libio.h>
#include <ctype.h>
#include <errno.h>
#include <stdio.h>
#include <stdlib.h>
#include <termios.h>
#include <unistd.h>
#include <sys/ttycom.h>
#include <rtems/termiostypes.h>

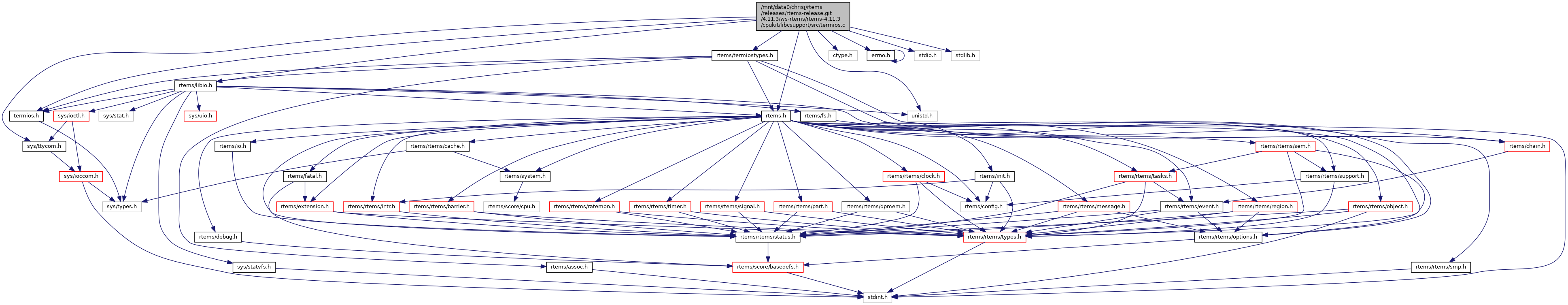

Include dependency graph for termios.c:

Macros
#define	CBUFSIZE   (rtems_termios_cbufsize)
#define	RAW_INPUT_BUFFER_SIZE   (rtems_termios_raw_input_size)
#define	RAW_OUTPUT_BUFFER_SIZE   (rtems_termios_raw_output_size)
#define	FL_IREQXOF   1U /* input queue requests stop of incoming data */
#define	FL_ISNTXOF   2U /* XOFF has been sent to other side of line */
#define	FL_IRTSOFF   4U /* RTS has been turned off for other side.. */
#define	FL_ORCVXOF   0x10U /* XOFF has been received */
#define	FL_OSTOP   0x20U /* output has been stopped due to XOFF */
#define	FL_MDRTS   0x100U /* input controlled with RTS/CTS handshake */
#define	FL_MDXON   0x200U /* input controlled with XON/XOFF protocol */
#define	FL_MDXOF   0x400U /* output controlled with XON/XOFF protocol */
#define	NODISC(n)
#define	TERMIOS_TXTASK_PRIO   10
#define	TERMIOS_RXTASK_PRIO   9
#define	TERMIOS_TXTASK_STACKSIZE   1024
#define	TERMIOS_RXTASK_STACKSIZE   1024
#define	TERMIOS_TX_START_EVENT   RTEMS_EVENT_1
#define	TERMIOS_TX_TERMINATE_EVENT   RTEMS_EVENT_0
#define	TERMIOS_RX_PROC_EVENT   RTEMS_EVENT_1
#define	TERMIOS_RX_TERMINATE_EVENT   RTEMS_EVENT_0

Functions
rtems_status_code	rtems_termios_device_install (const char *device_file, rtems_device_major_number major, rtems_device_minor_number minor, const rtems_termios_device_handler *handler, const rtems_termios_device_flow *flow, rtems_termios_device_context *context)
	Installs a Termios device. More...
rtems_status_code	rtems_termios_device_remove (const char *device_file, rtems_device_major_number major, rtems_device_minor_number minor)
	Removes a Termios device. More...
rtems_status_code	rtems_termios_device_open (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Opens an installed Termios device. More...
rtems_status_code	rtems_termios_open (rtems_device_major_number major, rtems_device_minor_number minor, void *arg, const rtems_termios_callbacks *callbacks)
rtems_status_code	rtems_termios_close (void *arg)
rtems_status_code	rtems_termios_device_close (void *arg)
	Closes an installed Termios device. More...
rtems_status_code	rtems_termios_bufsize (size_t cbufsize, size_t raw_input, size_t raw_output)
rtems_status_code	rtems_termios_ioctl (void *arg)
void	rtems_termios_puts (const void *_buf, size_t len, struct rtems_termios_tty *tty)
rtems_status_code	rtems_termios_write (void *arg)
rtems_status_code	rtems_termios_read (void *arg)
void	rtems_termios_rxirq_occured (struct rtems_termios_tty *tty)
int	rtems_termios_enqueue_raw_characters (void *ttyp, const char *buf, int len)
int	rtems_termios_dequeue_characters (void *ttyp, int len)

Variables
struct rtems_termios_linesw	rtems_termios_linesw [MAXLDISC]
int	rtems_termios_nlinesw
rtems_id	rtems_termios_ttyMutex

Detailed Description

TERMIOS serial line support.

Macro Definition Documentation

NODISC

#define NODISC

(

n

)

Value:

{ NULL,  NULL,  NULL,  NULL, \
    NULL,  NULL,  NULL,  NULL }

Function Documentation

rtems_termios_device_close()

rtems_status_code rtems_termios_device_close

(

void *

arg

)

Closes an installed Termios device.

Return values

RTEMS_SUCCESSFUL

Successful operation.

See also

rtems_termios_device_install().

References rtems_fatal_error_occurred(), RTEMS_NO_TIMEOUT, rtems_semaphore_obtain(), RTEMS_SUCCESSFUL, and RTEMS_WAIT.

rtems_termios_device_install()

rtems_status_code rtems_termios_device_install	(	const char *	device_file,
		rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		const rtems_termios_device_handler *	handler,
		const rtems_termios_device_flow *	flow,
		rtems_termios_device_context *	context
	)

Installs a Termios device.

Parameters

[in]	device_file	If not NULL, then a device file for the specified major and minor number will be created.
[in]	major	The device major number of the corresponding device driver.
[in]	minor	The device minor number of the corresponding device driver.
[in]	handler	The device handler. It must be persistent throughout the installed time of the device.
[in]	flow	The device flow control handler. The device flow control handler are optional and may be NULL. If present must be persistent throughout the installed time of the device.
[in]	context	The device context. It must be persistent throughout the installed time of the device.

Return values

RTEMS_SUCCESSFUL	Successful operation.
RTEMS_NO_MEMORY	Not enough memory to create a device node.
RTEMS_UNSATISFIED	Creation of the device file failed.
RTEMS_RESOURCE_IN_USE	There exists a device node for this major and minor number pair.
RTEMS_INCORRECT_STATE	Termios is not initialized.

See also

rtems_termios_device_remove(), rtems_termios_device_open(), rtems_termios_device_close() and rtems_termios_get_device_context().

rtems_termios_device_open()

rtems_status_code rtems_termios_device_open	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Opens an installed Termios device.

See also

rtems_termios_device_install().

References rtems_termios_tty::device_node, RTEMS_NO_TIMEOUT, rtems_semaphore_obtain(), RTEMS_SUCCESSFUL, and RTEMS_WAIT.

rtems_termios_device_remove()

rtems_status_code rtems_termios_device_remove	(	const char *	device_file,
		rtems_device_major_number	major,
		rtems_device_minor_number	minor
	)

Removes a Termios device.

Parameters

[in]	device_file	If not NULL, then the device file to remove.
[in]	major	The device major number of the corresponding device driver.
[in]	minor	The device minor number of the corresponding device driver.

Return values

RTEMS_SUCCESSFUL	Successful operation.
RTEMS_INVALID_ID	There is no device installed with this major and minor number pair.
RTEMS_RESOURCE_IN_USE	This device is currently in use.
RTEMS_UNSATISFIED	Removal of the device file failed.
RTEMS_INCORRECT_STATE	Termios is not initialized.

See also

rtems_termios_device_install().

References rtems_termios_tty::device_node, RTEMS_INCORRECT_STATE, RTEMS_NO_TIMEOUT, rtems_semaphore_obtain(), RTEMS_SUCCESSFUL, and RTEMS_WAIT.

Variable Documentation

rtems_termios_linesw

struct rtems_termios_linesw rtems_termios_linesw[MAXLDISC]

Initial value:

=
{
  NODISC(0),
  NODISC(1),
  NODISC(2),
  NODISC(3),
  NODISC(4),
  NODISC(5),
  NODISC(6),
  NODISC(7),
}

rtems_termios_nlinesw

int rtems_termios_nlinesw

Initial value:

=
       sizeof (rtems_termios_linesw) / sizeof (rtems_termios_linesw[0])
