RTEMS termios device support internal data structures. More...

#include <rtems.h>
#include <rtems/libio.h>
#include <rtems/assoc.h>
#include <rtems/chain.h>
#include <stdint.h>
#include <termios.h>

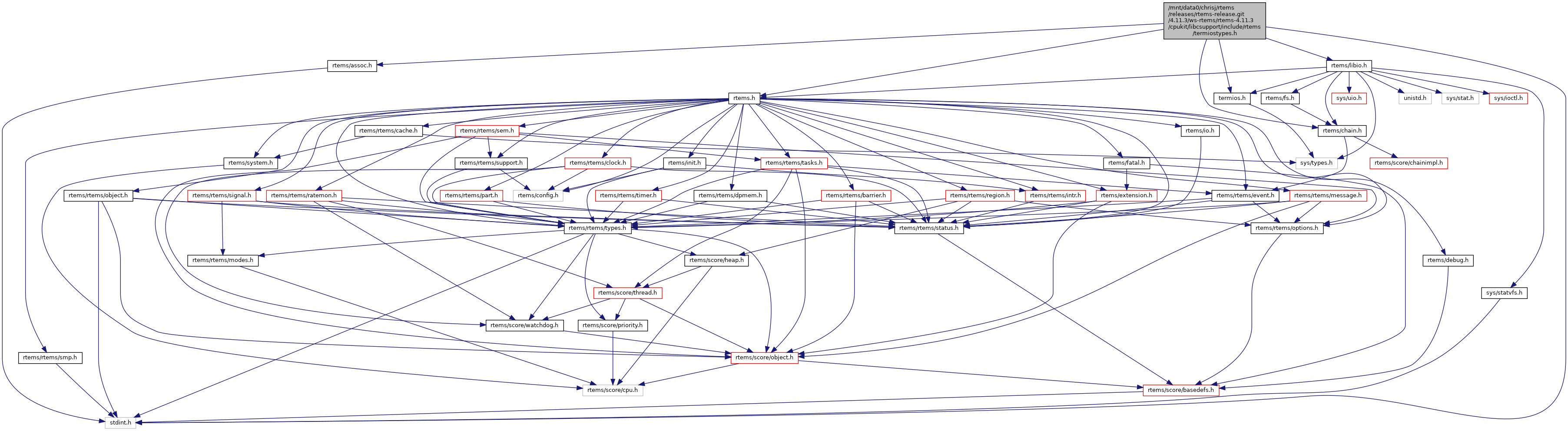

Include dependency graph for termiostypes.h:

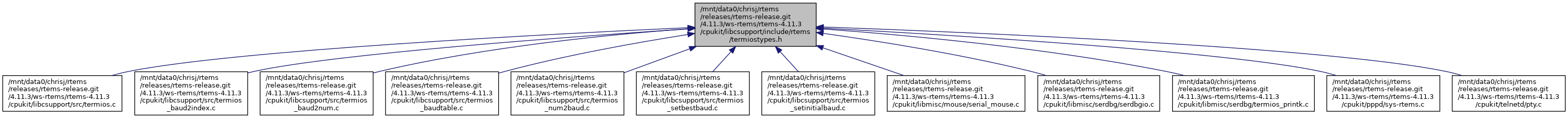

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ttywakeup

struct	rtems_termios_rawbuf

struct	rtems_termios_device_context
	Termios device context. More...

struct	rtems_termios_device_handler
	Termios device handler. More...

struct	rtems_termios_device_flow
	Termios device flow control handler. More...

struct	rtems_termios_device_node
	Termios device node for installed devices. More...

struct	rtems_termios_tty

struct	rtems_termios_linesw

Macros
#define	RTEMS_TERMIOS_DEVICE_CONTEXT_INITIALIZER(name) { RTEMS_INTERRUPT_LOCK_INITIALIZER( name ) }
	Initializer for static initialization of Termios device contexts. More...

#define	TTYDISC 0 /* termios tty line discipline */

#define	TABLDISC 3 /* tablet discipline */

#define	SLIPDISC 4 /* serial IP discipline */

#define	PPPDISC 5 /* PPP discipline */

#define	MAXLDISC 8

Typedefs
typedef struct rtems_termios_device_context	rtems_termios_device_context
	Termios device context. More...

typedef struct rtems_termios_device_node	rtems_termios_device_node
	Termios device node for installed devices. More...

typedef struct rtems_termios_tty	rtems_termios_tty

typedef uint32_t	rtems_termios_baud_t

Enumerations
enum	rtems_termios_device_mode { TERMIOS_POLLED, TERMIOS_IRQ_DRIVEN, TERMIOS_TASK_DRIVEN }

Functions
RTEMS_INLINE_ROUTINE void	rtems_termios_device_context_initialize (rtems_termios_device_context context, const char name)
	Initializes a device context. More...

rtems_status_code	rtems_termios_device_install (const char device_file, rtems_device_major_number major, rtems_device_minor_number minor, const rtems_termios_device_handler handler, const rtems_termios_device_flow flow, rtems_termios_device_context context)
	Installs a Termios device. More...

rtems_status_code	rtems_termios_device_remove (const char *device_file, rtems_device_major_number major, rtems_device_minor_number minor)
	Removes a Termios device. More...

rtems_status_code	rtems_termios_device_open (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Opens an installed Termios device. More...

rtems_status_code	rtems_termios_device_close (void *arg)
	Closes an installed Termios device. More...

RTEMS_INLINE_ROUTINE void *	rtems_termios_get_device_context (const rtems_termios_tty *tty)
	Returns the device context of an installed Termios device. More...

RTEMS_INLINE_ROUTINE void	rtems_termios_device_lock_acquire (rtems_termios_device_context context, rtems_interrupt_lock_context lock_context)
	Acquires the device lock. More...

RTEMS_INLINE_ROUTINE void	rtems_termios_device_lock_release (rtems_termios_device_context context, rtems_interrupt_lock_context lock_context)
	Releases the device lock. More...

void	rtems_termios_set_best_baud (struct termios *term, uint32_t baud)
	Sets the best baud value in the Termios control. More...

void	rtems_termios_rxirq_occured (struct rtems_termios_tty *tty)

void	rtems_termios_puts (const void buf, size_t len, struct rtems_termios_tty tty)

tcflag_t	rtems_termios_number_to_baud (rtems_termios_baud_t baud)
	Converts the Integral Baud value baud to the Termios Control Flag Representation. More...

rtems_termios_baud_t	rtems_termios_baud_to_number (tcflag_t c_cflag)
	Convert Baud Part of Termios control flags to an integral Baud Value. More...

int	rtems_termios_baud_to_index (rtems_termios_baud_t termios_baud)
	Convert Bxxx Constant to Index.

int	rtems_termios_set_initial_baud (struct rtems_termios_tty *tty, rtems_termios_baud_t baud)
	Sets the initial baud in the Termios context tty. More...

Variables
struct rtems_termios_linesw	rtems_termios_linesw []

int	rtems_termios_nlinesw

const rtems_assoc_t	rtems_termios_baud_table []
	RTEMS Termios Baud Table.

Detailed Description

RTEMS termios device support internal data structures.

Macro Definition Documentation

◆ RTEMS_TERMIOS_DEVICE_CONTEXT_INITIALIZER

#define RTEMS_TERMIOS_DEVICE_CONTEXT_INITIALIZER ( name ) { RTEMS_INTERRUPT_LOCK_INITIALIZER( name ) }

Initializer for static initialization of Termios device contexts.

Parameters

name	The name for the interrupt lock. It must be a string. The name is only used if profiling is enabled.

Typedef Documentation

◆ rtems_termios_device_context

typedef struct rtems_termios_device_context rtems_termios_device_context

Termios device context.

See also: RTEMS_TERMIOS_DEVICE_CONTEXT_INITIALIZER(), rtems_termios_device_context_initialize() and rtems_termios_device_install().

◆ rtems_termios_device_node

typedef struct rtems_termios_device_node rtems_termios_device_node

Termios device node for installed devices.

See also: rtems_termios_device_install().

Function Documentation

◆ rtems_termios_baud_to_number()

rtems_termios_baud_t rtems_termios_baud_to_number ( tcflag_t c_cflag )

Convert Baud Part of Termios control flags to an integral Baud Value.

There is no need to mask the c_cflag with CBAUD.

Return values

0	Invalid baud value or a baud value of `B0`.
other	Integral baud value.

◆ rtems_termios_device_close()

rtems_status_code rtems_termios_device_close ( void * arg )

Closes an installed Termios device.

Return values

RTEMS_SUCCESSFUL Successful operation.

See also: rtems_termios_device_install().

References rtems_fatal_error_occurred(), RTEMS_NO_TIMEOUT, rtems_semaphore_obtain(), RTEMS_SUCCESSFUL, and RTEMS_WAIT.

◆ rtems_termios_device_context_initialize()

RTEMS_INLINE_ROUTINE void rtems_termios_device_context_initialize	(	rtems_termios_device_context *	context,
		const char *	name
	)

Initializes a device context.

Parameters

[in]	context	The Termios device context.
[in]	name	The name for the interrupt lock. This name must be a string persistent throughout the life time of this lock. The name is only used if profiling is enabled.

References rtems_interrupt_lock_initialize.

◆ rtems_termios_device_install()

rtems_status_code rtems_termios_device_install	(	const char *	device_file,
		rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		const rtems_termios_device_handler *	handler,
		const rtems_termios_device_flow *	flow,
		rtems_termios_device_context *	context
	)

Installs a Termios device.

Parameters

[in]	device_file	If not `NULL`, then a device file for the specified major and minor number will be created.
[in]	major	The device major number of the corresponding device driver.
[in]	minor	The device minor number of the corresponding device driver.
[in]	handler	The device handler. It must be persistent throughout the installed time of the device.
[in]	flow	The device flow control handler. The device flow control handler are optional and may be `NULL`. If present must be persistent throughout the installed time of the device.
[in]	context	The device context. It must be persistent throughout the installed time of the device.

Return values

RTEMS_SUCCESSFUL	Successful operation.
RTEMS_NO_MEMORY	Not enough memory to create a device node.
RTEMS_UNSATISFIED	Creation of the device file failed.
RTEMS_RESOURCE_IN_USE	There exists a device node for this major and minor number pair.
RTEMS_INCORRECT_STATE	Termios is not initialized.

See also: rtems_termios_device_remove(), rtems_termios_device_open(), rtems_termios_device_close() and rtems_termios_get_device_context().

◆ rtems_termios_device_lock_acquire()

RTEMS_INLINE_ROUTINE void rtems_termios_device_lock_acquire	(	rtems_termios_device_context *	context,
		rtems_interrupt_lock_context *	lock_context
	)

Acquires the device lock.

Parameters

[in]	context	The device context.
[in]	lock_context	The local interrupt lock context for an acquire and release pair.

References rtems_interrupt_lock_acquire.

◆ rtems_termios_device_lock_release()

RTEMS_INLINE_ROUTINE void rtems_termios_device_lock_release	(	rtems_termios_device_context *	context,
		rtems_interrupt_lock_context *	lock_context
	)

Releases the device lock.

Parameters

[in]	context	The device context.
[in]	lock_context	The local interrupt lock context for an acquire and release pair.

References rtems_interrupt_lock_release, and rtems_termios_set_best_baud().

◆ rtems_termios_device_open()

rtems_status_code rtems_termios_device_open	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Opens an installed Termios device.

See also: rtems_termios_device_install().

References rtems_termios_tty::device_node, RTEMS_NO_TIMEOUT, rtems_semaphore_obtain(), RTEMS_SUCCESSFUL, and RTEMS_WAIT.

◆ rtems_termios_device_remove()

rtems_status_code rtems_termios_device_remove	(	const char *	device_file,
		rtems_device_major_number	major,
		rtems_device_minor_number	minor
	)

Removes a Termios device.

Parameters

[in]	device_file	If not `NULL`, then the device file to remove.
[in]	major	The device major number of the corresponding device driver.
[in]	minor	The device minor number of the corresponding device driver.

Return values

RTEMS_SUCCESSFUL	Successful operation.
RTEMS_INVALID_ID	There is no device installed with this major and minor number pair.
RTEMS_RESOURCE_IN_USE	This device is currently in use.
RTEMS_UNSATISFIED	Removal of the device file failed.
RTEMS_INCORRECT_STATE	Termios is not initialized.

See also: rtems_termios_device_install().

References rtems_termios_tty::device_node, RTEMS_INCORRECT_STATE, RTEMS_NO_TIMEOUT, rtems_semaphore_obtain(), RTEMS_SUCCESSFUL, and RTEMS_WAIT.

◆ rtems_termios_get_device_context()

RTEMS_INLINE_ROUTINE void* rtems_termios_get_device_context ( const rtems_termios_tty * tty )

Returns the device context of an installed Termios device.

Parameters

[in] tty The Termios control.

References rtems_termios_tty::device_context.

◆ rtems_termios_number_to_baud()

tcflag_t rtems_termios_number_to_baud ( rtems_termios_baud_t baud )

Converts the Integral Baud value baud to the Termios Control Flag Representation.

Return values

B0	Invalid baud value or a baud value of 0.
other	Baud constant according to baud.

Referenced by rtems_termios_set_initial_baud().

◆ rtems_termios_set_best_baud()

void rtems_termios_set_best_baud	(	struct termios *	term,
		uint32_t	baud
	)

Sets the best baud value in the Termios control.

The valid Termios baud values are between 0 and 460800. The Termios baud value is chosen which minimizes the difference to the value specified.

Parameters

[in]	term	The Termios attributes.
[in]	baud	The current baud setting of the device.

References rtems_termios_baud_table.

Referenced by rtems_termios_device_lock_release().

◆ rtems_termios_set_initial_baud()

int rtems_termios_set_initial_baud	(	struct rtems_termios_tty *	tty,
		rtems_termios_baud_t	baud
	)

Sets the initial baud in the Termios context tty.

Return values

0	Successful operation.
-1	Invalid baud value.

References rtems_termios_number_to_baud().
