The following defines the control block used to manage each barrier. More...
#include <corebarrier.h>

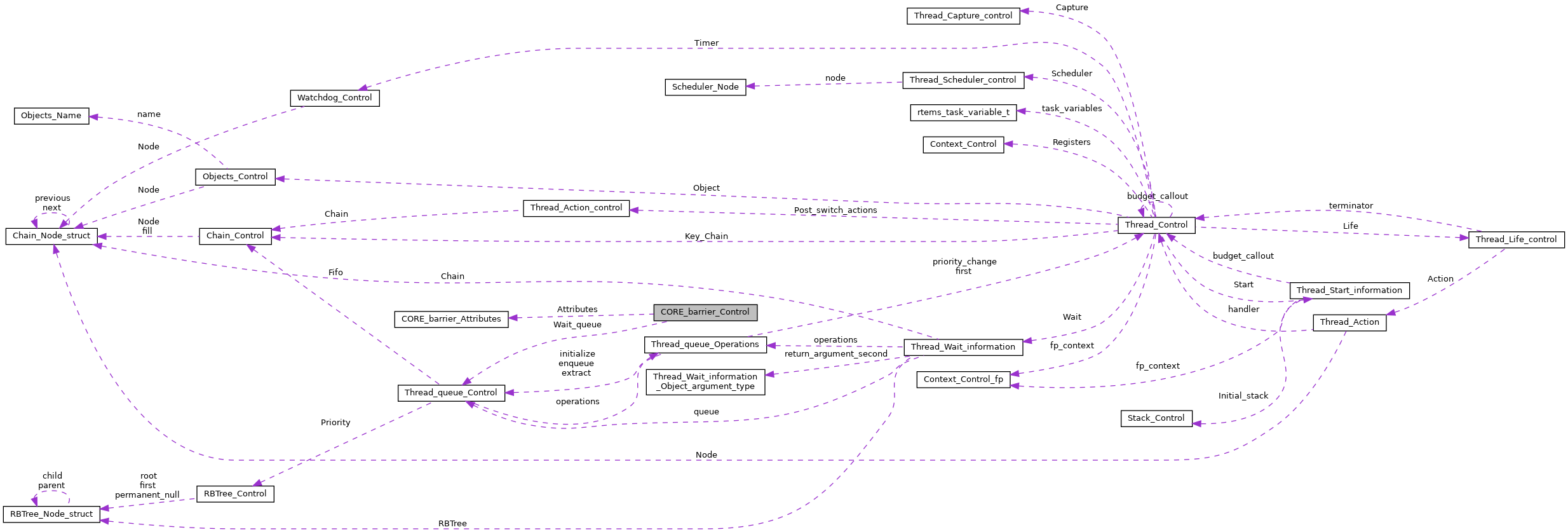

Collaboration diagram for CORE_barrier_Control:
Data Fields | |
| Thread_queue_Control | Wait_queue |
| This field is the Waiting Queue used to manage the set of tasks which are blocked waiting for the barrier to be released. | |
| CORE_barrier_Attributes | Attributes |
| This element is the set of attributes which define this instance's behavior. | |
| uint32_t | number_of_waiting_threads |
| This element contains the current number of thread waiting for this barrier to be released. More... | |
Detailed Description
The following defines the control block used to manage each barrier.
Field Documentation
◆ number_of_waiting_threads
| uint32_t CORE_barrier_Control::number_of_waiting_threads |
This element contains the current number of thread waiting for this barrier to be released.
Referenced by _CORE_barrier_Get_number_of_waiting_threads(), _CORE_barrier_Initialize(), and _CORE_barrier_Release().
The documentation for this struct was generated from the following file:
- /mnt/data0/chrisj/rtems/releases/rtems-release.git/4.11.3/ws-rtems/rtems-4.11.3/cpukit/score/include/rtems/score/corebarrier.h
