pcireg.h File Reference

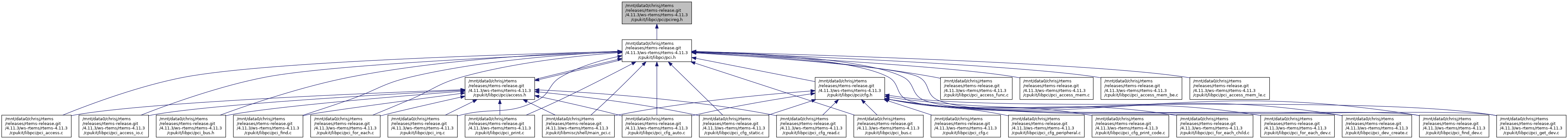

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define PCI_DOMAINMAX   65535 /* highest supported domain number */

#define PCI_BUSMAX   255 /* highest supported bus number */

#define PCI_SLOTMAX   31 /* highest supported slot number */

#define PCI_FUNCMAX   7 /* highest supported function number */

#define PCI_REGMAX   255 /* highest supported config register addr. */

#define PCIE_REGMAX   4095 /* highest supported config register addr. */

#define PCI_MAXHDRTYPE   2

#define PCIE_ARI_SLOTMAX   0

#define PCIE_ARI_FUNCMAX   255

#define PCI_RID_BUS_SHIFT   8

#define PCI_RID_SLOT_SHIFT   3

#define PCI_RID_FUNC_SHIFT   0

#define PCI_RID(bus, slot, func)

#define PCI_ARI_RID(bus, func)

#define PCI_RID2BUS(rid)   (((rid) >> PCI_RID_BUS_SHIFT) & PCI_BUSMAX)

#define PCI_RID2SLOT(rid)   (((rid) >> PCI_RID_SLOT_SHIFT) & PCI_SLOTMAX)

#define PCI_RID2FUNC(rid)   (((rid) >> PCI_RID_FUNC_SHIFT) & PCI_FUNCMAX)

#define PCIE_ARI_SLOT(func)   (((func) >> PCI_RID_SLOT_SHIFT) & PCI_SLOTMAX)

#define PCIE_ARI_FUNC(func)   (((func) >> PCI_RID_FUNC_SHIFT) & PCI_FUNCMAX)

#define PCIR_DEVVENDOR   0x00

#define PCIR_VENDOR   0x00

#define PCIR_DEVICE   0x02

#define PCIR_COMMAND   0x04

#define PCIM_CMD_PORTEN   0x0001

#define PCIM_CMD_MEMEN   0x0002

#define PCIM_CMD_BUSMASTEREN   0x0004

#define PCIM_CMD_SPECIALEN   0x0008

#define PCIM_CMD_MWRICEN   0x0010

#define PCIM_CMD_PERRESPEN   0x0040

#define PCIM_CMD_SERRESPEN   0x0100

#define PCIM_CMD_BACKTOBACK   0x0200

#define PCIM_CMD_INTxDIS   0x0400

#define PCIR_STATUS   0x06

#define PCIM_STATUS_INTxSTATE   0x0008

#define PCIM_STATUS_CAPPRESENT   0x0010

#define PCIM_STATUS_66CAPABLE   0x0020

#define PCIM_STATUS_BACKTOBACK   0x0080

#define PCIM_STATUS_MDPERR   0x0100

#define PCIM_STATUS_SEL_FAST   0x0000

#define PCIM_STATUS_SEL_MEDIMUM   0x0200

#define PCIM_STATUS_SEL_SLOW   0x0400

#define PCIM_STATUS_SEL_MASK   0x0600

#define PCIM_STATUS_STABORT   0x0800

#define PCIM_STATUS_RTABORT   0x1000

#define PCIM_STATUS_RMABORT   0x2000

#define PCIM_STATUS_SERR   0x4000

#define PCIM_STATUS_PERR   0x8000

#define PCIR_REVID   0x08

#define PCIR_PROGIF   0x09

#define PCIR_SUBCLASS   0x0a

#define PCIR_CLASS   0x0b

#define PCIR_CACHELNSZ   0x0c

#define PCIR_LATTIMER   0x0d

#define PCIR_HDRTYPE   0x0e

#define PCIM_HDRTYPE   0x7f

#define PCIM_HDRTYPE_NORMAL   0x00

#define PCIM_HDRTYPE_BRIDGE   0x01

#define PCIM_HDRTYPE_CARDBUS   0x02

#define PCIM_MFDEV   0x80

#define PCIR_BIST   0x0f

#define PCICAP_ID   0x0

#define PCICAP_NEXTPTR   0x1

#define PCIY_PMG   0x01 /* PCI Power Management */

#define PCIY_AGP   0x02 /* AGP */

#define PCIY_VPD   0x03 /* Vital Product Data */

#define PCIY_SLOTID   0x04 /* Slot Identification */

#define PCIY_MSI   0x05 /* Message Signaled Interrupts */

#define PCIY_CHSWP   0x06 /* CompactPCI Hot Swap */

#define PCIY_PCIX   0x07 /* PCI-X */

#define PCIY_HT   0x08 /* HyperTransport */

#define PCIY_VENDOR   0x09 /* Vendor Unique */

#define PCIY_DEBUG   0x0a /* Debug port */

#define PCIY_CRES   0x0b /* CompactPCI central resource control */

#define PCIY_HOTPLUG   0x0c /* PCI Hot-Plug */

#define PCIY_SUBVENDOR   0x0d /* PCI-PCI bridge subvendor ID */

#define PCIY_AGP8X   0x0e /* AGP 8x */

#define PCIY_SECDEV   0x0f /* Secure Device */

#define PCIY_EXPRESS   0x10 /* PCI Express */

#define PCIY_MSIX   0x11 /* MSI-X */

#define PCIY_SATA   0x12 /* SATA */

#define PCIY_PCIAF   0x13 /* PCI Advanced Features */

#define PCIR_EXTCAP   0x100

#define PCIM_EXTCAP_ID   0x0000ffff

#define PCIM_EXTCAP_VER   0x000f0000

#define PCIM_EXTCAP_NEXTPTR   0xfff00000

#define PCI_EXTCAP_ID(ecap)   ((ecap) & PCIM_EXTCAP_ID)

#define PCI_EXTCAP_VER(ecap)   (((ecap) & PCIM_EXTCAP_VER) >> 16)

#define PCI_EXTCAP_NEXTPTR(ecap)   (((ecap) & PCIM_EXTCAP_NEXTPTR) >> 20)

#define PCIZ_AER   0x0001 /* Advanced Error Reporting */

#define PCIZ_VC   0x0002 /* Virtual Channel if MFVC Ext Cap not set */

#define PCIZ_SERNUM   0x0003 /* Device Serial Number */

#define PCIZ_PWRBDGT   0x0004 /* Power Budgeting */

#define PCIZ_RCLINK_DCL   0x0005 /* Root Complex Link Declaration */

#define PCIZ_RCLINK_CTL   0x0006 /* Root Complex Internal Link Control */

#define PCIZ_RCEC_ASSOC   0x0007 /* Root Complex Event Collector Association */

#define PCIZ_MFVC   0x0008 /* Multi-Function Virtual Channel */

#define PCIZ_VC2   0x0009 /* Virtual Channel if MFVC Ext Cap set */

#define PCIZ_RCRB   0x000a /* RCRB Header */

#define PCIZ_VENDOR   0x000b /* Vendor Unique */

#define PCIZ_CAC   0x000c /* Configuration Access Correction -- obsolete */

#define PCIZ_ACS   0x000d /* Access Control Services */

#define PCIZ_ARI   0x000e /* Alternative Routing-ID Interpretation */

#define PCIZ_ATS   0x000f /* Address Translation Services */

#define PCIZ_SRIOV   0x0010 /* Single Root IO Virtualization */

#define PCIZ_MRIOV   0x0011 /* Multiple Root IO Virtualization */

#define PCIZ_MULTICAST   0x0012 /* Multicast */

#define PCIZ_PAGE_REQ   0x0013 /* Page Request */

#define PCIZ_AMD   0x0014 /* Reserved for AMD */

#define PCIZ_RESIZE_BAR   0x0015 /* Resizable BAR */

#define PCIZ_DPA   0x0016 /* Dynamic Power Allocation */

#define PCIZ_TPH_REQ   0x0017 /* TPH Requester */

#define PCIZ_LTR   0x0018 /* Latency Tolerance Reporting */

#define PCIZ_SEC_PCIE   0x0019 /* Secondary PCI Express */

#define PCIZ_PMUX   0x001a /* Protocol Multiplexing */

#define PCIZ_PASID   0x001b /* Process Address Space ID */

#define PCIZ_LN_REQ   0x001c /* LN Requester */

#define PCIZ_DPC   0x001d /* Downstream Porto Containment */

#define PCIZ_L1PM   0x001e /* L1 PM Substates */

#define PCIR_BARS   0x10

#define PCIR_BAR(x)   (PCIR_BARS + (x) * 4)

#define PCIR_MAX_BAR_0   5

#define PCI_RID2BAR(rid)   (((rid) - PCIR_BARS) / 4)

#define PCI_BAR_IO(x)   (((x) & PCIM_BAR_SPACE) == PCIM_BAR_IO_SPACE)

#define PCI_BAR_MEM(x)   (((x) & PCIM_BAR_SPACE) == PCIM_BAR_MEM_SPACE)

#define PCIM_BAR_SPACE   0x00000001

#define PCIM_BAR_MEM_SPACE   0

#define PCIM_BAR_IO_SPACE   1

#define PCIM_BAR_MEM_TYPE   0x00000006

#define PCIM_BAR_MEM_32   0

#define PCIM_BAR_MEM_1MB   2 /* Locate below 1MB in PCI <= 2.1 */

#define PCIM_BAR_MEM_64   4

#define PCIM_BAR_MEM_PREFETCH   0x00000008

#define PCIM_BAR_MEM_BASE   0xfffffffffffffff0ULL

#define PCIM_BAR_IO_RESERVED   0x00000002

#define PCIM_BAR_IO_BASE   0xfffffffc

#define PCIR_CIS   0x28

#define PCIM_CIS_ASI_MASK   0x00000007

#define PCIM_CIS_ASI_CONFIG   0

#define PCIM_CIS_ASI_BAR0   1

#define PCIM_CIS_ASI_BAR1   2

#define PCIM_CIS_ASI_BAR2   3

#define PCIM_CIS_ASI_BAR3   4

#define PCIM_CIS_ASI_BAR4   5

#define PCIM_CIS_ASI_BAR5   6

#define PCIM_CIS_ASI_ROM   7

#define PCIM_CIS_ADDR_MASK   0x0ffffff8

#define PCIM_CIS_ROM_MASK   0xf0000000

#define PCIM_CIS_CONFIG_MASK   0xff

#define PCIR_SUBVEND_0   0x2c

#define PCIR_SUBDEV_0   0x2e

#define PCIR_BIOS   0x30

#define PCIM_BIOS_ENABLE   0x01

#define PCIM_BIOS_ADDR_MASK   0xfffff800

#define PCIR_CAP_PTR   0x34

#define PCIR_INTLINE   0x3c

#define PCIR_INTPIN   0x3d

#define PCIR_MINGNT   0x3e

#define PCIR_MAXLAT   0x3f

#define PCIR_MAX_BAR_1   1

#define PCIR_SECSTAT_1   0x1e

#define PCIR_PRIBUS_1   0x18

#define PCIR_SECBUS_1   0x19

#define PCIR_SUBBUS_1   0x1a

#define PCIR_SECLAT_1   0x1b

#define PCIR_IOBASEL_1   0x1c

#define PCIR_IOLIMITL_1   0x1d

#define PCIR_IOBASEH_1   0x30

#define PCIR_IOLIMITH_1   0x32

#define PCIM_BRIO_16   0x0

#define PCIM_BRIO_32   0x1

#define PCIM_BRIO_MASK   0xf

#define PCIR_MEMBASE_1   0x20

#define PCIR_MEMLIMIT_1   0x22

#define PCIR_PMBASEL_1   0x24

#define PCIR_PMLIMITL_1   0x26

#define PCIR_PMBASEH_1   0x28

#define PCIR_PMLIMITH_1   0x2c

#define PCIM_BRPM_32   0x0

#define PCIM_BRPM_64   0x1

#define PCIM_BRPM_MASK   0xf

#define PCIR_BIOS_1   0x38

#define PCIR_BRIDGECTL_1   0x3e

#define PCIR_MAX_BAR_2   0

#define PCIR_CAP_PTR_2   0x14

#define PCIR_SECSTAT_2   0x16

#define PCIR_PRIBUS_2   0x18

#define PCIR_SECBUS_2   0x19

#define PCIR_SUBBUS_2   0x1a

#define PCIR_SECLAT_2   0x1b

#define PCIR_MEMBASE0_2   0x1c

#define PCIR_MEMLIMIT0_2   0x20

#define PCIR_MEMBASE1_2   0x24

#define PCIR_MEMLIMIT1_2   0x28

#define PCIR_IOBASE0_2   0x2c

#define PCIR_IOLIMIT0_2   0x30

#define PCIR_IOBASE1_2   0x34

#define PCIR_IOLIMIT1_2   0x38

#define PCIR_BRIDGECTL_2   0x3e

#define PCIR_SUBVEND_2   0x40

#define PCIR_SUBDEV_2   0x42

#define PCIR_PCCARDIF_2   0x44

#define PCIC_OLD   0x00

#define PCIS_OLD_NONVGA   0x00

#define PCIS_OLD_VGA   0x01

#define PCIC_STORAGE   0x01

#define PCIS_STORAGE_SCSI   0x00

#define PCIS_STORAGE_IDE   0x01

#define PCIP_STORAGE_IDE_MODEPRIM   0x01

#define PCIP_STORAGE_IDE_PROGINDPRIM   0x02

#define PCIP_STORAGE_IDE_MODESEC   0x04

#define PCIP_STORAGE_IDE_PROGINDSEC   0x08

#define PCIP_STORAGE_IDE_MASTERDEV   0x80

#define PCIS_STORAGE_FLOPPY   0x02

#define PCIS_STORAGE_IPI   0x03

#define PCIS_STORAGE_RAID   0x04

#define PCIS_STORAGE_ATA_ADMA   0x05

#define PCIS_STORAGE_SATA   0x06

#define PCIP_STORAGE_SATA_AHCI_1_0   0x01

#define PCIS_STORAGE_SAS   0x07

#define PCIS_STORAGE_NVM   0x08

#define PCIP_STORAGE_NVM_NVMHCI_1_0   0x01

#define PCIP_STORAGE_NVM_ENTERPRISE_NVMHCI_1_0   0x02

#define PCIS_STORAGE_OTHER   0x80

#define PCIC_NETWORK   0x02

#define PCIS_NETWORK_ETHERNET   0x00

#define PCIS_NETWORK_TOKENRING   0x01

#define PCIS_NETWORK_FDDI   0x02

#define PCIS_NETWORK_ATM   0x03

#define PCIS_NETWORK_ISDN   0x04

#define PCIS_NETWORK_WORLDFIP   0x05

#define PCIS_NETWORK_PICMG   0x06

#define PCIS_NETWORK_OTHER   0x80

#define PCIC_DISPLAY   0x03

#define PCIS_DISPLAY_VGA   0x00

#define PCIS_DISPLAY_XGA   0x01

#define PCIS_DISPLAY_3D   0x02

#define PCIS_DISPLAY_OTHER   0x80

#define PCIC_MULTIMEDIA   0x04

#define PCIS_MULTIMEDIA_VIDEO   0x00

#define PCIS_MULTIMEDIA_AUDIO   0x01

#define PCIS_MULTIMEDIA_TELE   0x02

#define PCIS_MULTIMEDIA_HDA   0x03

#define PCIS_MULTIMEDIA_OTHER   0x80

#define PCIC_MEMORY   0x05

#define PCIS_MEMORY_RAM   0x00

#define PCIS_MEMORY_FLASH   0x01

#define PCIS_MEMORY_OTHER   0x80

#define PCIC_BRIDGE   0x06

#define PCIS_BRIDGE_HOST   0x00

#define PCIS_BRIDGE_ISA   0x01

#define PCIS_BRIDGE_EISA   0x02

#define PCIS_BRIDGE_MCA   0x03

#define PCIS_BRIDGE_PCI   0x04

#define PCIP_BRIDGE_PCI_SUBTRACTIVE   0x01

#define PCIS_BRIDGE_PCMCIA   0x05

#define PCIS_BRIDGE_NUBUS   0x06

#define PCIS_BRIDGE_CARDBUS   0x07

#define PCIS_BRIDGE_RACEWAY   0x08

#define PCIS_BRIDGE_PCI_TRANSPARENT   0x09

#define PCIS_BRIDGE_INFINIBAND   0x0a

#define PCIS_BRIDGE_OTHER   0x80

#define PCIC_SIMPLECOMM   0x07

#define PCIS_SIMPLECOMM_UART   0x00

#define PCIP_SIMPLECOMM_UART_8250   0x00

#define PCIP_SIMPLECOMM_UART_16450A   0x01

#define PCIP_SIMPLECOMM_UART_16550A   0x02

#define PCIP_SIMPLECOMM_UART_16650A   0x03

#define PCIP_SIMPLECOMM_UART_16750A   0x04

#define PCIP_SIMPLECOMM_UART_16850A   0x05

#define PCIP_SIMPLECOMM_UART_16950A   0x06

#define PCIS_SIMPLECOMM_PAR   0x01

#define PCIS_SIMPLECOMM_MULSER   0x02

#define PCIS_SIMPLECOMM_MODEM   0x03

#define PCIS_SIMPLECOMM_GPIB   0x04

#define PCIS_SIMPLECOMM_SMART_CARD   0x05

#define PCIS_SIMPLECOMM_OTHER   0x80

#define PCIC_BASEPERIPH   0x08

#define PCIS_BASEPERIPH_PIC   0x00

#define PCIP_BASEPERIPH_PIC_8259A   0x00

#define PCIP_BASEPERIPH_PIC_ISA   0x01

#define PCIP_BASEPERIPH_PIC_EISA   0x02

#define PCIP_BASEPERIPH_PIC_IO_APIC   0x10

#define PCIP_BASEPERIPH_PIC_IOX_APIC   0x20

#define PCIS_BASEPERIPH_DMA   0x01

#define PCIS_BASEPERIPH_TIMER   0x02

#define PCIS_BASEPERIPH_RTC   0x03

#define PCIS_BASEPERIPH_PCIHOT   0x04

#define PCIS_BASEPERIPH_SDHC   0x05

#define PCIS_BASEPERIPH_IOMMU   0x06

#define PCIS_BASEPERIPH_OTHER   0x80

#define PCIC_INPUTDEV   0x09

#define PCIS_INPUTDEV_KEYBOARD   0x00

#define PCIS_INPUTDEV_DIGITIZER   0x01

#define PCIS_INPUTDEV_MOUSE   0x02

#define PCIS_INPUTDEV_SCANNER   0x03

#define PCIS_INPUTDEV_GAMEPORT   0x04

#define PCIS_INPUTDEV_OTHER   0x80

#define PCIC_DOCKING   0x0a

#define PCIS_DOCKING_GENERIC   0x00

#define PCIS_DOCKING_OTHER   0x80

#define PCIC_PROCESSOR   0x0b

#define PCIS_PROCESSOR_386   0x00

#define PCIS_PROCESSOR_486   0x01

#define PCIS_PROCESSOR_PENTIUM   0x02

#define PCIS_PROCESSOR_ALPHA   0x10

#define PCIS_PROCESSOR_POWERPC   0x20

#define PCIS_PROCESSOR_MIPS   0x30

#define PCIS_PROCESSOR_COPROC   0x40

#define PCIC_SERIALBUS   0x0c

#define PCIS_SERIALBUS_FW   0x00

#define PCIS_SERIALBUS_ACCESS   0x01

#define PCIS_SERIALBUS_SSA   0x02

#define PCIS_SERIALBUS_USB   0x03

#define PCIP_SERIALBUS_USB_UHCI   0x00

#define PCIP_SERIALBUS_USB_OHCI   0x10

#define PCIP_SERIALBUS_USB_EHCI   0x20

#define PCIP_SERIALBUS_USB_XHCI   0x30

#define PCIP_SERIALBUS_USB_DEVICE   0xfe

#define PCIS_SERIALBUS_FC   0x04

#define PCIS_SERIALBUS_SMBUS   0x05

#define PCIS_SERIALBUS_INFINIBAND   0x06

#define PCIS_SERIALBUS_IPMI   0x07

#define PCIP_SERIALBUS_IPMI_SMIC   0x00

#define PCIP_SERIALBUS_IPMI_KCS   0x01

#define PCIP_SERIALBUS_IPMI_BT   0x02

#define PCIS_SERIALBUS_SERCOS   0x08

#define PCIS_SERIALBUS_CANBUS   0x09

#define PCIC_WIRELESS   0x0d

#define PCIS_WIRELESS_IRDA   0x00

#define PCIS_WIRELESS_IR   0x01

#define PCIS_WIRELESS_RF   0x10

#define PCIS_WIRELESS_BLUETOOTH   0x11

#define PCIS_WIRELESS_BROADBAND   0x12

#define PCIS_WIRELESS_80211A   0x20

#define PCIS_WIRELESS_80211B   0x21

#define PCIS_WIRELESS_OTHER   0x80

#define PCIC_INTELLIIO   0x0e

#define PCIS_INTELLIIO_I2O   0x00

#define PCIC_SATCOM   0x0f

#define PCIS_SATCOM_TV   0x01

#define PCIS_SATCOM_AUDIO   0x02

#define PCIS_SATCOM_VOICE   0x03

#define PCIS_SATCOM_DATA   0x04

#define PCIC_CRYPTO   0x10

#define PCIS_CRYPTO_NETCOMP   0x00

#define PCIS_CRYPTO_ENTERTAIN   0x10

#define PCIS_CRYPTO_OTHER   0x80

#define PCIC_DASP   0x11

#define PCIS_DASP_DPIO   0x00

#define PCIS_DASP_PERFCNTRS   0x01

#define PCIS_DASP_COMM_SYNC   0x10

#define PCIS_DASP_MGMT_CARD   0x20

#define PCIS_DASP_OTHER   0x80

#define PCIC_OTHER   0xff

#define PCIB_BCR_PERR_ENABLE   0x0001

#define PCIB_BCR_SERR_ENABLE   0x0002

#define PCIB_BCR_ISA_ENABLE   0x0004

#define PCIB_BCR_VGA_ENABLE   0x0008

#define PCIB_BCR_MASTER_ABORT_MODE   0x0020

#define PCIB_BCR_SECBUS_RESET   0x0040

#define PCIB_BCR_SECBUS_BACKTOBACK   0x0080

#define PCIB_BCR_PRI_DISCARD_TIMEOUT   0x0100

#define PCIB_BCR_SEC_DISCARD_TIMEOUT   0x0200

#define PCIB_BCR_DISCARD_TIMER_STATUS   0x0400

#define PCIB_BCR_DISCARD_TIMER_SERREN   0x0800

#define PCIR_POWER_CAP   0x2

#define PCIM_PCAP_SPEC   0x0007

#define PCIM_PCAP_PMEREQCLK   0x0008

#define PCIM_PCAP_DEVSPECINIT   0x0020

#define PCIM_PCAP_AUXPWR_0   0x0000

#define PCIM_PCAP_AUXPWR_55   0x0040

#define PCIM_PCAP_AUXPWR_100   0x0080

#define PCIM_PCAP_AUXPWR_160   0x00c0

#define PCIM_PCAP_AUXPWR_220   0x0100

#define PCIM_PCAP_AUXPWR_270   0x0140

#define PCIM_PCAP_AUXPWR_320   0x0180

#define PCIM_PCAP_AUXPWR_375   0x01c0

#define PCIM_PCAP_AUXPWRMASK   0x01c0

#define PCIM_PCAP_D1SUPP   0x0200

#define PCIM_PCAP_D2SUPP   0x0400

#define PCIM_PCAP_D0PME   0x0800

#define PCIM_PCAP_D1PME   0x1000

#define PCIM_PCAP_D2PME   0x2000

#define PCIM_PCAP_D3PME_HOT   0x4000

#define PCIM_PCAP_D3PME_COLD   0x8000

#define PCIR_POWER_STATUS   0x4

#define PCIM_PSTAT_D0   0x0000

#define PCIM_PSTAT_D1   0x0001

#define PCIM_PSTAT_D2   0x0002

#define PCIM_PSTAT_D3   0x0003

#define PCIM_PSTAT_DMASK   0x0003

#define PCIM_PSTAT_NOSOFTRESET   0x0008

#define PCIM_PSTAT_PMEENABLE   0x0100

#define PCIM_PSTAT_D0POWER   0x0000

#define PCIM_PSTAT_D1POWER   0x0200

#define PCIM_PSTAT_D2POWER   0x0400

#define PCIM_PSTAT_D3POWER   0x0600

#define PCIM_PSTAT_D0HEAT   0x0800

#define PCIM_PSTAT_D1HEAT   0x0a00

#define PCIM_PSTAT_D2HEAT   0x0c00

#define PCIM_PSTAT_D3HEAT   0x0e00

#define PCIM_PSTAT_DATASELMASK   0x1e00

#define PCIM_PSTAT_DATAUNKN   0x0000

#define PCIM_PSTAT_DATADIV10   0x2000

#define PCIM_PSTAT_DATADIV100   0x4000

#define PCIM_PSTAT_DATADIV1000   0x6000

#define PCIM_PSTAT_DATADIVMASK   0x6000

#define PCIM_PSTAT_PME   0x8000

#define PCIR_POWER_BSE   0x6

#define PCIM_PMCSR_BSE_D3B3   0x00

#define PCIM_PMCSR_BSE_D3B2   0x40

#define PCIM_PMCSR_BSE_BPCCE   0x80

#define PCIR_POWER_DATA   0x7

#define PCIR_VPD_ADDR   0x2

#define PCIR_VPD_DATA   0x4

#define PCIR_MSI_CTRL   0x2

#define PCIM_MSICTRL_VECTOR   0x0100

#define PCIM_MSICTRL_64BIT   0x0080

#define PCIM_MSICTRL_MME_MASK   0x0070

#define PCIM_MSICTRL_MME_1   0x0000

#define PCIM_MSICTRL_MME_2   0x0010

#define PCIM_MSICTRL_MME_4   0x0020

#define PCIM_MSICTRL_MME_8   0x0030

#define PCIM_MSICTRL_MME_16   0x0040

#define PCIM_MSICTRL_MME_32   0x0050

#define PCIM_MSICTRL_MMC_MASK   0x000E

#define PCIM_MSICTRL_MMC_1   0x0000

#define PCIM_MSICTRL_MMC_2   0x0002

#define PCIM_MSICTRL_MMC_4   0x0004

#define PCIM_MSICTRL_MMC_8   0x0006

#define PCIM_MSICTRL_MMC_16   0x0008

#define PCIM_MSICTRL_MMC_32   0x000A

#define PCIM_MSICTRL_MSI_ENABLE   0x0001

#define PCIR_MSI_ADDR   0x4

#define PCIR_MSI_ADDR_HIGH   0x8

#define PCIR_MSI_DATA   0x8

#define PCIR_MSI_DATA_64BIT   0xc

#define PCIR_MSI_MASK   0x10

#define PCIR_MSI_PENDING   0x14

#define PCIXR_COMMAND   0x2

#define PCIXM_COMMAND_DPERR_E   0x0001 /* Data Parity Error Recovery */

#define PCIXM_COMMAND_ERO   0x0002 /* Enable Relaxed Ordering */

#define PCIXM_COMMAND_MAX_READ   0x000c /* Maximum Burst Read Count */

#define PCIXM_COMMAND_MAX_READ_512   0x0000

#define PCIXM_COMMAND_MAX_READ_1024   0x0004

#define PCIXM_COMMAND_MAX_READ_2048   0x0008

#define PCIXM_COMMAND_MAX_READ_4096   0x000c

#define PCIXM_COMMAND_MAX_SPLITS   0x0070 /* Maximum Split Transactions */

#define PCIXM_COMMAND_MAX_SPLITS_1   0x0000

#define PCIXM_COMMAND_MAX_SPLITS_2   0x0010

#define PCIXM_COMMAND_MAX_SPLITS_3   0x0020

#define PCIXM_COMMAND_MAX_SPLITS_4   0x0030

#define PCIXM_COMMAND_MAX_SPLITS_8   0x0040

#define PCIXM_COMMAND_MAX_SPLITS_12   0x0050

#define PCIXM_COMMAND_MAX_SPLITS_16   0x0060

#define PCIXM_COMMAND_MAX_SPLITS_32   0x0070

#define PCIXM_COMMAND_VERSION   0x3000

#define PCIXR_STATUS   0x4

#define PCIXM_STATUS_DEVFN   0x000000FF

#define PCIXM_STATUS_BUS   0x0000FF00

#define PCIXM_STATUS_64BIT   0x00010000

#define PCIXM_STATUS_133CAP   0x00020000

#define PCIXM_STATUS_SC_DISCARDED   0x00040000

#define PCIXM_STATUS_UNEXP_SC   0x00080000

#define PCIXM_STATUS_COMPLEX_DEV   0x00100000

#define PCIXM_STATUS_MAX_READ   0x00600000

#define PCIXM_STATUS_MAX_READ_512   0x00000000

#define PCIXM_STATUS_MAX_READ_1024   0x00200000

#define PCIXM_STATUS_MAX_READ_2048   0x00400000

#define PCIXM_STATUS_MAX_READ_4096   0x00600000

#define PCIXM_STATUS_MAX_SPLITS   0x03800000

#define PCIXM_STATUS_MAX_SPLITS_1   0x00000000

#define PCIXM_STATUS_MAX_SPLITS_2   0x00800000

#define PCIXM_STATUS_MAX_SPLITS_3   0x01000000

#define PCIXM_STATUS_MAX_SPLITS_4   0x01800000

#define PCIXM_STATUS_MAX_SPLITS_8   0x02000000

#define PCIXM_STATUS_MAX_SPLITS_12   0x02800000

#define PCIXM_STATUS_MAX_SPLITS_16   0x03000000

#define PCIXM_STATUS_MAX_SPLITS_32   0x03800000

#define PCIXM_STATUS_MAX_CUM_READ   0x1C000000

#define PCIXM_STATUS_RCVD_SC_ERR   0x20000000

#define PCIXM_STATUS_266CAP   0x40000000

#define PCIXM_STATUS_533CAP   0x80000000

#define PCIXR_SEC_STATUS   0x2

#define PCIXM_SEC_STATUS_64BIT   0x0001

#define PCIXM_SEC_STATUS_133CAP   0x0002

#define PCIXM_SEC_STATUS_SC_DISC   0x0004

#define PCIXM_SEC_STATUS_UNEXP_SC   0x0008

#define PCIXM_SEC_STATUS_SC_OVERRUN   0x0010

#define PCIXM_SEC_STATUS_SR_DELAYED   0x0020

#define PCIXM_SEC_STATUS_BUS_MODE   0x03c0

#define PCIXM_SEC_STATUS_VERSION   0x3000

#define PCIXM_SEC_STATUS_266CAP   0x4000

#define PCIXM_SEC_STATUS_533CAP   0x8000

#define PCIXR_BRIDGE_STATUS   0x4

#define PCIXM_BRIDGE_STATUS_DEVFN   0x000000FF

#define PCIXM_BRIDGE_STATUS_BUS   0x0000FF00

#define PCIXM_BRIDGE_STATUS_64BIT   0x00010000

#define PCIXM_BRIDGE_STATUS_133CAP   0x00020000

#define PCIXM_BRIDGE_STATUS_SC_DISCARDED   0x00040000

#define PCIXM_BRIDGE_STATUS_UNEXP_SC   0x00080000

#define PCIXM_BRIDGE_STATUS_SC_OVERRUN   0x00100000

#define PCIXM_BRIDGE_STATUS_SR_DELAYED   0x00200000

#define PCIXM_BRIDGE_STATUS_DEVID_MSGCAP   0x20000000

#define PCIXM_BRIDGE_STATUS_266CAP   0x40000000

#define PCIXM_BRIDGE_STATUS_533CAP   0x80000000

#define PCIR_HT_COMMAND   0x2

#define PCIM_HTCMD_CAP_MASK   0xf800 /* Capability type. */

#define PCIM_HTCAP_SLAVE   0x0000 /* 000xx */

#define PCIM_HTCAP_HOST   0x2000 /* 001xx */

#define PCIM_HTCAP_SWITCH   0x4000 /* 01000 */

#define PCIM_HTCAP_INTERRUPT   0x8000 /* 10000 */

#define PCIM_HTCAP_REVISION_ID   0x8800 /* 10001 */

#define PCIM_HTCAP_UNITID_CLUMPING   0x9000 /* 10010 */

#define PCIM_HTCAP_EXT_CONFIG_SPACE   0x9800 /* 10011 */

#define PCIM_HTCAP_ADDRESS_MAPPING   0xa000 /* 10100 */

#define PCIM_HTCAP_MSI_MAPPING   0xa800 /* 10101 */

#define PCIM_HTCAP_DIRECT_ROUTE   0xb000 /* 10110 */

#define PCIM_HTCAP_VCSET   0xb800 /* 10111 */

#define PCIM_HTCAP_RETRY_MODE   0xc000 /* 11000 */

#define PCIM_HTCAP_X86_ENCODING   0xc800 /* 11001 */

#define PCIM_HTCAP_GEN3   0xd000 /* 11010 */

#define PCIM_HTCAP_FLE   0xd800 /* 11011 */

#define PCIM_HTCAP_PM   0xe000 /* 11100 */

#define PCIM_HTCAP_HIGH_NODE_COUNT   0xe800 /* 11101 */

#define PCIM_HTCMD_MSI_ENABLE   0x0001

#define PCIM_HTCMD_MSI_FIXED   0x0002

#define PCIR_HTMSI_ADDRESS_LO   0x4

#define PCIR_HTMSI_ADDRESS_HI   0x8

#define PCIR_VENDOR_LENGTH   0x2

#define PCIR_VENDOR_DATA   0x3

#define PCIR_DEBUG_PORT   0x2

#define PCIM_DEBUG_PORT_OFFSET   0x1FFF

#define PCIM_DEBUG_PORT_BAR   0xe000

#define PCIR_SUBVENDCAP_ID   0x4

#define PCIER_FLAGS   0x2

#define PCIEM_FLAGS_VERSION   0x000F

#define PCIEM_FLAGS_TYPE   0x00F0

#define PCIEM_TYPE_ENDPOINT   0x0000

#define PCIEM_TYPE_LEGACY_ENDPOINT   0x0010

#define PCIEM_TYPE_ROOT_PORT   0x0040

#define PCIEM_TYPE_UPSTREAM_PORT   0x0050

#define PCIEM_TYPE_DOWNSTREAM_PORT   0x0060

#define PCIEM_TYPE_PCI_BRIDGE   0x0070

#define PCIEM_TYPE_PCIE_BRIDGE   0x0080

#define PCIEM_TYPE_ROOT_INT_EP   0x0090

#define PCIEM_TYPE_ROOT_EC   0x00a0

#define PCIEM_FLAGS_SLOT   0x0100

#define PCIEM_FLAGS_IRQ   0x3e00

#define PCIER_DEVICE_CAP   0x4

#define PCIEM_CAP_MAX_PAYLOAD   0x00000007

#define PCIEM_CAP_PHANTHOM_FUNCS   0x00000018

#define PCIEM_CAP_EXT_TAG_FIELD   0x00000020

#define PCIEM_CAP_L0S_LATENCY   0x000001c0

#define PCIEM_CAP_L1_LATENCY   0x00000e00

#define PCIEM_CAP_ROLE_ERR_RPT   0x00008000

#define PCIEM_CAP_SLOT_PWR_LIM_VAL   0x03fc0000

#define PCIEM_CAP_SLOT_PWR_LIM_SCALE   0x0c000000

#define PCIEM_CAP_FLR   0x10000000

#define PCIER_DEVICE_CTL   0x8

#define PCIEM_CTL_COR_ENABLE   0x0001

#define PCIEM_CTL_NFER_ENABLE   0x0002

#define PCIEM_CTL_FER_ENABLE   0x0004

#define PCIEM_CTL_URR_ENABLE   0x0008

#define PCIEM_CTL_RELAXED_ORD_ENABLE   0x0010

#define PCIEM_CTL_MAX_PAYLOAD   0x00e0

#define PCIEM_CTL_EXT_TAG_FIELD   0x0100

#define PCIEM_CTL_PHANTHOM_FUNCS   0x0200

#define PCIEM_CTL_AUX_POWER_PM   0x0400

#define PCIEM_CTL_NOSNOOP_ENABLE   0x0800

#define PCIEM_CTL_MAX_READ_REQUEST   0x7000

#define PCIEM_CTL_BRDG_CFG_RETRY   0x8000 /* PCI-E - PCI/PCI-X bridges */

#define PCIEM_CTL_INITIATE_FLR   0x8000 /* FLR capable endpoints */

#define PCIER_DEVICE_STA   0xa

#define PCIEM_STA_CORRECTABLE_ERROR   0x0001

#define PCIEM_STA_NON_FATAL_ERROR   0x0002

#define PCIEM_STA_FATAL_ERROR   0x0004

#define PCIEM_STA_UNSUPPORTED_REQ   0x0008

#define PCIEM_STA_AUX_POWER   0x0010

#define PCIEM_STA_TRANSACTION_PND   0x0020

#define PCIER_LINK_CAP   0xc

#define PCIEM_LINK_CAP_MAX_SPEED   0x0000000f

#define PCIEM_LINK_CAP_MAX_WIDTH   0x000003f0

#define PCIEM_LINK_CAP_ASPM   0x00000c00

#define PCIEM_LINK_CAP_L0S_EXIT   0x00007000

#define PCIEM_LINK_CAP_L1_EXIT   0x00038000

#define PCIEM_LINK_CAP_CLOCK_PM   0x00040000

#define PCIEM_LINK_CAP_SURPRISE_DOWN   0x00080000

#define PCIEM_LINK_CAP_DL_ACTIVE   0x00100000

#define PCIEM_LINK_CAP_LINK_BW_NOTIFY   0x00200000

#define PCIEM_LINK_CAP_ASPM_COMPLIANCE   0x00400000

#define PCIEM_LINK_CAP_PORT   0xff000000

#define PCIER_LINK_CTL   0x10

#define PCIEM_LINK_CTL_ASPMC_DIS   0x0000

#define PCIEM_LINK_CTL_ASPMC_L0S   0x0001

#define PCIEM_LINK_CTL_ASPMC_L1   0x0002

#define PCIEM_LINK_CTL_ASPMC   0x0003

#define PCIEM_LINK_CTL_RCB   0x0008

#define PCIEM_LINK_CTL_LINK_DIS   0x0010

#define PCIEM_LINK_CTL_RETRAIN_LINK   0x0020

#define PCIEM_LINK_CTL_COMMON_CLOCK   0x0040

#define PCIEM_LINK_CTL_EXTENDED_SYNC   0x0080

#define PCIEM_LINK_CTL_ECPM   0x0100

#define PCIEM_LINK_CTL_HAWD   0x0200

#define PCIEM_LINK_CTL_LBMIE   0x0400

#define PCIEM_LINK_CTL_LABIE   0x0800

#define PCIER_LINK_STA   0x12

#define PCIEM_LINK_STA_SPEED   0x000f

#define PCIEM_LINK_STA_WIDTH   0x03f0

#define PCIEM_LINK_STA_TRAINING_ERROR   0x0400

#define PCIEM_LINK_STA_TRAINING   0x0800

#define PCIEM_LINK_STA_SLOT_CLOCK   0x1000

#define PCIEM_LINK_STA_DL_ACTIVE   0x2000

#define PCIEM_LINK_STA_LINK_BW_MGMT   0x4000

#define PCIEM_LINK_STA_LINK_AUTO_BW   0x8000

#define PCIER_SLOT_CAP   0x14

#define PCIEM_SLOT_CAP_APB   0x00000001

#define PCIEM_SLOT_CAP_PCP   0x00000002

#define PCIEM_SLOT_CAP_MRLSP   0x00000004

#define PCIEM_SLOT_CAP_AIP   0x00000008

#define PCIEM_SLOT_CAP_PIP   0x00000010

#define PCIEM_SLOT_CAP_HPS   0x00000020

#define PCIEM_SLOT_CAP_HPC   0x00000040

#define PCIEM_SLOT_CAP_SPLV   0x00007f80

#define PCIEM_SLOT_CAP_SPLS   0x00018000

#define PCIEM_SLOT_CAP_EIP   0x00020000

#define PCIEM_SLOT_CAP_NCCS   0x00040000

#define PCIEM_SLOT_CAP_PSN   0xfff80000

#define PCIER_SLOT_CTL   0x18

#define PCIEM_SLOT_CTL_ABPE   0x0001

#define PCIEM_SLOT_CTL_PFDE   0x0002

#define PCIEM_SLOT_CTL_MRLSCE   0x0004

#define PCIEM_SLOT_CTL_PDCE   0x0008

#define PCIEM_SLOT_CTL_CCIE   0x0010

#define PCIEM_SLOT_CTL_HPIE   0x0020

#define PCIEM_SLOT_CTL_AIC   0x00c0

#define PCIEM_SLOT_CTL_PIC   0x0300

#define PCIEM_SLOT_CTL_PCC   0x0400

#define PCIEM_SLOT_CTL_EIC   0x0800

#define PCIEM_SLOT_CTL_DLLSCE   0x1000

#define PCIER_SLOT_STA   0x1a

#define PCIEM_SLOT_STA_ABP   0x0001

#define PCIEM_SLOT_STA_PFD   0x0002

#define PCIEM_SLOT_STA_MRLSC   0x0004

#define PCIEM_SLOT_STA_PDC   0x0008

#define PCIEM_SLOT_STA_CC   0x0010

#define PCIEM_SLOT_STA_MRLSS   0x0020

#define PCIEM_SLOT_STA_PDS   0x0040

#define PCIEM_SLOT_STA_EIS   0x0080

#define PCIEM_SLOT_STA_DLLSC   0x0100

#define PCIER_ROOT_CTL   0x1c

#define PCIEM_ROOT_CTL_SERR_CORR   0x0001

#define PCIEM_ROOT_CTL_SERR_NONFATAL   0x0002

#define PCIEM_ROOT_CTL_SERR_FATAL   0x0004

#define PCIEM_ROOT_CTL_PME   0x0008

#define PCIEM_ROOT_CTL_CRS_VIS   0x0010

#define PCIER_ROOT_CAP   0x1e

#define PCIEM_ROOT_CAP_CRS_VIS   0x0001

#define PCIER_ROOT_STA   0x20

#define PCIEM_ROOT_STA_PME_REQID_MASK   0x0000ffff

#define PCIEM_ROOT_STA_PME_STATUS   0x00010000

#define PCIEM_ROOT_STA_PME_PEND   0x00020000

#define PCIER_DEVICE_CAP2   0x24

#define PCIEM_CAP2_ARI   0x20

#define PCIER_DEVICE_CTL2   0x28

#define PCIEM_CTL2_COMP_TIMEOUT_VAL   0x000f

#define PCIEM_CTL2_COMP_TIMEOUT_DIS   0x0010

#define PCIEM_CTL2_ARI   0x0020

#define PCIEM_CTL2_ATOMIC_REQ_ENABLE   0x0040

#define PCIEM_CTL2_ATOMIC_EGR_BLOCK   0x0080

#define PCIEM_CTL2_ID_ORDERED_REQ_EN   0x0100

#define PCIEM_CTL2_ID_ORDERED_CMP_EN   0x0200

#define PCIEM_CTL2_LTR_ENABLE   0x0400

#define PCIEM_CTL2_OBFF   0x6000

#define PCIEM_OBFF_DISABLE   0x0000

#define PCIEM_OBFF_MSGA_ENABLE   0x2000

#define PCIEM_OBFF_MSGB_ENABLE   0x4000

#define PCIEM_OBFF_WAKE_ENABLE   0x6000

#define PCIEM_CTL2_END2END_TLP   0x8000

#define PCIER_DEVICE_STA2   0x2a

#define PCIER_LINK_CAP2   0x2c

#define PCIER_LINK_CTL2   0x30

#define PCIER_LINK_STA2   0x32

#define PCIER_SLOT_CAP2   0x34

#define PCIER_SLOT_CTL2   0x38

#define PCIER_SLOT_STA2   0x3a

#define PCIR_MSIX_CTRL   0x2

#define PCIM_MSIXCTRL_MSIX_ENABLE   0x8000

#define PCIM_MSIXCTRL_FUNCTION_MASK   0x4000

#define PCIM_MSIXCTRL_TABLE_SIZE   0x07FF

#define PCIR_MSIX_TABLE   0x4

#define PCIR_MSIX_PBA   0x8

#define PCIM_MSIX_BIR_MASK   0x7

#define PCIM_MSIX_BIR_BAR_10   0

#define PCIM_MSIX_BIR_BAR_14   1

#define PCIM_MSIX_BIR_BAR_18   2

#define PCIM_MSIX_BIR_BAR_1C   3

#define PCIM_MSIX_BIR_BAR_20   4

#define PCIM_MSIX_BIR_BAR_24   5

#define PCIM_MSIX_VCTRL_MASK   0x1

#define PCIR_PCIAF_CAP   0x3

#define PCIM_PCIAFCAP_TP   0x01

#define PCIM_PCIAFCAP_FLR   0x02

#define PCIR_PCIAF_CTRL   0x4

#define PCIR_PCIAFCTRL_FLR   0x01

#define PCIR_PCIAF_STATUS   0x5

#define PCIR_PCIAFSTATUS_TP   0x01

#define PCIR_AER_UC_STATUS   0x04

#define PCIM_AER_UC_TRAINING_ERROR   0x00000001

#define PCIM_AER_UC_DL_PROTOCOL_ERROR   0x00000010

#define PCIM_AER_UC_SURPRISE_LINK_DOWN   0x00000020

#define PCIM_AER_UC_POISONED_TLP   0x00001000

#define PCIM_AER_UC_FC_PROTOCOL_ERROR   0x00002000

#define PCIM_AER_UC_COMPLETION_TIMEOUT   0x00004000

#define PCIM_AER_UC_COMPLETER_ABORT   0x00008000

#define PCIM_AER_UC_UNEXPECTED_COMPLETION   0x00010000

#define PCIM_AER_UC_RECEIVER_OVERFLOW   0x00020000

#define PCIM_AER_UC_MALFORMED_TLP   0x00040000

#define PCIM_AER_UC_ECRC_ERROR   0x00080000

#define PCIM_AER_UC_UNSUPPORTED_REQUEST   0x00100000

#define PCIM_AER_UC_ACS_VIOLATION   0x00200000

#define PCIM_AER_UC_INTERNAL_ERROR   0x00400000

#define PCIM_AER_UC_MC_BLOCKED_TLP   0x00800000

#define PCIM_AER_UC_ATOMIC_EGRESS_BLK   0x01000000

#define PCIM_AER_UC_TLP_PREFIX_BLOCKED   0x02000000

#define PCIR_AER_UC_MASK   0x08 /* Shares bits with UC_STATUS */

#define PCIR_AER_UC_SEVERITY   0x0c /* Shares bits with UC_STATUS */

#define PCIR_AER_COR_STATUS   0x10

#define PCIM_AER_COR_RECEIVER_ERROR   0x00000001

#define PCIM_AER_COR_BAD_TLP   0x00000040

#define PCIM_AER_COR_BAD_DLLP   0x00000080

#define PCIM_AER_COR_REPLAY_ROLLOVER   0x00000100

#define PCIM_AER_COR_REPLAY_TIMEOUT   0x00001000

#define PCIM_AER_COR_ADVISORY_NF_ERROR   0x00002000

#define PCIM_AER_COR_INTERNAL_ERROR   0x00004000

#define PCIM_AER_COR_HEADER_LOG_OVFLOW   0x00008000

#define PCIR_AER_COR_MASK   0x14 /* Shares bits with COR_STATUS */

#define PCIR_AER_CAP_CONTROL   0x18

#define PCIM_AER_FIRST_ERROR_PTR   0x0000001f

#define PCIM_AER_ECRC_GEN_CAPABLE   0x00000020

#define PCIM_AER_ECRC_GEN_ENABLE   0x00000040

#define PCIM_AER_ECRC_CHECK_CAPABLE   0x00000080

#define PCIM_AER_ECRC_CHECK_ENABLE   0x00000100

#define PCIM_AER_MULT_HDR_CAPABLE   0x00000200

#define PCIM_AER_MULT_HDR_ENABLE   0x00000400

#define PCIM_AER_TLP_PREFIX_LOG_PRESENT   0x00000800

#define PCIR_AER_HEADER_LOG   0x1c

#define PCIR_AER_ROOTERR_CMD   0x2c /* Only for root complex ports */

#define PCIM_AER_ROOTERR_COR_ENABLE   0x00000001

#define PCIM_AER_ROOTERR_NF_ENABLE   0x00000002

#define PCIM_AER_ROOTERR_F_ENABLE   0x00000004

#define PCIR_AER_ROOTERR_STATUS   0x30 /* Only for root complex ports */

#define PCIM_AER_ROOTERR_COR_ERR   0x00000001

#define PCIM_AER_ROOTERR_MULTI_COR_ERR   0x00000002

#define PCIM_AER_ROOTERR_UC_ERR   0x00000004

#define PCIM_AER_ROOTERR_MULTI_UC_ERR   0x00000008

#define PCIM_AER_ROOTERR_FIRST_UC_FATAL   0x00000010

#define PCIM_AER_ROOTERR_NF_ERR   0x00000020

#define PCIM_AER_ROOTERR_F_ERR   0x00000040

#define PCIM_AER_ROOTERR_INT_MESSAGE   0xf8000000

#define PCIR_AER_COR_SOURCE_ID   0x34 /* Only for root complex ports */

#define PCIR_AER_ERR_SOURCE_ID   0x36 /* Only for root complex ports */

#define PCIR_AER_TLP_PREFIX_LOG   0x38 /* Only for TLP prefix functions */

#define PCIR_VC_CAP1   0x04

#define PCIM_VC_CAP1_EXT_COUNT   0x00000007

#define PCIM_VC_CAP1_LOWPRI_EXT_COUNT   0x00000070

#define PCIR_VC_CAP2   0x08

#define PCIR_VC_CONTROL   0x0C

#define PCIR_VC_STATUS   0x0E

#define PCIR_VC_RESOURCE_CAP(n)   (0x10 + (n) * 0x0C)

#define PCIR_VC_RESOURCE_CTL(n)   (0x14 + (n) * 0x0C)

#define PCIR_VC_RESOURCE_STA(n)   (0x18 + (n) * 0x0C)

#define PCIR_SERIAL_LOW   0x04

#define PCIR_SERIAL_HIGH   0x08


Macro Definition Documentation

◆ PCI_ARI_RID

#define PCI_ARI_RID (   bus,
  func
)
Value:
((((bus) & PCI_BUSMAX) << PCI_RID_BUS_SHIFT) | \
(((func) & PCIE_ARI_FUNCMAX) << PCI_RID_FUNC_SHIFT))

◆ PCI_RID

#define PCI_RID (   bus,
  slot,
  func
)
Value:
((((bus) & PCI_BUSMAX) << PCI_RID_BUS_SHIFT) | \
(((slot) & PCI_SLOTMAX) << PCI_RID_SLOT_SHIFT) | \
(((func) & PCI_FUNCMAX) << PCI_RID_FUNC_SHIFT))
