lcp.h File Reference

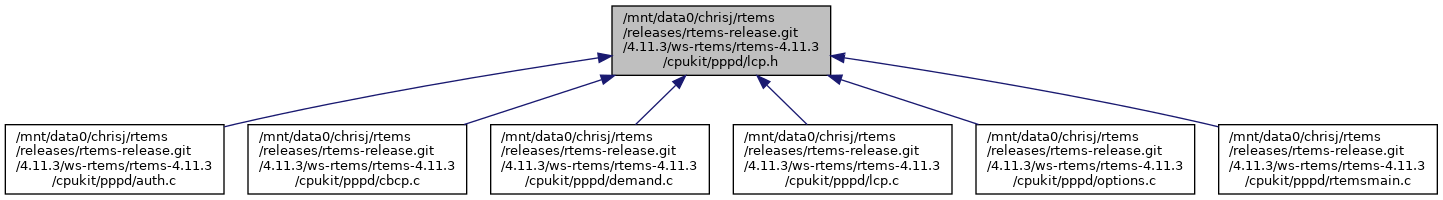

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	lcp_options

Macros
#define	CI_MRU   1 /* Maximum Receive Unit */
#define	CI_ASYNCMAP   2 /* Async Control Character Map */
#define	CI_AUTHTYPE   3 /* Authentication Type */
#define	CI_QUALITY   4 /* Quality Protocol */
#define	CI_MAGICNUMBER   5 /* Magic Number */
#define	CI_PCOMPRESSION   7 /* Protocol Field Compression */
#define	CI_ACCOMPRESSION   8 /* Address/Control Field Compression */
#define	CI_CALLBACK   13 /* callback */
#define	PROTREJ   8 /* Protocol Reject */
#define	ECHOREQ   9 /* Echo Request */
#define	ECHOREP   10 /* Echo Reply */
#define	DISCREQ   11 /* Discard Request */
#define	CBCP_OPT   6 /* Use callback control protocol */
#define	DEFMRU   1500 /* Try for this */
#define	MINMRU   128 /* No MRUs below this */
#define	MAXMRU   16384 /* Normally limit MRU to this */
#define	DEFLOOPBACKFAIL   10

Typedefs
typedef struct lcp_options	lcp_options

Functions
void	lcp_open (int)
void	lcp_close (int, char *)
void	lcp_lowerup (int)
void	lcp_lowerdown (int)
void	lcp_sprotrej (int, u_char *, int)

Variables
fsm	lcp_fsm []
lcp_options	lcp_wantoptions []
lcp_options	lcp_gotoptions []
lcp_options	lcp_allowoptions []
lcp_options	lcp_hisoptions []
uint32_t	xmit_accm [][8]
struct protent	lcp_protent
