Inlined Routines Associated with the SuperCore Barrier. More...

#include <rtems/score/corebarrier.h>
#include <rtems/score/thread.h>
#include <rtems/score/threadqimpl.h>
#include <rtems/score/watchdog.h>

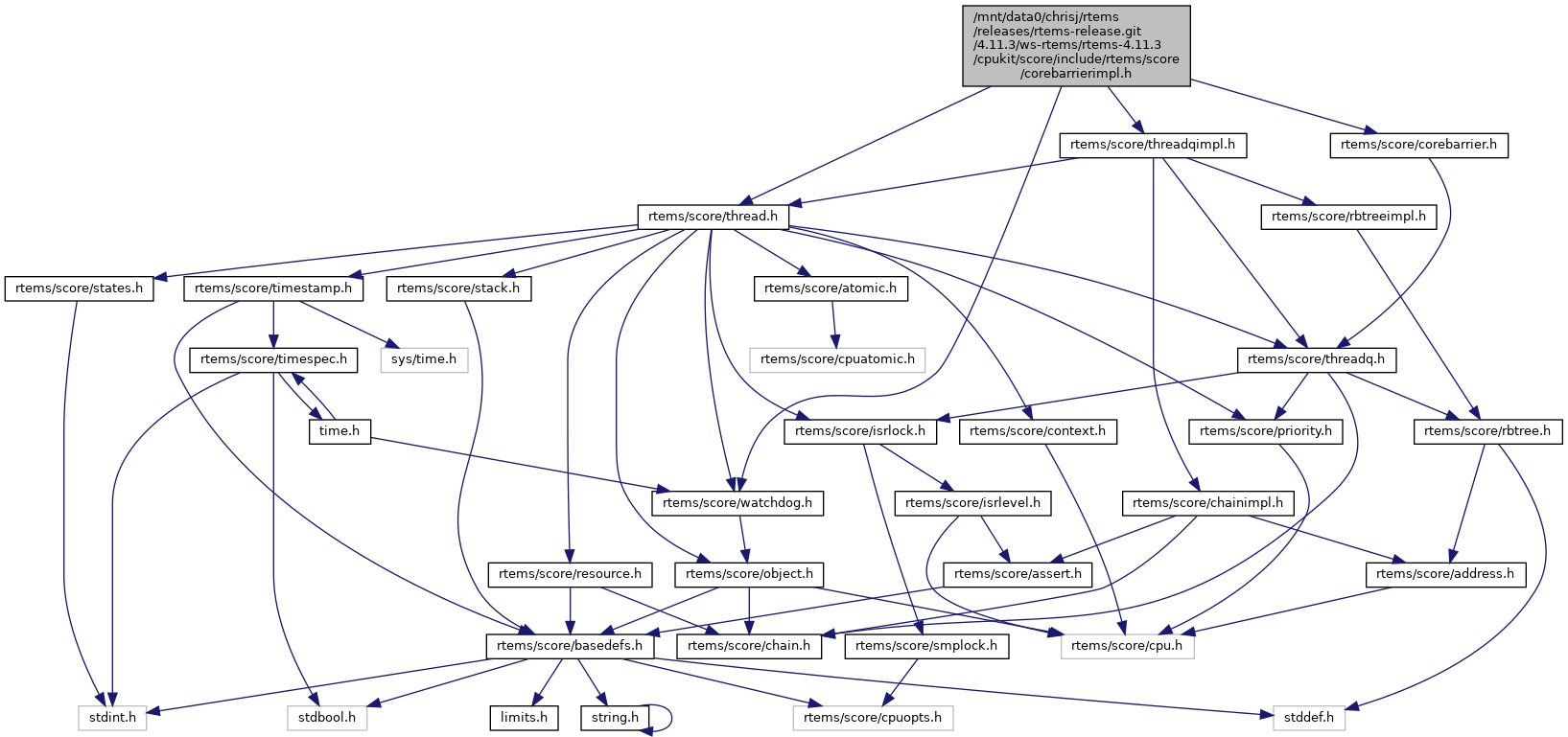

Include dependency graph for corebarrierimpl.h:

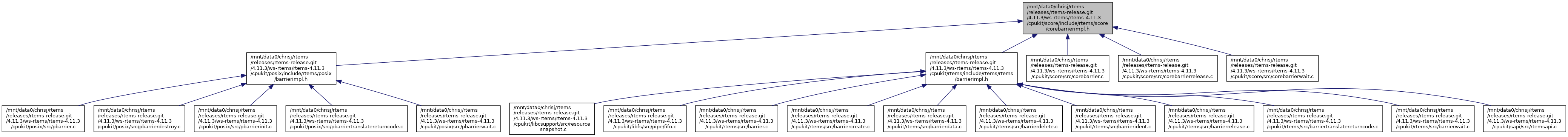

This graph shows which files directly or indirectly include this file:

Macros
#define	CORE_BARRIER_STATUS_LAST CORE_BARRIER_TIMEOUT
	Core barrier last status value. More...

#define	_CORE_barrier_Flush(_the_barrier, _remote_extract_callout, _status)
	This routine assists in the deletion of a barrier by flushing the associated wait queue. More...

Typedefs
typedef void(*	CORE_barrier_API_mp_support_callout) (Thread_Control *, Objects_Id)
	The following type defines the callout which the API provides to support global/multiprocessor operations on barriers.

Enumerations
enum	CORE_barrier_Status { CORE_BARRIER_STATUS_SUCCESSFUL, CORE_BARRIER_STATUS_AUTOMATICALLY_RELEASED, CORE_BARRIER_WAS_DELETED, CORE_BARRIER_TIMEOUT }
	Core Barrier handler return statuses. More...

Functions
void	_CORE_barrier_Initialize (CORE_barrier_Control the_barrier, CORE_barrier_Attributes the_barrier_attributes)
	Initialize core barrier. More...

RTEMS_INLINE_ROUTINE void	_CORE_barrier_Destroy (CORE_barrier_Control *the_barrier)

void	_CORE_barrier_Wait (CORE_barrier_Control the_barrier, Thread_Control executing, Objects_Id id, bool wait, Watchdog_Interval timeout, CORE_barrier_API_mp_support_callout api_barrier_mp_support)
	Wait for the barrier. More...

uint32_t	_CORE_barrier_Release (CORE_barrier_Control *the_barrier, Objects_Id id, CORE_barrier_API_mp_support_callout api_barrier_mp_support)
	Manually release the barrier. More...

RTEMS_INLINE_ROUTINE bool	_CORE_barrier_Is_automatic (CORE_barrier_Attributes *the_attribute)
	This function returns true if the automatic release attribute is enabled in the attribute_set and false otherwise. More...

RTEMS_INLINE_ROUTINE uint32_t	_CORE_barrier_Get_number_of_waiting_threads (CORE_barrier_Control *the_barrier)
	This routine returns the number of threads currently waiting at the barrier. More...

Detailed Description

Inlined Routines Associated with the SuperCore Barrier.

This include file contains all of the inlined routines associated with the SuperCore barrier.

Macros
