Red-black heap chunk descriptor. More...
#include <rbheap.h>

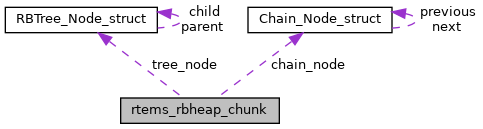

Collaboration diagram for rtems_rbheap_chunk:
Data Fields | |
| rtems_chain_node | chain_node |
| This chain node can be used in two chains. More... | |
| rtems_rbtree_node | tree_node |
| Tree node for chunks that represent a part of the managed memory area. More... | |
| uintptr_t | begin |
| Begin address of the chunk. More... | |
| uintptr_t | size |
| Size of the chunk in bytes. | |
Detailed Description
Red-black heap chunk descriptor.
Field Documentation
◆ begin
| uintptr_t rtems_rbheap_chunk::begin |
Begin address of the chunk.
The address alignment it specified in the rtems_rbheap_control.
◆ chain_node
| rtems_chain_node rtems_rbheap_chunk::chain_node |
This chain node can be used in two chains.
- the chain of spare chunk descriptors and
- the chain of free chunks in the managed memory area.
In case this chain node is not part of a chain, the chunk represents a used chunk in the managed memory area.
◆ tree_node
| rtems_rbtree_node rtems_rbheap_chunk::tree_node |
Tree node for chunks that represent a part of the managed memory area.
These chunks are either free or used.
The documentation for this struct was generated from the following file:
