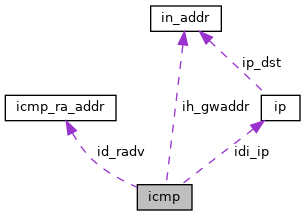

Collaboration diagram for icmp:
Data Fields | |
| u_char | icmp_type |
| u_char | icmp_code |
| u_short | icmp_cksum |
| union { | |
| u_char ih_pptr | |
| struct in_addr ih_gwaddr | |
| struct ih_idseq { | |
| uint16_t icd_id | |
| uint16_t icd_seq | |
| } ih_idseq | |
| int ih_void | |
| struct ih_pmtu { | |
| uint16_t ipm_void | |
| uint16_t ipm_nextmtu | |
| } ih_pmtu | |
| struct ih_rtradv { | |
| u_char irt_num_addrs | |
| u_char irt_wpa | |
| u_int16_t irt_lifetime | |
| } ih_rtradv | |
| } | icmp_hun |
| union { | |
| struct id_ts { | |
| uint32_t its_otime | |
| uint32_t its_rtime | |
| uint32_t its_ttime | |
| } id_ts | |
| struct id_ip { | |
| struct ip idi_ip | |
| } id_ip | |
| struct icmp_ra_addr id_radv | |
| u_int32_t id_mask | |
| char id_data [1] | |
| } | icmp_dun |
The documentation for this struct was generated from the following file:
- /mnt/data0/chrisj/rtems/releases/rtems-release.git/4.11.3/ws-rtems/rtems-4.11.3/cpukit/libnetworking/netinet/ip_icmp.h
