Non-volatile Disk Block Device Implementation. More...

#include <stdint.h>
#include <sys/ioctl.h>
#include <rtems.h>

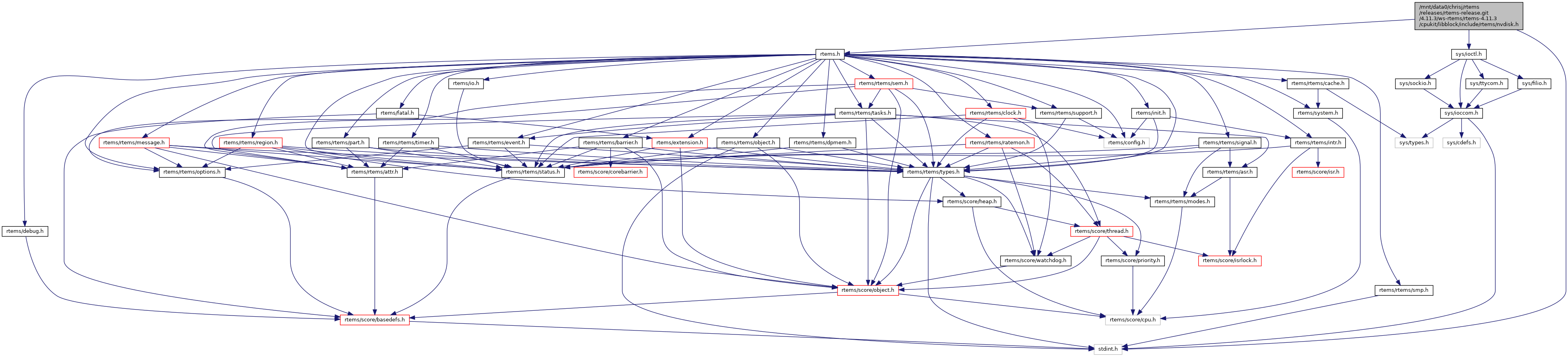

Include dependency graph for nvdisk.h:

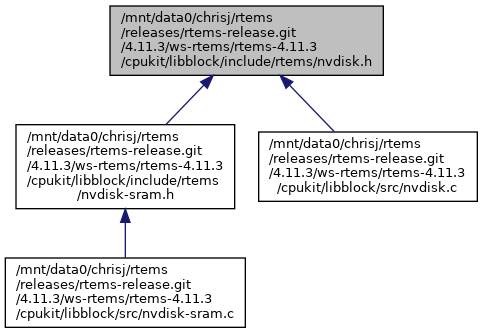

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rtems_nvdisk_monitor_data
	NV Disk Monitoring Data allows a user to obtain the current status of the disk. More...

struct	rtems_nvdisk_driver_handlers
	NV Low Level driver handlers. More...

struct	rtems_nvdisk_device_desc
	NV Device Descriptor holds the description of a device that is part of the NV disk. More...

struct	rtems_nvdisk_config
	RTEMS Non-Volatile Disk configuration table used to initialise the driver. More...

Macros
#define	RTEMS_NVDISK_DEVICE_BASE_NAME "/dev/nvd"
	The Non-volatile disk provides a simple directly mapped disk driver with checksums for each. More...

#define	RTEMS_NVDISK_IOCTL_ERASE_DISK _IO('B', 128)
	NV disk specific ioctl request types. More...

#define	RTEMS_NVDISK_IOCTL_MONITORING _IO('B', 129)

#define	RTEMS_NVDISK_IOCTL_INFO_LEVEL _IO('B', 130)

#define	RTEMS_NVDISK_IOCTL_PRINT_STATUS _IO('B', 131)

#define	RTEMS_NVDISK_KBYTES(_k) ((_k) * 1024)
	Return the number of kilo-bytes.

#define	RTEMS_NVDISK_CHECK_PAGES (1 << 0)
	Check the pages during initialisation to see which pages are valid and which are not. More...

Typedefs
typedef struct rtems_nvdisk_monitor_data	rtems_nvdisk_monitor_data
	NV Disk Monitoring Data allows a user to obtain the current status of the disk.

typedef struct rtems_nvdisk_driver_handlers	rtems_nvdisk_driver_handlers
	NV Low Level driver handlers. More...

typedef struct rtems_nvdisk_device_desc	rtems_nvdisk_device_desc
	NV Device Descriptor holds the description of a device that is part of the NV disk. More...

typedef struct rtems_nvdisk_config	rtems_nvdisk_config
	RTEMS Non-Volatile Disk configuration table used to initialise the driver.

Functions
rtems_device_driver	rtems_nvdisk_initialize (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Non-volatile disk device driver initialization. More...

Variables
const rtems_nvdisk_config	rtems_nvdisk_configuration []
	External reference to the configuration. More...

uint32_t	rtems_nvdisk_configuration_size
	External reference to the number of configurations. More...

Detailed Description

Non-volatile Disk Block Device Implementation.

Macro Definition Documentation

◆ RTEMS_NVDISK_CHECK_PAGES

#define RTEMS_NVDISK_CHECK_PAGES (1 << 0)

Check the pages during initialisation to see which pages are valid and which are not.

This could slow down initialising the disk driver.

◆ RTEMS_NVDISK_DEVICE_BASE_NAME

#define RTEMS_NVDISK_DEVICE_BASE_NAME "/dev/nvd"

The Non-volatile disk provides a simple directly mapped disk driver with checksums for each.

It is designed to provied a disk that can survive a restart. Examples are EEPROM devices which have byte writeable locations, or a battery backed up RAM disk.

The low level driver provides the physical access to the hardware. The base name of the nv disks.

◆ RTEMS_NVDISK_IOCTL_ERASE_DISK

#define RTEMS_NVDISK_IOCTL_ERASE_DISK _IO('B', 128)

NV disk specific ioctl request types.

To use open the device and issue the ioctl call.

int fd = open ("/dev/nvdisk0", O_WRONLY, 0);
if (fd < 0)
{
  printf ("driver open failed: %s\n", strerror (errno));
  exit (1);
}
if (ioctl (fd, RTEMS_NVDISK_IOCTL_ERASE_DISK) < 0)
{
  printf ("driver erase failed: %s\n", strerror (errno));
  exit (1);
}
close (fd);

Typedef Documentation

◆ rtems_nvdisk_device_desc

typedef struct rtems_nvdisk_device_desc rtems_nvdisk_device_desc

NV Device Descriptor holds the description of a device that is part of the NV disk.

Typically this structure is part of a table of the device which is referenced in the nvdisk configuration table. The reference is kept in the driver and used all the time to manage the nv device, therefore it must always exist.

◆ rtems_nvdisk_driver_handlers

typedef struct rtems_nvdisk_driver_handlers rtems_nvdisk_driver_handlers

NV Low Level driver handlers.

Typically this structure is part of a table of handlers in the device which is referenced in the nvdisk configuration table. The reference is kept in the driver and used all the time to manage the nv device, therefore it must always exist.

Function Documentation

◆ rtems_nvdisk_initialize()

rtems_device_driver rtems_nvdisk_initialize	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Non-volatile disk device driver initialization.

Place in a table as the initialisation entry and remainder of the entries are the RTEMS block device generic handlers.

Parameters

major	NV disk major device number.
minor	Minor device number, not applicable.
arg	Initialization argument, not applicable.

Returns: The rtems_device_driver is actually just rtems_status_code.

Non-volatile disk device driver initialization.

Todo:: Memory clean up on error is really badly handled.

Parameters

major	NV disk major device number.
minor	Minor device number, not applicable.
arg	Initialization argument, not applicable.

Variable Documentation

◆ rtems_nvdisk_configuration

const rtems_nvdisk_config rtems_nvdisk_configuration[]

External reference to the configuration.

Please supply. Support is present in confdefs.h for providing this variable.

◆ rtems_nvdisk_configuration_size

uint32_t rtems_nvdisk_configuration_size

External reference to the number of configurations.
