fsm.h File Reference

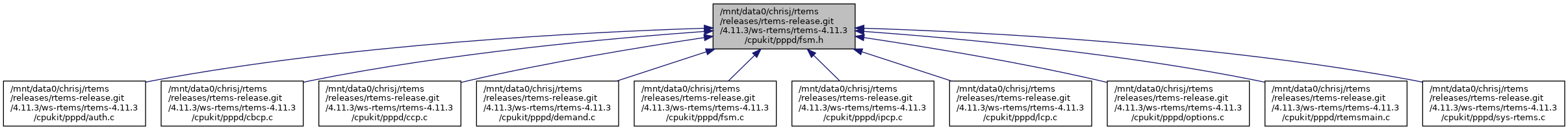

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	fsm
struct	fsm_callbacks

Macros
#define	HEADERLEN   4
#define	CONFREQ   1 /* Configuration Request */
#define	CONFACK   2 /* Configuration Ack */
#define	CONFNAK   3 /* Configuration Nak */
#define	CONFREJ   4 /* Configuration Reject */
#define	TERMREQ   5 /* Termination Request */
#define	TERMACK   6 /* Termination Ack */
#define	CODEREJ   7 /* Code Reject */
#define	INITIAL   0 /* Down, hasn't been opened */
#define	STARTING   1 /* Down, been opened */
#define	CLOSED   2 /* Up, hasn't been opened */
#define	STOPPED   3 /* Open, waiting for down event */
#define	CLOSING   4 /* Terminating the connection, not open */
#define	STOPPING   5 /* Terminating, but open */
#define	REQSENT   6 /* We've sent a Config Request */
#define	ACKRCVD   7 /* We've received a Config Ack */
#define	ACKSENT   8 /* We've sent a Config Ack */
#define	OPENED   9 /* Connection available */
#define	OPT_PASSIVE   1 /* Don't die if we don't get a response */
#define	OPT_RESTART   2 /* Treat 2nd OPEN as DOWN, UP */
#define	OPT_SILENT   4 /* Wait for peer to speak first */
#define	DEFTIMEOUT   5 /* Timeout time in seconds */
#define	DEFMAXTERMREQS   2 /* Maximum Terminate-Request transmissions */
#define	DEFMAXCONFREQS   10 /* Maximum Configure-Request transmissions */
#define	DEFMAXNAKLOOPS   5 /* Maximum number of nak loops */

Typedefs
typedef struct fsm	fsm
typedef struct fsm_callbacks	fsm_callbacks

Functions
void	fsm_init (fsm *)
void	fsm_lowerup (fsm *)
void	fsm_lowerdown (fsm *)
void	fsm_open (fsm *)
void	fsm_close (fsm *, char *)
void	fsm_input (fsm *, u_char *, int)
void	fsm_protreject (fsm *)
void	fsm_sdata (fsm *, u_char, u_char, u_char *, int)

Variables
int	peer_mru []
