cpu.h File Reference

Hitachi H8300 CPU Department Source. More...

#include <rtems/score/types.h>
#include <rtems/score/h8300.h>
#include <rtems/bspIo.h>

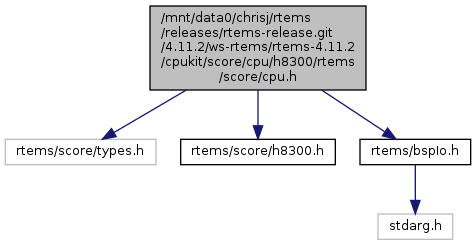

Include dependency graph for cpu.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	CPU_Per_CPU_control
	The CPU specific per-CPU control. More...
struct	Context_Control
	This defines the minimal set of integer and processor state registers that must be saved during a voluntary context switch from one thread to another. More...
struct	Context_Control_fp
	This defines the complete set of floating point registers that must be saved during any context switch from one thread to another. More...
struct	CPU_Interrupt_frame
	This defines the set of integer and processor state registers that must be saved during an interrupt. More...

Macros
#define	CPU_INLINE_ENABLE_DISPATCH   FALSE
#define	RTEMS_USE_16_BIT_OBJECT
#define	CPU_HAS_SOFTWARE_INTERRUPT_STACK   TRUE
#define	CPU_SIMPLE_VECTORED_INTERRUPTS   TRUE
#define	CPU_HAS_HARDWARE_INTERRUPT_STACK   FALSE
#define	CPU_ALLOCATE_INTERRUPT_STACK   TRUE
#define	CPU_HARDWARE_FP   FALSE
#define	CPU_ALL_TASKS_ARE_FP   FALSE
#define	CPU_IDLE_TASK_IS_FP   FALSE
#define	CPU_USE_DEFERRED_FP_SWITCH   TRUE
#define	CPU_PROVIDES_IDLE_THREAD_BODY   FALSE
#define	CPU_STACK_GROWS_UP   FALSE
#define	CPU_STRUCTURE_ALIGNMENT
#define	CPU_TIMESTAMP_USE_STRUCT_TIMESPEC   TRUE
#define	CPU_BIG_ENDIAN   TRUE
#define	CPU_LITTLE_ENDIAN   FALSE
#define	CPU_MODES_INTERRUPT_MASK   0x00000001
#define	CPU_PER_CPU_CONTROL_SIZE   0
#define	nogap   __attribute__ ((packed))
#define	_CPU_Context_Get_SP(_context)   (_context)->er7
#define	CPU_CONTEXT_FP_SIZE   sizeof( Context_Control_fp )
#define	CPU_MPCI_RECEIVE_SERVER_EXTRA_STACK   0
#define	CPU_INTERRUPT_NUMBER_OF_VECTORS   64
#define	CPU_INTERRUPT_MAXIMUM_VECTOR_NUMBER   (CPU_INTERRUPT_NUMBER_OF_VECTORS - 1)
#define	CPU_PROVIDES_ISR_IS_IN_PROGRESS   FALSE
#define	CPU_STACK_MINIMUM_SIZE   (1536)
#define	CPU_SIZEOF_POINTER   2
#define	CPU_ALIGNMENT   8
#define	CPU_HEAP_ALIGNMENT   CPU_ALIGNMENT
#define	CPU_PARTITION_ALIGNMENT   CPU_ALIGNMENT
#define	CPU_STACK_ALIGNMENT   2
#define	_CPU_Initialize_vectors()
#define	_CPU_ISR_Disable(_isr_cookie)
#define	_CPU_ISR_Enable(_isr_cookie)
#define	_CPU_ISR_Flash(_isr_cookie)
#define	_CPU_ISR_Set_level(_new_level)
#define	CPU_CCR_INTERRUPTS_ON   0x80
#define	CPU_CCR_INTERRUPTS_OFF   0x00
#define	_CPU_Context_Initialize(_the_context, _stack_base, _size, _isr, _entry_point, _is_fp, _tls_area)
#define	_CPU_Context_Restart_self(_the_context)   _CPU_Context_restore( (_the_context) );
#define	_CPU_Context_Fp_start(_base, _offset)   ( (void *) (_base) + (_offset) )
#define	_CPU_Context_Initialize_fp(_destination)
#define	_CPU_Fatal_halt(_source, _error)
#define	CPU_USE_GENERIC_BITFIELD_CODE   TRUE
#define	CPU_USE_GENERIC_BITFIELD_DATA   TRUE
#define	_CPU_Bitfield_Find_first_bit(_value, _output)
#define	_CPU_Priority_Mask(_bit_number)   ( 1 << (_bit_number) )
#define	_CPU_Priority_bits_index(_priority)   (_priority)
#define	CPU_swap_u16(value)   (((value&0xff) << 8) | ((value >> 8)&0xff))

Typedefs
typedef CPU_Interrupt_frame	CPU_Exception_frame
typedef uint32_t	CPU_Counter_ticks

Functions
uint32_t	_CPU_ISR_Get_level (void)
	Return the current interrupt disable level for this task in the format used by the interrupt level portion of the task mode. More...
void	_CPU_Initialize (void)
	CPU initialization. More...
void	_CPU_ISR_install_raw_handler (uint32_t vector, proc_ptr new_handler, proc_ptr *old_handler)
	This routine installs a "raw" interrupt handler directly into the processor's vector table. More...
void	_CPU_ISR_install_vector (uint32_t vector, proc_ptr new_handler, proc_ptr *old_handler)
	This routine installs an interrupt vector. More...
void	_CPU_Install_interrupt_stack (void)
	This routine installs the hardware interrupt stack pointer. More...
void *	_CPU_Thread_Idle_body (uint32_t)
void	_CPU_Context_switch (Context_Control *run, Context_Control *heir)
	CPU switch context. More...
void	_CPU_Context_restore (Context_Control *new_context)
	This routine is generally used only to restart self in an efficient manner. More...
void	_CPU_Context_save_fp (Context_Control_fp **fp_context_ptr)
	This routine saves the floating point context passed to it. More...
void	_CPU_Context_restore_fp (Context_Control_fp **fp_context_ptr)
	This routine restores the floating point context passed to it. More...
void	_CPU_Exception_frame_print (const CPU_Exception_frame *frame)
	Prints the exception frame via printk(). More...
CPU_Counter_ticks	_CPU_Counter_read (void)
void	H8BD_Install_IRQ (uint32_t vector, proc_ptr new_handler, proc_ptr *old_handler)

Variables
SCORE_EXTERN Context_Control_fp	_CPU_Null_fp_context

Detailed Description

Hitachi H8300 CPU Department Source.

This include file contains information pertaining to the H8300 processor.

Macro Definition Documentation

_CPU_Bitfield_Find_first_bit

#define _CPU_Bitfield_Find_first_bit	(		_value,
			_output
	)

Value:

{ \
    (_output) = 0;   /* do something to prevent warnings */ \
  }

_CPU_Context_Initialize

#define _CPU_Context_Initialize	(		_the_context,
			_stack_base,
			_size,
			_isr,
			_entry_point,
			_is_fp,
			_tls_area
	)

Value:

/* Locate Me */ \
  do { \
    uintptr_t   _stack; \
    \
    if ( (_isr) ) (_the_context)->ccr = CPU_CCR_INTERRUPTS_OFF; \
    else          (_the_context)->ccr = CPU_CCR_INTERRUPTS_ON; \
    \
    (void) _is_fp; /* to eliminate set but not used warning */ \
    _stack = ((uintptr_t)(_stack_base)) + (_size) - 4; \
    *((proc_ptr *)(_stack)) = (_entry_point); \
     (_the_context)->er7     = (void *) _stack; \
     (_the_context)->er6     = (void *) _stack; \
     (_the_context)->er5     = 0; \
     (_the_context)->er4     = 1; \
     (_the_context)->er3     = 2; \
  } while (0)

_CPU_Context_Initialize_fp

#define _CPU_Context_Initialize_fp

(

_destination

)

Value:

{ \
   *(*(_destination)) = _CPU_Null_fp_context; \
  }

_CPU_Fatal_halt

#define _CPU_Fatal_halt	(		_source,
			_error
	)

Value:

printk("Fatal Error %d.%d Halted\n",_source, _error); \
        for(;;)

_CPU_ISR_Disable

#define _CPU_ISR_Disable

(

_isr_cookie

)

Value:

do { \
    (_isr_cookie) = 0; \
  } while (0)

_CPU_ISR_Enable

#define _CPU_ISR_Enable

(

_isr_cookie

)

Value:

do { \
    (_isr_cookie) = (_isr_cookie); \
  } while (0)

_CPU_ISR_Flash

#define _CPU_ISR_Flash

(

_isr_cookie

)

Value:

do { \
    _CPU_ISR_Enable( _isr_cookie ); \
    _CPU_ISR_Disable( _isr_cookie ); \
  } while (0)

_CPU_ISR_Set_level

#define _CPU_ISR_Set_level

(

_new_level

)

Value:

{ \
    if ( _new_level ) __asm__ volatile ( "orc #0x80,ccr\n" ); \
    else              __asm__ volatile ( "andc #0x7f,ccr\n" ); \
  }
