drvmgr_drvinf.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <drvmgr/drvmgr.h>
#include "drvmgr_internal.h"

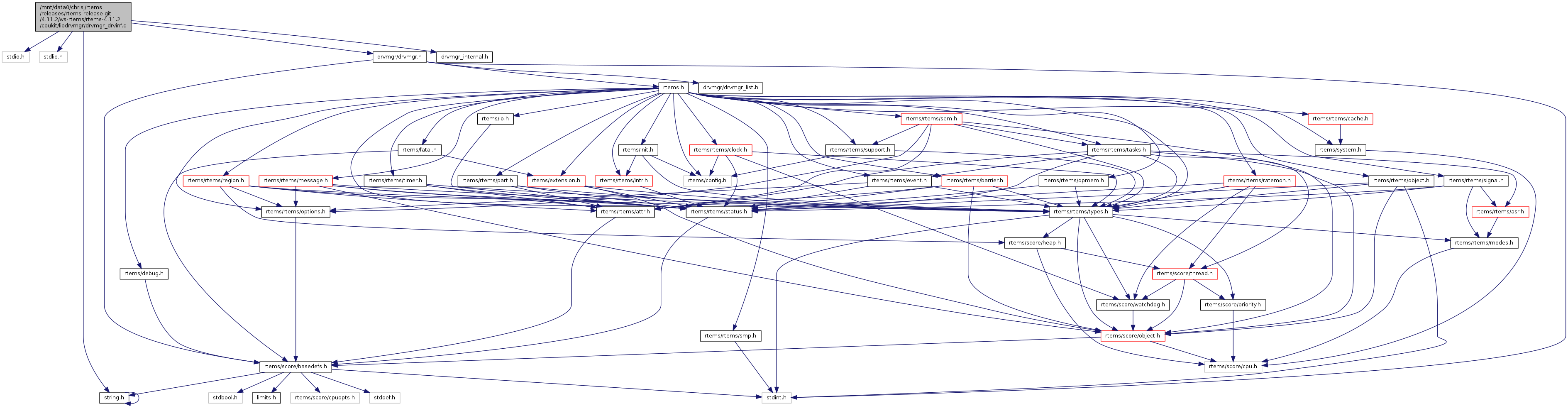

Include dependency graph for drvmgr_drvinf.c:

Functions
int	drvmgr_get_dev (struct drvmgr_drv *drv, int minor, struct drvmgr_dev **pdev)
	Get Device pointer from Driver and Driver minor number. More...
int	drvmgr_freq_get (struct drvmgr_dev *dev, int options, unsigned int *freq_hz)
	Get Bus frequency in Hertz. More...
int	drvmgr_get_dev_prefix (struct drvmgr_dev *dev, char *dev_prefix)
	Get device name prefix, this name can be used to register a unique name in the bus->error filesystem or to get an idea where the device is located. More...
int	drvmgr_interrupt_register (struct drvmgr_dev *dev, int index, const char *info, drvmgr_isr isr, void *arg)
	Register a shared interrupt handler. More...
int	drvmgr_interrupt_unregister (struct drvmgr_dev *dev, int index, drvmgr_isr isr, void *arg)
	Unregister an interrupt handler. More...
int	drvmgr_interrupt_clear (struct drvmgr_dev *dev, int index)
	Clear (ACK) pending interrupt. More...
int	drvmgr_interrupt_unmask (struct drvmgr_dev *dev, int index)
	Force unmasking/enableing an interrupt on the interrupt controller, this is not normally used, if used the caller has masked/disabled the interrupt just before. More...
int	drvmgr_interrupt_mask (struct drvmgr_dev *dev, int index)
	Force masking/disable an interrupt on the interrupt controller, this is not normally performed since this will stop all other (shared) ISRs to be disabled until _unmask() is called. More...
int	drvmgr_on_rootbus (struct drvmgr_dev *dev)
	Return 0 if dev is not located on the root bus, 1 if on root bus.

Function Documentation

drvmgr_freq_get()

int drvmgr_freq_get	(	struct drvmgr_dev *	dev,
		int	options,
		unsigned int *	freq_hz
	)

Get Bus frequency in Hertz.

Frequency is stored into address of freq_hz.

Parameters

dev	The Device to get Bus frequency for.
options	Bus-type specific options
freq_hz	Location where Bus Frequency will be stored.

drvmgr_get_dev()

int drvmgr_get_dev	(	struct drvmgr_drv *	drv,
		int	minor,
		struct drvmgr_dev **	pdev
	)

Get Device pointer from Driver and Driver minor number.

Parameters

drv	Driver the device is united with.
minor	Driver minor number assigned to device.
pdev	Location where the Device point will be stored.

Returns

Zero on success. -1 on failure, when device was not found in driver device list.

drvmgr_get_dev_prefix()

int drvmgr_get_dev_prefix	(	struct drvmgr_dev *	dev,
		char *	dev_prefix
	)

Get device name prefix, this name can be used to register a unique name in the bus->error filesystem or to get an idea where the device is located.

Parameters

dev	The Device to get the device Prefix for.
dev_prefix	Location where the prefix will be stored.

References drvmgr_bus_params::dev_prefix, drvmgr_bus::ops, and drvmgr_dev::parent.

drvmgr_interrupt_clear()

int drvmgr_interrupt_clear	(	struct drvmgr_dev *	dev,
		int	index
	)

Clear (ACK) pending interrupt.

Parameters

dev	Device to clear interrupt for.
index	Index is used to identify the IRQ number if hardware has multiple IRQ sources. Normally Index is set to 0 to indicated the first and only IRQ source. A negative index is interpreted as a absolute bus IRQ number.
isr	Interrupt Service Routine, previously registered.
arg	Optional ISR argument, previously registered.

drvmgr_interrupt_mask()

int drvmgr_interrupt_mask	(	struct drvmgr_dev *	dev,
		int	index
	)

Force masking/disable an interrupt on the interrupt controller, this is not normally performed since this will stop all other (shared) ISRs to be disabled until _unmask() is called.

Parameters

dev	Device to mask interrupt for.
index	Index is used to identify the IRQ number if hardware has multiple IRQ sources. Normally Index is set to 0 to indicated the first and only IRQ source. A negative index is interpreted as a absolute bus IRQ number.

drvmgr_interrupt_register()

int drvmgr_interrupt_register	(	struct drvmgr_dev *	dev,
		int	index,
		const char *	info,
		drvmgr_isr	isr,
		void *	arg
	)

Register a shared interrupt handler.

Since this service is shared among interrupt drivers/handlers the handler[arg] must be installed before the interrupt can be cleared or disabled. The handler is by default disabled after registration.

Parameters

index	Index is used to identify the IRQ number if hardware has multiple IRQ sources. Normally Index is set to 0 to indicated the first and only IRQ source. A negative index is interpreted as a absolute bus IRQ number.
isr	Interrupt Service Routine.
arg	Optional ISR argument.

drvmgr_interrupt_unmask()

int drvmgr_interrupt_unmask	(	struct drvmgr_dev *	dev,
		int	index
	)

Force unmasking/enableing an interrupt on the interrupt controller, this is not normally used, if used the caller has masked/disabled the interrupt just before.

Parameters

dev	Device to clear interrupt for.
index	Index is used to identify the IRQ number if hardware has multiple IRQ sources. Normally Index is set to 0 to indicated the first and only IRQ source. A negative index is interpreted as a absolute bus IRQ number.
isr	Interrupt Service Routine, previously registered.
arg	Optional ISR argument, previously registered.

drvmgr_interrupt_unregister()

int drvmgr_interrupt_unregister	(	struct drvmgr_dev *	dev,
		int	index,
		drvmgr_isr	isr,
		void *	arg
	)

Unregister an interrupt handler.

This also disables the interrupt before unregistering the interrupt handler.

Parameters

index	Index is used to identify the IRQ number if hardware has multiple IRQ sources. Normally Index is set to 0 to indicated the first and only IRQ source. A negative index is interpreted as a absolute bus IRQ number.
isr	Interrupt Service Routine, previously registered.
arg	Optional ISR argument, previously registered.
