console.h File Reference

Console Driver for all Boards. More...

#include <rtems/io.h>

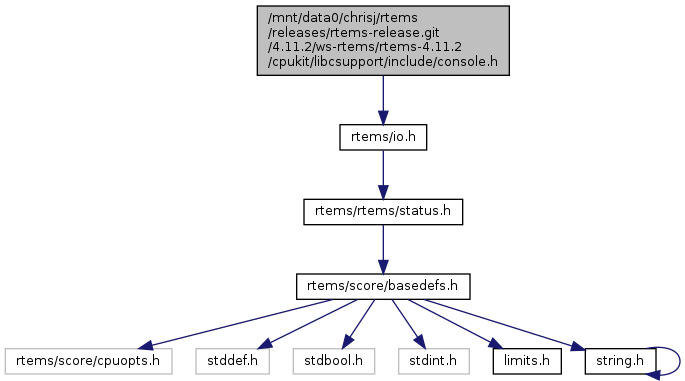

Include dependency graph for console.h:

Go to the source code of this file.

Macros
#define	CONSOLE_DEVICE_NAME   "/dev/console"
	This macro defines the standard name for the console device that is available to applications.
#define	CONSOLE_DRIVER_TABLE_ENTRY
	This macro defines the standard device driver table entry for a console device driver. More...

Functions
rtems_device_driver	console_initialize (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Console initialization entry point. More...
rtems_device_driver	console_open (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Console open entry point. More...
rtems_device_driver	console_close (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Console close entry point. More...
rtems_device_driver	console_read (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Console read entry point. More...
rtems_device_driver	console_write (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Console write entry point. More...
rtems_device_driver	console_control (rtems_device_major_number major, rtems_device_minor_number minor, void *arg)
	Console IO control entry point. More...

Detailed Description

Console Driver for all Boards.

This file describes the Console Device Driver for all boards. This driver provides support for the standard C Library.

Macro Definition Documentation

CONSOLE_DRIVER_TABLE_ENTRY

#define CONSOLE_DRIVER_TABLE_ENTRY

Value:

{ console_initialize, console_open, console_close, \
    console_read, console_write, console_control }

This macro defines the standard device driver table entry for a console device driver.

Function Documentation

console_close()

rtems_device_driver console_close	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Console close entry point.

This method closes a specific device supported by the console device driver.

Parameters

[in]	major	is the device driver major number
[in]	minor	is the device driver minor number
[in]	arg	is the parameters to this call

Return values

RTEMS_SUCCESSFUL

The device driver is successfully closed.

console_control()

rtems_device_driver console_control	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Console IO control entry point.

This method performs an IO Control operation on a specific device supported by the console device driver.

Parameters

[in]	major	is the device driver major number
[in]	minor	is the device driver minor number
[in]	arg	is the parameters to this call

Return values

RTEMS_SUCCESSFUL

the device driver IO control operation is successfully performed.

console_initialize()

rtems_device_driver console_initialize	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Console initialization entry point.

This method initializes the console device driver.

Parameters

[in]	major	is the device driver major number.
[in]	minor	is the device driver minor number.
[in]	arg	is the parameters to this call.

Return values

RTEMS_SUCCESSFUL

The device driver is successfully initialized.

console_open()

rtems_device_driver console_open	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Console open entry point.

This method opens a specific device supported by the console device driver.

Parameters

[in]	major	is the device driver major number
[in]	minor	is the device driver minor number
[in]	arg	is the parameters to this call

Return values

RTEMS_SUCCESSFUL

The device driver is successfully opened.

console_read()

rtems_device_driver console_read	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Console read entry point.

This method reads from a specific device supported by the console device driver.

Parameters

[in]	major	is the device driver major number
[in]	minor	is the device driver minor number
[in]	arg	is the parameters to this call

Return values

RTEMS_SUCCESSFUL

The device is successfully read from.

console_write()

rtems_device_driver console_write	(	rtems_device_major_number	major,
		rtems_device_minor_number	minor,
		void *	arg
	)

Console write entry point.

This method writes to a specific device supported by the console device driver.

Parameters

[in]	major	is the device driver major number
[in]	minor	is the device driver minor number
[in]	arg	is the parameters to this call

Return values

RTEMS_SUCCESSFUL

The device is successfully written.
