Provides services for all APIs. More...

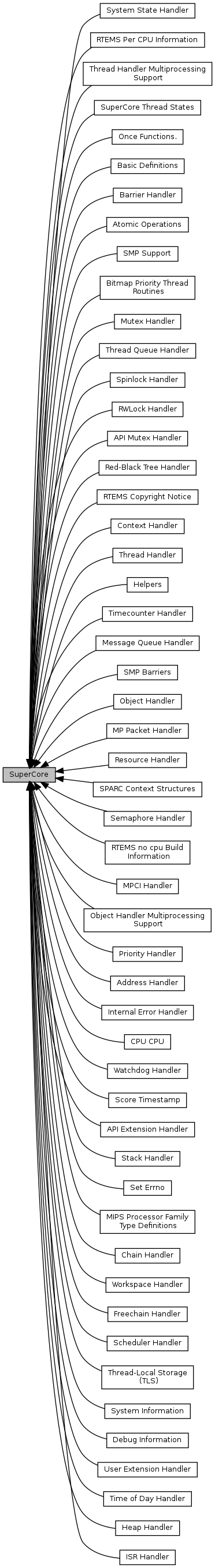

Collaboration diagram for SuperCore:
|
Modules | |
| CPU CPU | |
| Provides CPU architecture dependent services. | |
| RTEMS no cpu Build Information | |
| MIPS Processor Family Type Definitions | |
| SPARC Context Structures | |
| Generally there are 2 types of context to save. | |
| Debug Information | |
| Address Handler | |
| This handler encapsulates functionality which abstracts address manipulation in a portable manner. | |
| API Extension Handler | |
| This handler encapsulates functionality which provides mechanisms for the SuperCore to perform API specific actions without there beingg "up-references" from the SuperCore to APIs. | |
| API Mutex Handler | |
| Provides routines to ensure mutual exclusion on API level. | |
| Atomic Operations | |
| Support for atomic operations. | |
| Basic Definitions | |
| Chain Handler | |
| The Chain Handler is used to manage sets of entities. | |
| Context Handler | |
| This handler encapsulates functionality which abstracts thread context management in a portable manner. | |
| RTEMS Copyright Notice | |
| Barrier Handler | |
| This handler encapsulates functionality which provides the foundation Barrier services used in all of the APIs supported by RTEMS. | |
| Message Queue Handler | |
| This handler encapsulates functionality which provides the foundation Message Queue services used in all of the APIs supported by RTEMS. | |
| Mutex Handler | |
| This handler encapsulates functionality which provides the foundation Mutex services used in all of the APIs supported by RTEMS. | |
| RWLock Handler | |
| This handler encapsulates functionality which provides the foundation RWLock services used in all of the APIs supported by RTEMS. | |
| Semaphore Handler | |
| This handler encapsulates functionality which provides the foundation Semaphore services used in all of the APIs supported by RTEMS. | |
| Spinlock Handler | |
| This handler encapsulates functionality which provides the foundation Spinlock services used in all of the APIs supported by RTEMS. | |
| Freechain Handler | |
| The Freechain Handler is used to manage a chain of nodes, of which size can automatically increase when there is no free node left. | |
| Heap Handler | |
| The Heap Handler provides a heap. | |
| Internal Error Handler | |
| This handler encapsulates functionality which provides the foundation Semaphore services used in all of the APIs supported by RTEMS. | |
| ISR Handler | |
| This handler encapsulates functionality which provides the foundation ISR services used in all of the APIs supported by RTEMS. | |
| MPCI Handler | |
| The MPCI Handler encapsulates functionality which is related to the generation, receipt, and processing of remote operations in a multiprocessor system. | |
| MP Packet Handler | |
| This handler encapsulates the primary definition of MPCI packets. | |
| Object Handler | |
| Object Handler Multiprocessing Support | |
| This handler encapsulates functionality which is used to manage objects which have been declared to be globally visible. | |
| Once Functions. | |
| The _Once() function for pthread_once() and rtems_gxx_once(). | |
| RTEMS Per CPU Information | |
| This defines the per CPU state information required by RTEMS and the BSP. | |
| Priority Handler | |
| This handler encapsulates functionality which is used to manage thread priorities. | |
| Bitmap Priority Thread Routines | |
| Red-Black Tree Handler | |
| The Red-Black Tree Handler is used to manage sets of entities. | |
| Resource Handler | |
| Support for resource dependency management. | |
| Scheduler Handler | |
| This handler encapsulates functionality related to managing sets of threads that are ready for execution. | |
| SMP Support | |
| This defines the interface of the SuperCore SMP support. | |
| SMP Barriers | |
| The SMP barrier provides barrier synchronization for SMP systems at the lowest level. | |
| Stack Handler | |
| This handler encapsulates functionality which is used in the management of thread stacks. | |
| SuperCore Thread States | |
| This handler encapsulates functionality which relates to the management of the state bitmap associated with each thread. | |
| System State Handler | |
| Management of the internal system state of RTEMS. | |
| Thread Handler | |
| This handler encapsulates functionality related to the management of threads. | |
| Thread Handler Multiprocessing Support | |
| This handler encapsulates functionality which is related to managing threads in a multiprocessor system configuration. | |
| Thread Queue Handler | |
| This handler provides the capability to have threads block in ordered sets. | |
| Timecounter Handler | |
| Helpers | |
| This handler encapsulates functionality related to manipulating POSIX struct timespecs. | |
| Score Timestamp | |
| This handler encapsulates functionality related to manipulating SuperCore Timestamps. | |
| Thread-Local Storage (TLS) | |
| Thread-local storage (TLS) support. | |
| Time of Day Handler | |
| The following constants are related to the time of day and are independent of RTEMS. | |
| User Extension Handler | |
| The User Extension Handler provides invocation of application dependent routines at critical points in the life of each thread and the system as a whole. | |
| Watchdog Handler | |
| This handler encapsulates functionality related to the scheduling of watchdog functions to be called at specific times in the future. | |
| Workspace Handler | |
| This handler encapsulates functionality related to the management of the RTEMS Executive Workspace. | |
| Set Errno | |
| System Information | |
Files | |
| file | basedefs.h |
| Basic Definitions. | |
| file | objectgetinfoid.c |
| Get Information of an Object from an ID. | |
| file | objectgetnameasstring.c |
| Extracts a Node from a Chain. | |
| file | objectnamespaceremove.c |
| Removes Object from Namespace. | |
| file | objectnametoid.c |
| Object Name To Id. | |
| file | smp.c |
| SMP Support. | |
Detailed Description
Provides services for all APIs.
