Data Related to the Manipulation of Threads for the EDF Scheduler. More...
#include <rtems/score/priority.h>#include <rtems/score/scheduler.h>#include <rtems/score/schedulerpriority.h>#include <rtems/score/rbtree.h>

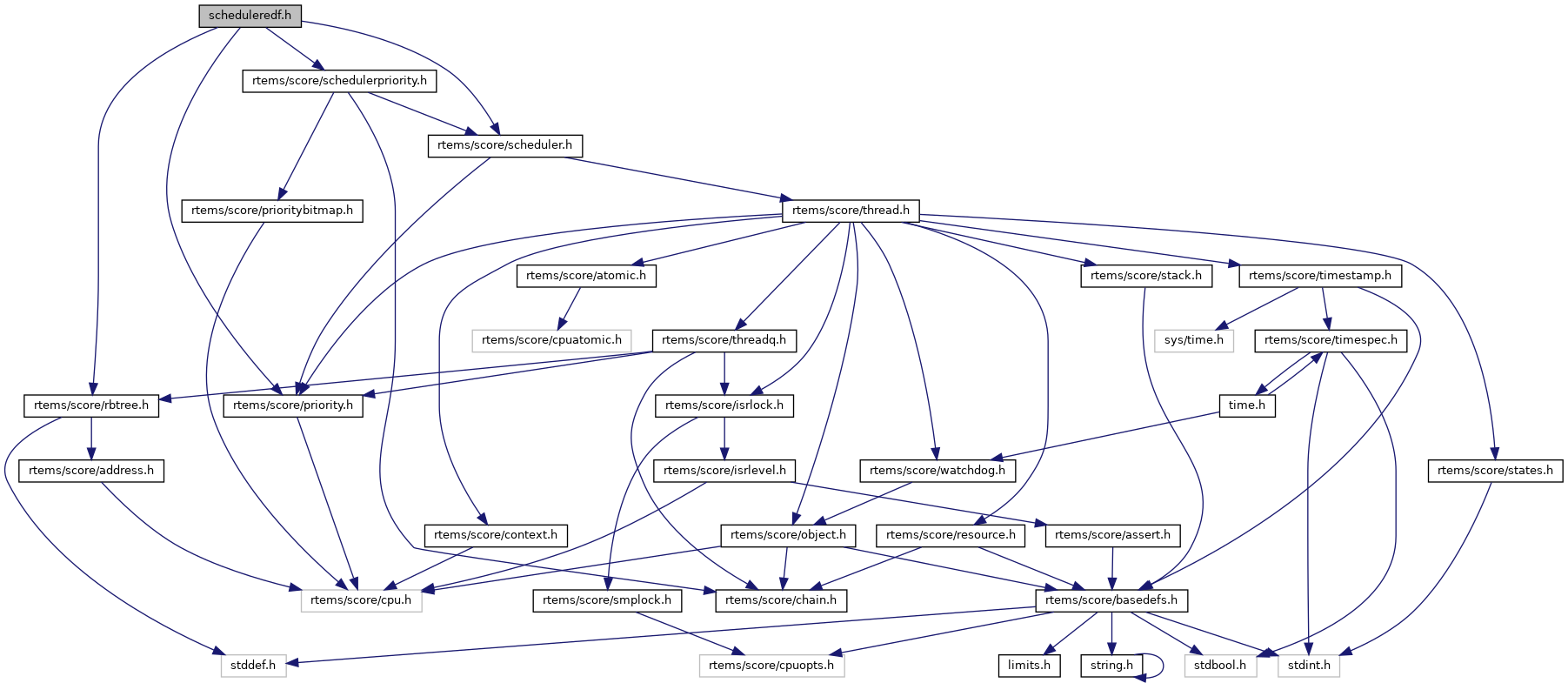

Include dependency graph for scheduleredf.h:

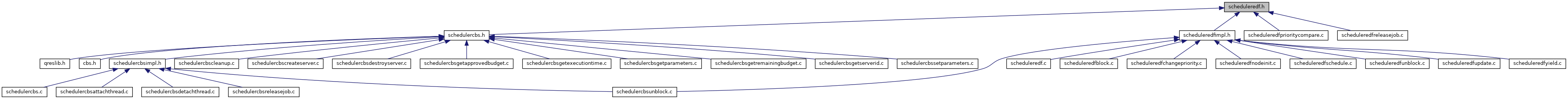

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | Scheduler_EDF_Context |
| struct | Scheduler_EDF_Node |
| Scheduler node specialization for EDF schedulers. More... | |
Macros | |
| #define | SCHEDULER_EDF_ENTRY_POINTS |
| Entry points for the Earliest Deadline First Scheduler. More... | |
| #define | SCHEDULER_EDF_PRIO_MSB 0x80000000 |
| This is just a most significant bit of Priority_Control type. More... | |
Enumerations | |
| enum | Scheduler_EDF_Queue_state { SCHEDULER_EDF_QUEUE_STATE_NOT_PRESENTLY, SCHEDULER_EDF_QUEUE_STATE_YES, SCHEDULER_EDF_QUEUE_STATE_NEVER_HAS_BEEN } |
| This enumeration distiguishes state of a thread with respect to the ready queue. | |
Functions | |
| void | _Scheduler_EDF_Initialize (const Scheduler_Control *scheduler) |
| Initialize EDF scheduler. More... | |
| void | _Scheduler_EDF_Block (const Scheduler_Control *scheduler, Thread_Control *the_thread) |
| Removes thread from ready queue. More... | |
| void | _Scheduler_EDF_Schedule (const Scheduler_Control *scheduler, Thread_Control *the_thread) |
| Sets the heir thread to be the next ready thread in the rbtree ready queue. More... | |
| void | _Scheduler_EDF_Node_initialize (const Scheduler_Control *scheduler, Thread_Control *the_thread) |
| Initializes an EDF specific scheduler node of the_thread. More... | |
| void | _Scheduler_EDF_Update_priority (const Scheduler_Control *scheduler, Thread_Control *the_thread, Priority_Control new_priority) |
| Updates position in the ready queue of the_thread. More... | |
| Scheduler_Void_or_thread | _Scheduler_EDF_Unblock (const Scheduler_Control *scheduler, Thread_Control *the_thread) |
| Adds the_thread to the scheduling decision. More... | |
| Scheduler_Void_or_thread | _Scheduler_EDF_Change_priority (const Scheduler_Control *scheduler, Thread_Control *the_thread, Priority_Control new_priority, bool prepend_it) |
| Scheduler_Void_or_thread | _Scheduler_EDF_Yield (const Scheduler_Control *scheduler, Thread_Control *the_thread) |
| invoked when a thread wishes to voluntarily transfer control of the processor to another thread with equal deadline. More... | |
| int | _Scheduler_EDF_Priority_compare (Priority_Control p1, Priority_Control p2) |
| Explicitly compare absolute dedlines (priorities) of threads. More... | |
| void | _Scheduler_EDF_Release_job (const Scheduler_Control *scheduler, Thread_Control *the_thread, uint32_t deadline) |
| Called when a new job of task is released. More... | |
Detailed Description
Data Related to the Manipulation of Threads for the EDF Scheduler.
This include file contains all the constants and structures associated with the manipulation of threads for the EDF scheduler.
