lcp.c File Reference

#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include "pppd.h"
#include "fsm.h"
#include "lcp.h"
#include "chap.h"
#include "magic.h"

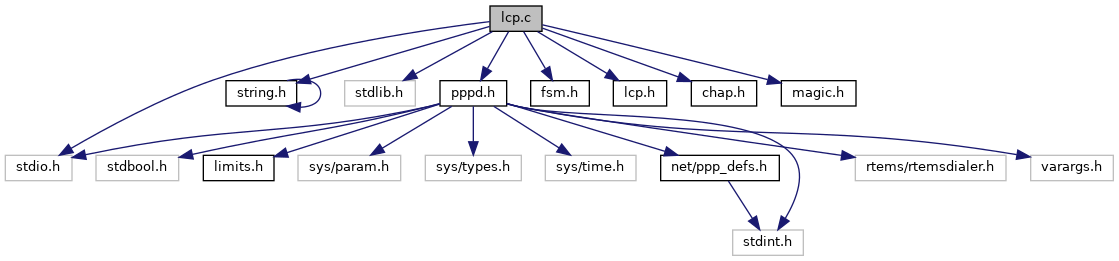

Include dependency graph for lcp.c:

Macros
#define	RCSID   "$Id$";
#define	CILEN_VOID   2
#define	CILEN_CHAR   3
#define	CILEN_SHORT   4 /* CILEN_VOID + 2 */
#define	CILEN_CHAP   5 /* CILEN_VOID + 2 + 1 */
#define	CILEN_LONG   6 /* CILEN_VOID + 4 */
#define	CILEN_LQR   8 /* CILEN_VOID + 2 + 4 */
#define	CILEN_CBCP   3
#define	CODENAME(x)
#define	LENCIVOID(neg)   ((neg) ? CILEN_VOID : 0)
#define	LENCICHAP(neg)   ((neg) ? CILEN_CHAP : 0)
#define	LENCISHORT(neg)   ((neg) ? CILEN_SHORT : 0)
#define	LENCILONG(neg)   ((neg) ? CILEN_LONG : 0)
#define	LENCILQR(neg)   ((neg) ? CILEN_LQR: 0)
#define	LENCICBCP(neg)   ((neg) ? CILEN_CBCP: 0)
#define	ADDCIVOID(opt, neg)
#define	ADDCISHORT(opt, neg, val)
#define	ADDCICHAP(opt, neg, val, digest)
#define	ADDCILONG(opt, neg, val)
#define	ADDCILQR(opt, neg, val)
#define	ADDCICHAR(opt, neg, val)
#define	ACKCIVOID(opt, neg)
#define	ACKCISHORT(opt, neg, val)
#define	ACKCICHAR(opt, neg, val)
#define	ACKCICHAP(opt, neg, val, digest)
#define	ACKCILONG(opt, neg, val)
#define	ACKCILQR(opt, neg, val)
#define	NAKCIVOID(opt, neg, code)
#define	NAKCICHAP(opt, neg, code)
#define	NAKCICHAR(opt, neg, code)
#define	NAKCISHORT(opt, neg, code)
#define	NAKCILONG(opt, neg, code)
#define	NAKCILQR(opt, neg, code)
#define	REJCIVOID(opt, neg)
#define	REJCISHORT(opt, neg, val)
#define	REJCICHAP(opt, neg, val, digest)
#define	REJCILONG(opt, neg, val)
#define	REJCILQR(opt, neg, val)
#define	REJCICBCP(opt, neg, val)

Functions
void	lcp_open (int unit)
void	lcp_close (int unit, char *reason)
void	lcp_lowerup (int unit)
void	lcp_lowerdown (int unit)
void	lcp_sprotrej (int unit, u_char *p, int len)

Variables
fsm	lcp_fsm [NUM_PPP]
lcp_options	lcp_wantoptions [NUM_PPP]
lcp_options	lcp_gotoptions [NUM_PPP]
lcp_options	lcp_allowoptions [NUM_PPP]
lcp_options	lcp_hisoptions [NUM_PPP]
uint32_t	xmit_accm [NUM_PPP][8]
struct protent	lcp_protent
int	lcp_loopbackfail = DEFLOOPBACKFAIL

Macro Definition Documentation

ACKCICHAP

#define ACKCICHAP	(		opt,
			neg,
			val,
			digest
	)

Value:

if (neg) { \
        if ((len -= CILEN_CHAP) < 0) \
            goto bad; \
        GETCHAR(citype, p); \
        GETCHAR(cilen, p); \
        if (cilen != CILEN_CHAP || \
            citype != opt) \
            goto bad; \
        GETSHORT(cishort, p); \
        if (cishort != val) \
            goto bad; \
        GETCHAR(cichar, p); \
        if (cichar != digest) \
          goto bad; \
    }

ACKCICHAR

#define ACKCICHAR	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        if ((len -= CILEN_CHAR) < 0) \
            goto bad; \
        GETCHAR(citype, p); \
        GETCHAR(cilen, p); \
        if (cilen != CILEN_CHAR || \
            citype != opt) \
            goto bad; \
        GETCHAR(cichar, p); \
        if (cichar != val) \
            goto bad; \
    }

ACKCILONG

#define ACKCILONG	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        if ((len -= CILEN_LONG) < 0) \
            goto bad; \
        GETCHAR(citype, p); \
        GETCHAR(cilen, p); \
        if (cilen != CILEN_LONG || \
            citype != opt) \
            goto bad; \
        GETLONG(cilong, p); \
        if (cilong != val) \
            goto bad; \
    }

ACKCILQR

#define ACKCILQR	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        if ((len -= CILEN_LQR) < 0) \
            goto bad; \
        GETCHAR(citype, p); \
        GETCHAR(cilen, p); \
        if (cilen != CILEN_LQR || \
            citype != opt) \
            goto bad; \
        GETSHORT(cishort, p); \
        if (cishort != PPP_LQR) \
            goto bad; \
        GETLONG(cilong, p); \
        if (cilong != val) \
          goto bad; \
    }

ACKCISHORT

#define ACKCISHORT	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        if ((len -= CILEN_SHORT) < 0) \
            goto bad; \
        GETCHAR(citype, p); \
        GETCHAR(cilen, p); \
        if (cilen != CILEN_SHORT || \
            citype != opt) \
            goto bad; \
        GETSHORT(cishort, p); \
        if (cishort != val) \
            goto bad; \
    }

ACKCIVOID

#define ACKCIVOID	(		opt,
			neg
	)

Value:

if (neg) { \
        if ((len -= CILEN_VOID) < 0) \
            goto bad; \
        GETCHAR(citype, p); \
        GETCHAR(cilen, p); \
        if (cilen != CILEN_VOID || \
            citype != opt) \
            goto bad; \
    }

ADDCICHAP

#define ADDCICHAP	(		opt,
			neg,
			val,
			digest
	)

Value:

if (neg) { \
        PUTCHAR(opt, ucp); \
        PUTCHAR(CILEN_CHAP, ucp); \
        PUTSHORT(val, ucp); \
        PUTCHAR(digest, ucp); \
    }

ADDCICHAR

#define ADDCICHAR	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        PUTCHAR(opt, ucp); \
        PUTCHAR(CILEN_CHAR, ucp); \
        PUTCHAR(val, ucp); \
    }

ADDCILONG

#define ADDCILONG	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        PUTCHAR(opt, ucp); \
        PUTCHAR(CILEN_LONG, ucp); \
        PUTLONG(val, ucp); \
    }

ADDCILQR

#define ADDCILQR	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        PUTCHAR(opt, ucp); \
        PUTCHAR(CILEN_LQR, ucp); \
        PUTSHORT(PPP_LQR, ucp); \
        PUTLONG(val, ucp); \
    }

ADDCISHORT

#define ADDCISHORT	(		opt,
			neg,
			val
	)

Value:

if (neg) { \
        PUTCHAR(opt, ucp); \
        PUTCHAR(CILEN_SHORT, ucp); \
        PUTSHORT(val, ucp); \
    }

ADDCIVOID

#define ADDCIVOID	(		opt,
			neg
	)

Value:

if (neg) { \
        PUTCHAR(opt, ucp); \
        PUTCHAR(CILEN_VOID, ucp); \
    }

CODENAME

#define CODENAME

(

x

)

Value:

((x) == CONFACK ? "ACK" : \
                         (x) == CONFNAK ? "NAK" : "REJ")

NAKCICHAP

#define NAKCICHAP	(		opt,
			neg,
			code
	)

Value:

if (go->neg && \
        len >= CILEN_CHAP && \
        p[1] == CILEN_CHAP && \
        p[0] == opt) { \
        len -= CILEN_CHAP; \
        INCPTR(2, p); \
        GETSHORT(cishort, p); \
        GETCHAR(cichar, p); \
        no.neg = 1; \
        code \
    }

NAKCICHAR

#define NAKCICHAR	(		opt,
			neg,
			code
	)

Value:

if (go->neg && \
        len >= CILEN_CHAR && \
        p[1] == CILEN_CHAR && \
        p[0] == opt) { \
        len -= CILEN_CHAR; \
        INCPTR(2, p); \
        GETCHAR(cichar, p); \
        no.neg = 1; \
        code \
    }

NAKCILONG

#define NAKCILONG	(		opt,
			neg,
			code
	)

Value:

if (go->neg && \
        len >= CILEN_LONG && \
        p[1] == CILEN_LONG && \
        p[0] == opt) { \
        len -= CILEN_LONG; \
        INCPTR(2, p); \
        GETLONG(cilong, p); \
        no.neg = 1; \
        code \
    }

NAKCILQR

#define NAKCILQR	(		opt,
			neg,
			code
	)

Value:

if (go->neg && \
        len >= CILEN_LQR && \
        p[1] == CILEN_LQR && \
        p[0] == opt) { \
        len -= CILEN_LQR; \
        INCPTR(2, p); \
        GETSHORT(cishort, p); \
        GETLONG(cilong, p); \
        no.neg = 1; \
        code \
    }

NAKCISHORT

#define NAKCISHORT	(		opt,
			neg,
			code
	)

Value:

if (go->neg && \
        len >= CILEN_SHORT && \
        p[1] == CILEN_SHORT && \
        p[0] == opt) { \
        len -= CILEN_SHORT; \
        INCPTR(2, p); \
        GETSHORT(cishort, p); \
        no.neg = 1; \
        code \
    }

NAKCIVOID

#define NAKCIVOID	(		opt,
			neg,
			code
	)

Value:

if (go->neg && \
        len >= CILEN_VOID && \
        p[1] == CILEN_VOID && \
        p[0] == opt) { \
        len -= CILEN_VOID; \
        INCPTR(CILEN_VOID, p); \
        no.neg = 1; \
        code \
    }

REJCICBCP

#define REJCICBCP	(		opt,
			neg,
			val
	)

Value:

if (go->neg && \
        len >= CILEN_CBCP && \
        p[1] == CILEN_CBCP && \
        p[0] == opt) { \
        len -= CILEN_CBCP; \
        INCPTR(2, p); \
        GETCHAR(cichar, p); \
        /* Check rejected value. */ \
        if (cichar != val) \
            goto bad; \
        try.neg = 0; \
    }

REJCICHAP

#define REJCICHAP	(		opt,
			neg,
			val,
			digest
	)

Value:

if (go->neg && \
        len >= CILEN_CHAP && \
        p[1] == CILEN_CHAP && \
        p[0] == opt) { \
        len -= CILEN_CHAP; \
        INCPTR(2, p); \
        GETSHORT(cishort, p); \
        GETCHAR(cichar, p); \
        /* Check rejected value. */ \
        if (cishort != val || cichar != digest) \
            goto bad; \
        try.neg = 0; \
        try.neg_upap = 0; \
    }

REJCILONG

#define REJCILONG	(		opt,
			neg,
			val
	)

Value:

if (go->neg && \
        len >= CILEN_LONG && \
        p[1] == CILEN_LONG && \
        p[0] == opt) { \
        len -= CILEN_LONG; \
        INCPTR(2, p); \
        GETLONG(cilong, p); \
        /* Check rejected value. */ \
        if (cilong != val) \
            goto bad; \
        try.neg = 0; \
    }

REJCILQR

#define REJCILQR	(		opt,
			neg,
			val
	)

Value:

if (go->neg && \
        len >= CILEN_LQR && \
        p[1] == CILEN_LQR && \
        p[0] == opt) { \
        len -= CILEN_LQR; \
        INCPTR(2, p); \
        GETSHORT(cishort, p); \
        GETLONG(cilong, p); \
        /* Check rejected value. */ \
        if (cishort != PPP_LQR || cilong != val) \
            goto bad; \
        try.neg = 0; \
    }

REJCISHORT

#define REJCISHORT	(		opt,
			neg,
			val
	)

Value:

if (go->neg && \
        len >= CILEN_SHORT && \
        p[1] == CILEN_SHORT && \
        p[0] == opt) { \
        len -= CILEN_SHORT; \
        INCPTR(2, p); \
        GETSHORT(cishort, p); \
        /* Check rejected value. */ \
        if (cishort != val) \
            goto bad; \
        try.neg = 0; \
    }

REJCIVOID

#define REJCIVOID	(		opt,
			neg
	)

Value:

if (go->neg && \
        len >= CILEN_VOID && \
        p[1] == CILEN_VOID && \
        p[0] == opt) { \
        len -= CILEN_VOID; \
        INCPTR(CILEN_VOID, p); \
        try.neg = 0; \
    }

Variable Documentation

lcp_protent

struct protent lcp_protent

Initial value:

= {
    PPP_LCP,
    lcp_init,
    lcp_input,
    lcp_protrej,
    lcp_lowerup,
    lcp_lowerdown,
    lcp_open,
    lcp_close,
    lcp_printpkt,
    NULL,
    1,
    "LCP",
    NULL,
    lcp_option_list,
    NULL,
    NULL,
    NULL
}
