Definitions for ATtiny25, ATtiny45 and ATtiny85. More...

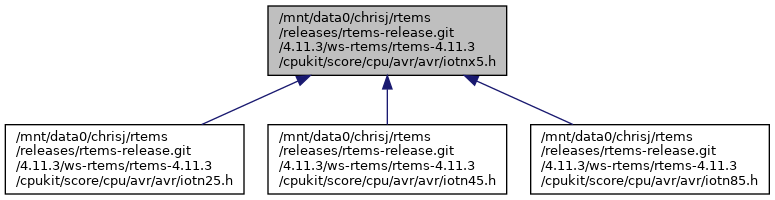

This graph shows which files directly or indirectly include this file:

Macros
#define	_AVR_IOXXX_H_ "iotnx5.h"

#define	ADCSRB _SFR_IO8 (0x03)

#define	BIN 7

#define	ACME 6

#define	IPR 5

#define	ADTS2 2

#define	ADTS1 1

#define	ADTS0 0

#define	ADC _SFR_IO16(0x04)

#define	ADCW _SFR_IO16(0x04)

#define	ADCL _SFR_IO8(0x04)

#define	ADCH _SFR_IO8(0x05)

#define	ADCSRA _SFR_IO8 (0x06)

#define	ADEN 7

#define	ADSC 6

#define	ADATE 5

#define	ADIF 4

#define	ADIE 3

#define	ADPS2 2

#define	ADPS1 1

#define	ADPS0 0

#define	ADMUX _SFR_IO8(0x07)

#define	REFS1 7

#define	REFS0 6

#define	ADLAR 5

#define	REFS2 4

#define	MUX3 3

#define	MUX2 2

#define	MUX1 1

#define	MUX0 0

#define	ACSR _SFR_IO8(0x08)

#define	ACD 7

#define	ACBG 6

#define	ACO 5

#define	ACI 4

#define	ACIE 3

#define	ACIS1 1

#define	ACIS0 0

#define	USICR _SFR_IO8(0x0D)

#define	USISIE 7

#define	USIOIE 6

#define	USIWM1 5

#define	USIWM0 4

#define	USICS1 3

#define	USICS0 2

#define	USICLK 1

#define	USITC 0

#define	USISR _SFR_IO8(0x0E)

#define	USISIF 7

#define	USIOIF 6

#define	USIPF 5

#define	USIDC 4

#define	USICNT3 3

#define	USICNT2 2

#define	USICNT1 1

#define	USICNT0 0

#define	USIDR _SFR_IO8(0x0F)

#define	USIBR _SFR_IO8(0x10)

#define	GPIOR0 _SFR_IO8(0x11)

#define	GPIOR1 _SFR_IO8(0x12)

#define	GPIOR2 _SFR_IO8(0x13)

#define	DIDR0 _SFR_IO8(0x14)

#define	ADC0D 5

#define	ADC2D 4

#define	ADC3D 3

#define	ADC1D 2

#define	AIN1D 1

#define	AIN0D 0

#define	PCMSK _SFR_IO8(0x15)

#define	PCINT5 5

#define	PCINT4 4

#define	PCINT3 3

#define	PCINT2 2

#define	PCINT1 1

#define	PCINT0 0

#define	PINB _SFR_IO8(0x16)

#define	PINB5 5

#define	PINB4 4

#define	PINB3 3

#define	PINB2 2

#define	PINB1 1

#define	PINB0 0

#define	DDRB _SFR_IO8(0x17)

#define	DDB5 5

#define	DDB4 4

#define	DDB3 3

#define	DDB2 2

#define	DDB1 1

#define	DDB0 0

#define	PORTB _SFR_IO8(0x18)

#define	PB5 5

#define	PB4 4

#define	PB3 3

#define	PB2 2

#define	PB1 1

#define	PB0 0

#define	EECR _SFR_IO8(0x1C)

#define	EEPM1 5

#define	EEPM0 4

#define	EERIE 3

#define	EEMPE 2

#define	EEPE 1

#define	EERE 0

#define	EEDR _SFR_IO8(0x1D)

#define	EEAR _SFR_IO16(0x1E)

#define	EEARL _SFR_IO8(0x1E)

#define	EEARH _SFR_IO8(0x1F)

#define	PRR _SFR_IO8(0x20)

#define	PRTIM1 3

#define	PRTIM0 2

#define	PRUSI 1

#define	PRADC 0

#define	WDTCR _SFR_IO8(0x21)

#define	WDIF 7

#define	WDIE 6

#define	WDP3 5

#define	WDCE 4

#define	WDE 3

#define	WDP2 2

#define	WDP1 1

#define	WDP0 0

#define	DWDR _SFR_IO8(0x22)

#define	DTPS1 _SFR_IO8(0x23)

#define	DTPS11 1

#define	DTPS10 0

#define	DT1B _SFR_IO8(0x24)

#define	DT1BH3 7

#define	DT1BH2 6

#define	DT1BH1 5

#define	DT1BH0 4

#define	DT1BL3 3

#define	DT1BL2 2

#define	DT1BL1 1

#define	DT1BL0 0

#define	DT1A _SFR_IO8(0x25)

#define	DT1AH3 7

#define	DT1AH2 6

#define	DT1AH1 5

#define	DT1AH0 4

#define	DT1AL3 3

#define	DT1AL2 2

#define	DT1AL1 1

#define	DT1AL0 0

#define	CLKPR _SFR_IO8(0x26)

#define	CLKPCE 7

#define	CLKPS3 3

#define	CLKPS2 2

#define	CLKPS1 1

#define	CLKPS0 0

#define	PLLCSR _SFR_IO8(0x27)

#define	LSM 7

#define	PCKE 2

#define	PLLE 1

#define	PLOCK 0

#define	OCR0B _SFR_IO8(0x28)

#define	OCR0A _SFR_IO8(0x29)

#define	TCCR0A _SFR_IO8(0x2A)

#define	COM0A1 7

#define	COM0A0 6

#define	COM0B1 5

#define	COM0B0 4

#define	WGM01 1

#define	WGM00 0

#define	OCR1B _SFR_IO8(0x2B)

#define	GTCCR _SFR_IO8(0x2C)

#define	TSM 7

#define	PWM1B 6

#define	COM1B1 5

#define	COM1B0 4

#define	FOC1B 3

#define	FOC1A 2

#define	PSR1 1

#define	PSR0 0

#define	OCR1C _SFR_IO8(0x2D)

#define	OCR1A _SFR_IO8(0x2E)

#define	TCNT1 _SFR_IO8(0x2F)

#define	TCCR1 _SFR_IO8(0x30)

#define	CTC1 7

#define	PWM1A 6

#define	COM1A1 5

#define	COM1A0 4

#define	CS13 3

#define	CS12 2

#define	CS11 1

#define	CS10 0

#define	OSCCAL _SFR_IO8(0x31)

#define	TCNT0 _SFR_IO8(0x32)

#define	TCCR0B _SFR_IO8(0x33)

#define	FOC0A 7

#define	FOC0B 6

#define	WGM02 3

#define	CS02 2

#define	CS01 1

#define	CS00 0

#define	MCUSR _SFR_IO8(0x34)

#define	WDRF 3

#define	BORF 2

#define	EXTRF 1

#define	PORF 0

#define	MCUCR _SFR_IO8(0x35)

#define	BODS 7

#define	PUD 6

#define	SE 5

#define	SM1 4

#define	SM0 3

#define	BODSE 2

#define	ISC01 1

#define	ISC00 0

#define	SPMCSR _SFR_IO8(0x37)

#define	RSIG 5

#define	CTPB 4

#define	RFLB 3

#define	PGWRT 2

#define	PGERS 1

#define	SPMEN 0

#define	TIFR _SFR_IO8(0x38)

#define	OCF1A 6

#define	OCF1B 5

#define	OCF0A 4

#define	OCF0B 3

#define	TOV1 2

#define	TOV0 1

#define	TIMSK _SFR_IO8(0x39)

#define	OCIE1A 6

#define	OCIE1B 5

#define	OCIE0A 4

#define	OCIE0B 3

#define	TOIE1 2

#define	TOIE0 1

#define	GIFR _SFR_IO8(0x3A)

#define	INTF0 6

#define	PCIF 5

#define	GIMSK _SFR_IO8(0x3B)

#define	INT0 6

#define	PCIE 5

#define	INT0_vect _VECTOR(1)


#define	SIG_INTERRUPT0 _VECTOR(1)

#define	PCINT0_vect _VECTOR(2)

#define	SIG_PIN_CHANGE _VECTOR(2)

#define	TIM1_COMPA_vect _VECTOR(3)

#define	TIMER1_COMPA_vect _VECTOR(3)

#define	SIG_OUTPUT_COMPARE1A _VECTOR(3)

#define	TIM1_OVF_vect _VECTOR(4)

#define	TIMER1_OVF_vect _VECTOR(4)

#define	SIG_OVERFLOW1 _VECTOR(4)

#define	TIM0_OVF_vect _VECTOR(5)

#define	TIMER0_OVF_vect _VECTOR(5)

#define	SIG_OVERFLOW0 _VECTOR(5)

#define	EE_RDY_vect _VECTOR(6)

#define	SIG_EEPROM_READY _VECTOR(6)

#define	ANA_COMP_vect _VECTOR(7)

#define	SIG_COMPARATOR _VECTOR(7)

#define	ADC_vect _VECTOR(8)

#define	SIG_ADC _VECTOR(8)

#define	TIM1_COMPB_vect _VECTOR(9)

#define	TIMER1_COMPB_vect _VECTOR(9)

#define	SIG_OUTPUT_COMPARE1B _VECTOR(9)

#define	TIM0_COMPA_vect _VECTOR(10)

#define	TIMER0_COMPA_vect _VECTOR(10)

#define	SIG_OUTPUT_COMPARE0A _VECTOR(10)

#define	TIM0_COMPB_vect _VECTOR(11)

#define	TIMER0_COMPB_vect _VECTOR(11)

#define	SIG_OUTPUT_COMPARE0B _VECTOR(11)

#define	WDT_vect _VECTOR(12)

#define	SIG_WATCHDOG_TIMEOUT _VECTOR(12)

#define	USI_START_vect _VECTOR(13)

#define	SIG_USI_START _VECTOR(13)

#define	USI_OVF_vect _VECTOR(14)

#define	SIG_USI_OVERFLOW _VECTOR(14)

#define	_VECTORS_SIZE 30

Detailed Description

Definitions for ATtiny25, ATtiny45 and ATtiny85.

This file should only be included from <avr/io.h>, never directly.

Macros

Detailed Description
