Interface to a Flash Disk Block Device. More...

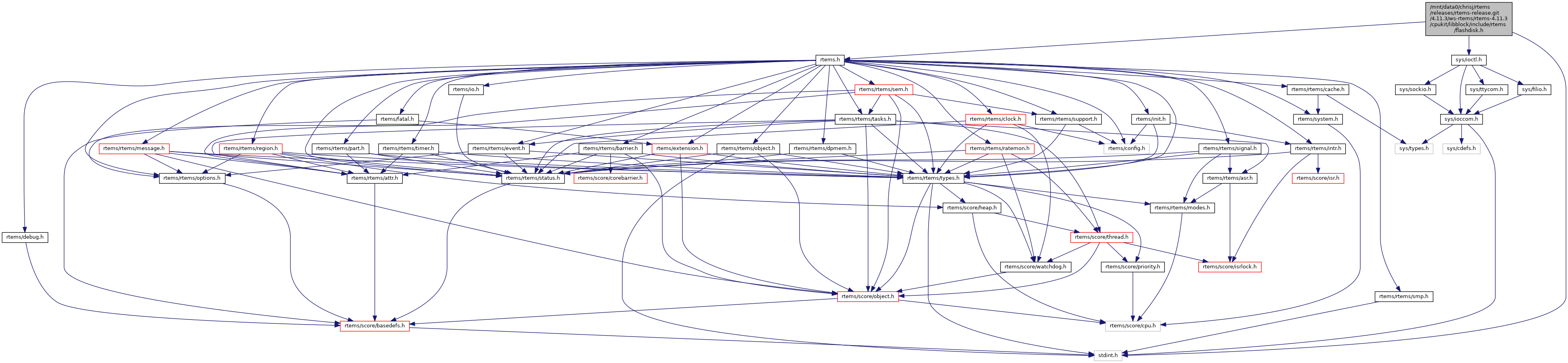

Include dependency graph for flashdisk.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | rtems_fdisk_monitor_data |
| Flash Disk Monitoring Data allows a user to obtain the current status of the disk. More... | |
| struct | rtems_fdisk_segment_desc |
| Flash Segment Descriptor holds, number of continuous segments in the device of this type, the base segment number in the device, the address offset of the base segment in the device, and the size of segment. More... | |
| struct | rtems_fdisk_driver_handlers |
| Flash Low Level driver handlers. More... | |
| struct | rtems_fdisk_device_desc |
| Flash Device Descriptor holds the segments in a device. More... | |
| struct | rtems_flashdisk_config |
| RTEMS Flash Disk configuration table used to initialise the driver. More... | |
Macros | |
| #define | RTEMS_FLASHDISK_DEVICE_BASE_NAME "/dev/fdd" |
| The base name of the flash disks. | |
| #define | RTEMS_FDISK_IOCTL_ERASE_DISK _IO('B', 128) |
| #define | RTEMS_FDISK_IOCTL_COMPACT _IO('B', 129) |
| #define | RTEMS_FDISK_IOCTL_ERASE_USED _IO('B', 130) |
| #define | RTEMS_FDISK_IOCTL_MONITORING _IO('B', 131) |
| #define | RTEMS_FDISK_IOCTL_INFO_LEVEL _IO('B', 132) |
| #define | RTEMS_FDISK_IOCTL_PRINT_STATUS _IO('B', 133) |
| #define | RTEMS_FDISK_KBYTES(_k) (UINT32_C(1024) * (_k)) |
| Return the number of kilo-bytes. | |
| #define | RTEMS_FDISK_BACKGROUND_ERASE (1 << 0) |
| Leave the erasing of used segment to the background handler. | |
| #define | RTEMS_FDISK_BACKGROUND_COMPACT (1 << 1) |
| Leave the compacting of of used segment to the background handler. | |
| #define | RTEMS_FDISK_CHECK_PAGES (1 << 2) |
| Check the pages during initialisation to see which pages are valid and which are not. More... | |
| #define | RTEMS_FDISK_BLANK_CHECK_BEFORE_WRITE (1 << 3) |
| Blank check the flash device before writing to them. More... | |
Typedefs | |
| typedef struct rtems_fdisk_monitor_data | rtems_fdisk_monitor_data |
| Flash Disk Monitoring Data allows a user to obtain the current status of the disk. | |
| typedef struct rtems_fdisk_segment_desc | rtems_fdisk_segment_desc |
| Flash Segment Descriptor holds, number of continuous segments in the device of this type, the base segment number in the device, the address offset of the base segment in the device, and the size of segment. More... | |
| typedef struct rtems_fdisk_driver_handlers | rtems_fdisk_driver_handlers |
| Flash Low Level driver handlers. More... | |
| typedef struct rtems_fdisk_device_desc | rtems_fdisk_device_desc |
| Flash Device Descriptor holds the segments in a device. More... | |
| typedef struct rtems_flashdisk_config | rtems_flashdisk_config |
| RTEMS Flash Disk configuration table used to initialise the driver. More... | |
Functions | |
| rtems_device_driver | rtems_fdisk_initialize (rtems_device_major_number major, rtems_device_minor_number minor, void *arg) |
| Flash disk device driver initialization. More... | |
Variables | |
| const rtems_flashdisk_config | rtems_flashdisk_configuration [] |
| External reference to the configuration. More... | |
| uint32_t | rtems_flashdisk_configuration_size |
| External reference to the number of configurations. More... | |
Detailed Description
Interface to a Flash Disk Block Device.
This file defines the interface to a flash disk block device.
