Capture Engine Component of the RTEMS Measurement and Monitoring System. More...

#include <rtems.h>
#include <rtems/rtems/tasksimpl.h>

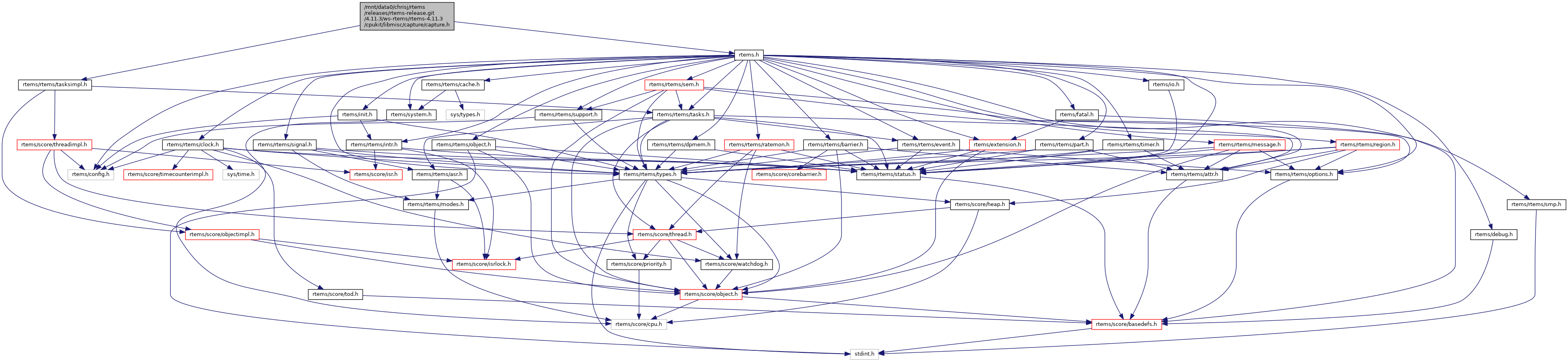

Include dependency graph for capture.h:

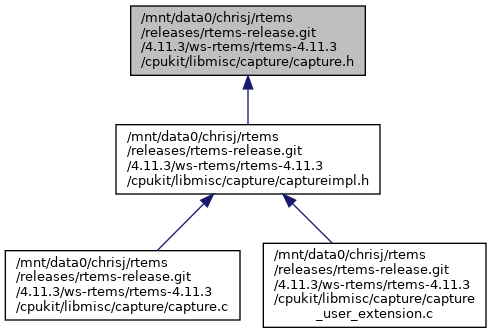

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rtems_capture_from_s
	Task id and mask for the from trigger. More...

struct	rtems_capture_control_s
	Capture control structure for a group of tasks. More...

struct	rtems_capture_record_s

struct	rtems_capture_task_record_s

Macros
#define	RTEMS_CAPTURE_TRIGGER_TASKS (32)
	The number of tasks in a trigger group.

#define	RTEMS_CAPTURE_CONTROL_FROM_MASK(_s) (UINT32_C(1) << (RTEMS_CAPTURE_TRIGGER_TASKS - ((_s) + 1)))
	The from_valid mask.

#define	RTEMS_CAPTURE_WATCH (1U << 0)
	Control flags.

#define	RTEMS_CAPTURE_SWITCH (1 << 0)
	Control triggers.

#define	RTEMS_CAPTURE_CREATE (1 << 1)

#define	RTEMS_CAPTURE_START (1 << 2)

#define	RTEMS_CAPTURE_RESTART (1 << 3)

#define	RTEMS_CAPTURE_DELETE (1 << 4)

#define	RTEMS_CAPTURE_BEGIN (1 << 5)

#define	RTEMS_CAPTURE_EXITTED (1 << 6)

#define	RTEMS_CAPTURE_TERMINATED (1 << 7)

#define	RTEMS_CAPTURE_FROM_TRIGS

#define	RTEMS_CAPTURE_TO_TRIGS

#define	RTEMS_CAPTURE_TRACED (1U << 0)
	Task flags.

#define	RTEMS_CAPTURE_INIT_TASK (1U << 1)

#define	RTEMS_CAPTURE_RECORD_TASK (1U << 2)

#define	RTEMS_CAPTURE_REAL_PRI_EVENT_MASK UINT32_C (0x000000ff)
	The capture record event flags.

#define	RTEMS_CAPTURE_CURR_PRI_EVENT_MASK UINT32_C (0x0000ff00)

#define	RTEMS_CAPTURE_REAL_PRIORITY_EVENT (0)

#define	RTEMS_CAPTURE_CURR_PRIORITY_EVENT (8)

#define	RTEMS_CAPTURE_EVENT_START (16)

#define	RTEMS_CAPTURE_CREATED_BY_EVENT UINT32_C (0x00010000)

#define	RTEMS_CAPTURE_CREATED_EVENT UINT32_C (0x00020000)

#define	RTEMS_CAPTURE_STARTED_BY_EVENT UINT32_C (0x00040000)

#define	RTEMS_CAPTURE_STARTED_EVENT UINT32_C (0x00080000)

#define	RTEMS_CAPTURE_RESTARTED_BY_EVENT UINT32_C (0x00100000)

#define	RTEMS_CAPTURE_RESTARTED_EVENT UINT32_C (0x00200000)

#define	RTEMS_CAPTURE_DELETED_BY_EVENT UINT32_C (0x00400000)

#define	RTEMS_CAPTURE_DELETED_EVENT UINT32_C (0x00800000)

#define	RTEMS_CAPTURE_TERMINATED_EVENT UINT32_C (0x01000000)

#define	RTEMS_CAPTURE_BEGIN_EVENT UINT32_C (0x02000000)

#define	RTEMS_CAPTURE_EXITTED_EVENT UINT32_C (0x04000000)

#define	RTEMS_CAPTURE_SWITCHED_OUT_EVENT UINT32_C (0x08000000)

#define	RTEMS_CAPTURE_SWITCHED_IN_EVENT UINT32_C (0x10000000)

#define	RTEMS_CAPTURE_TIMESTAMP UINT32_C (0x20000000)

#define	RTEMS_CAPTURE_EVENT_END (29)

Typedefs
typedef uint64_t	rtems_capture_time_t
	A capture timestamp. More...

typedef struct rtems_capture_from_s	rtems_capture_from_t
	Task id and mask for the from trigger. More...

typedef struct rtems_capture_control_s	rtems_capture_control_t
	Capture control structure for a group of tasks. More...

typedef struct rtems_capture_record_s	rtems_capture_record_t

typedef struct rtems_capture_task_record_s	rtems_capture_task_record_t

typedef enum rtems_capture_trigger_mode_e	rtems_capture_trigger_mode_t
	Capture trigger modes. More...

typedef enum rtems_capture_trigger_e	rtems_capture_trigger_t
	Capture trigger. More...

typedef void(*	rtems_capture_timestamp) (rtems_capture_time_t *time)
	Capture timestamp callout handler. More...

Enumerations
enum	rtems_capture_trigger_mode_e { rtems_capture_to_any, rtems_capture_from_any, rtems_capture_from_to }
	Capture trigger modes. More...

enum	rtems_capture_trigger_e { rtems_capture_switch, rtems_capture_create, rtems_capture_start, rtems_capture_restart, rtems_capture_delete, rtems_capture_begin, rtems_capture_exitted, rtems_capture_terminated }
	Capture trigger. More...

Functions
rtems_status_code	rtems_capture_open (uint32_t size, rtems_capture_timestamp timestamp)
	Capture open. More...

rtems_status_code	rtems_capture_close (void)
	Capture close. More...

rtems_status_code	rtems_capture_control (bool enable)
	Capture control trace enable/disable. More...

rtems_status_code	rtems_capture_monitor (bool enable)
	Capture monitor enable/disable. More...

rtems_status_code	rtems_capture_flush (bool prime)

rtems_status_code	rtems_capture_watch_add (rtems_name name, rtems_id id)
	Capture add watch. More...

rtems_status_code	rtems_capture_watch_del (rtems_name name, rtems_id id)
	Capture delete watch. More...

rtems_status_code	rtems_capture_watch_ctrl (rtems_name name, rtems_id id, bool enable)
	Capture enable/disable watch. More...

rtems_status_code	rtems_capture_watch_global (bool enable)
	Capture enable/disable global watch. More...

bool	rtems_capture_watch_global_on (void)
	Get global watch state. More...

rtems_status_code	rtems_capture_watch_ceiling (rtems_task_priority ceiling)
	Set watch ceiling. More...

rtems_task_priority	rtems_capture_watch_get_ceiling (void)
	Get watch ceiling. More...

rtems_status_code	rtems_capture_watch_floor (rtems_task_priority floor)
	Capture set watch floor. More...

rtems_task_priority	rtems_capture_watch_get_floor (void)
	Capture set watch floor. More...

rtems_status_code	rtems_capture_set_trigger (rtems_name from_name, rtems_id from_id, rtems_name to_name, rtems_id to_id, rtems_capture_trigger_mode_t mode, rtems_capture_trigger_t trigger)
	Capture set trigger. More...

rtems_status_code	rtems_capture_clear_trigger (rtems_name from_name, rtems_id from_id, rtems_name to_name, rtems_id to_id, rtems_capture_trigger_mode_t mode, rtems_capture_trigger_t trigger)
	Capture clear trigger. More...

rtems_status_code	rtems_capture_read (uint32_t cpu, uint32_t read, rtems_capture_record_t *recs)
	Capture read records from capture buffer. More...

rtems_status_code	rtems_capture_release (uint32_t cpu, uint32_t count)
	Capture release records. More...

void	rtems_capture_time (rtems_capture_time_t *uptime)

const char *	rtems_capture_event_text (int event)
	Capture get event text. More...

void	rtems_capture_initialize_task (rtems_tcb *tcb)
	Capture initialize task. More...

void	rtems_capture_record_task (rtems_tcb *tcb)
	Capture record task. More...

rtems_capture_control_t *	rtems_capture_get_control_list (void)
	Capture get control list. More...

Detailed Description

Capture Engine Component of the RTEMS Measurement and Monitoring System.

This is the Capture Engine component of the RTEMS Measurement and Monitoring system.
