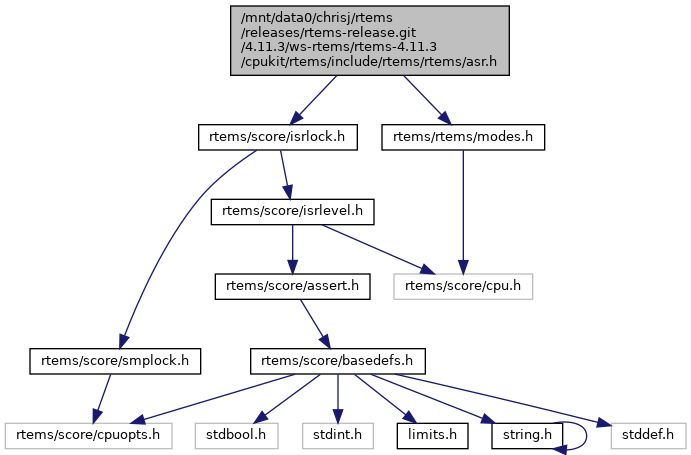

Include dependency graph for asr.h:

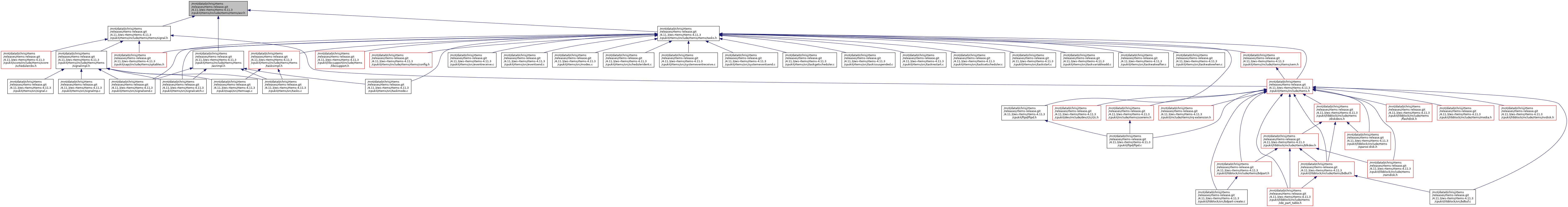

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | ASR_Information |
| The following defines the control structure used to manage signals. More... | |
Macros | |
| #define | RTEMS_SIGNAL_0 0x00000001 |
| This defines the bit in the signal set associated with signal 0. More... | |
| #define | RTEMS_SIGNAL_1 0x00000002 |
| This defines the bit in the signal set associated with signal 1. More... | |
| #define | RTEMS_SIGNAL_2 0x00000004 |
| This defines the bit in the signal set associated with signal 2. More... | |
| #define | RTEMS_SIGNAL_3 0x00000008 |
| This defines the bit in the signal set associated with signal 3. More... | |
| #define | RTEMS_SIGNAL_4 0x00000010 |
| This defines the bit in the signal set associated with signal 4. More... | |
| #define | RTEMS_SIGNAL_5 0x00000020 |
| This defines the bit in the signal set associated with signal 5. More... | |
| #define | RTEMS_SIGNAL_6 0x00000040 |
| This defines the bit in the signal set associated with signal 6. More... | |
| #define | RTEMS_SIGNAL_7 0x00000080 |
| This defines the bit in the signal set associated with signal 7. More... | |
| #define | RTEMS_SIGNAL_8 0x00000100 |
| This defines the bit in the signal set associated with signal 8. More... | |
| #define | RTEMS_SIGNAL_9 0x00000200 |
| This defines the bit in the signal set associated with signal 9. More... | |
| #define | RTEMS_SIGNAL_10 0x00000400 |
| This defines the bit in the signal set associated with signal 10. More... | |
| #define | RTEMS_SIGNAL_11 0x00000800 |
| This defines the bit in the signal set associated with signal 11. More... | |
| #define | RTEMS_SIGNAL_12 0x00001000 |
| This defines the bit in the signal set associated with signal 12. More... | |
| #define | RTEMS_SIGNAL_13 0x00002000 |
| This defines the bit in the signal set associated with signal 13. More... | |
| #define | RTEMS_SIGNAL_14 0x00004000 |
| This defines the bit in the signal set associated with signal 14. More... | |
| #define | RTEMS_SIGNAL_15 0x00008000 |
| This defines the bit in the signal set associated with signal 15. More... | |
| #define | RTEMS_SIGNAL_16 0x00010000 |
| This defines the bit in the signal set associated with signal 16. More... | |
| #define | RTEMS_SIGNAL_17 0x00020000 |
| This defines the bit in the signal set associated with signal 17. More... | |
| #define | RTEMS_SIGNAL_18 0x00040000 |
| This defines the bit in the signal set associated with signal 18. More... | |
| #define | RTEMS_SIGNAL_19 0x00080000 |
| This defines the bit in the signal set associated with signal 19. More... | |
| #define | RTEMS_SIGNAL_20 0x00100000 |
| This defines the bit in the signal set associated with signal 20. More... | |
| #define | RTEMS_SIGNAL_21 0x00200000 |
| This defines the bit in the signal set associated with signal 21. More... | |
| #define | RTEMS_SIGNAL_22 0x00400000 |
| This defines the bit in the signal set associated with signal 22. More... | |
| #define | RTEMS_SIGNAL_23 0x00800000 |
| This defines the bit in the signal set associated with signal 23. More... | |
| #define | RTEMS_SIGNAL_24 0x01000000 |
| This defines the bit in the signal set associated with signal 24. More... | |
| #define | RTEMS_SIGNAL_25 0x02000000 |
| This defines the bit in the signal set associated with signal 25. More... | |
| #define | RTEMS_SIGNAL_26 0x04000000 |
| This defines the bit in the signal set associated with signal 26. More... | |
| #define | RTEMS_SIGNAL_27 0x08000000 |
| This defines the bit in the signal set associated with signal 27. More... | |
| #define | RTEMS_SIGNAL_28 0x10000000 |
| This defines the bit in the signal set associated with signal 28. More... | |
| #define | RTEMS_SIGNAL_29 0x20000000 |
| This defines the bit in the signal set associated with signal 29. More... | |
| #define | RTEMS_SIGNAL_30 0x40000000 |
| This defines the bit in the signal set associated with signal 30. More... | |
| #define | RTEMS_SIGNAL_31 0x80000000 |
| This defines the bit in the signal set associated with signal 31. More... | |
Typedefs | |
| typedef uint32_t | rtems_signal_set |
| The following type defines the control block used to manage each signal set. | |
| typedef void | rtems_asr |
| Return type for ASR Handler. | |
| typedef rtems_asr(* | rtems_asr_entry) (rtems_signal_set) |
| The following type corresponds to the applications asynchronous signal processing routine. | |
