mii.h File Reference

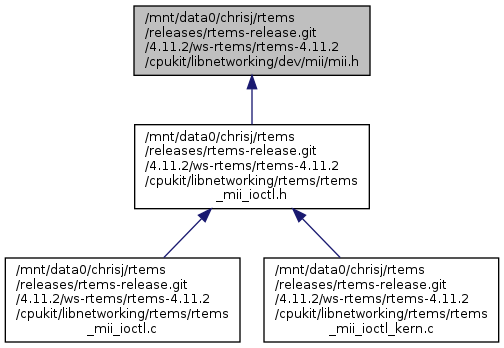

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define MII_NPHY   32 /* max # of PHYs per MII */

#define MII_COMMAND_START   0x01

#define MII_COMMAND_READ   0x02

#define MII_COMMAND_WRITE   0x01

#define MII_COMMAND_ACK   0x02

#define MII_BMCR   0x00 /* Basic mode control register (rw) */

#define BMCR_RESET   0x8000 /* reset */

#define BMCR_LOOP   0x4000 /* loopback */

#define BMCR_SPEED0   0x2000 /* speed selection (LSB) */

#define BMCR_AUTOEN   0x1000 /* autonegotiation enable */

#define BMCR_PDOWN   0x0800 /* power down */

#define BMCR_ISO   0x0400 /* isolate */

#define BMCR_STARTNEG   0x0200 /* restart autonegotiation */

#define BMCR_FDX   0x0100 /* Set duplex mode */

#define BMCR_CTEST   0x0080 /* collision test */

#define BMCR_SPEED1   0x0040 /* speed selection (MSB) */

#define BMCR_S10   0x0000 /* 10 Mb/s */

#define BMCR_S100   BMCR_SPEED0 /* 100 Mb/s */

#define BMCR_S1000   BMCR_SPEED1 /* 1000 Mb/s */

#define BMCR_SPEED(x)   ((x) & (BMCR_SPEED0|BMCR_SPEED1))

#define MII_BMSR   0x01 /* Basic mode status register (ro) */

#define BMSR_100T4   0x8000 /* 100 base T4 capable */

#define BMSR_100TXFDX   0x4000 /* 100 base Tx full duplex capable */

#define BMSR_100TXHDX   0x2000 /* 100 base Tx half duplex capable */

#define BMSR_10TFDX   0x1000 /* 10 base T full duplex capable */

#define BMSR_10THDX   0x0800 /* 10 base T half duplex capable */

#define BMSR_100T2FDX   0x0400 /* 100 base T2 full duplex capable */

#define BMSR_100T2HDX   0x0200 /* 100 base T2 half duplex capable */

#define BMSR_EXTSTAT   0x0100 /* Extended status in register 15 */

#define BMSR_MFPS   0x0040 /* MII Frame Preamble Suppression */

#define BMSR_ACOMP   0x0020 /* Autonegotiation complete */

#define BMSR_RFAULT   0x0010 /* Link partner fault */

#define BMSR_ANEG   0x0008 /* Autonegotiation capable */

#define BMSR_LINK   0x0004 /* Link status */

#define BMSR_JABBER   0x0002 /* Jabber detected */

#define BMSR_EXTCAP   0x0001 /* Extended capability */

#define BMSR_MEDIAMASK

#define BMSR_MEDIA_TO_ANAR(x)   (((x) & BMSR_MEDIAMASK) >> 6)

#define MII_PHYIDR1   0x02 /* ID register 1 (ro) */

#define MII_PHYIDR2   0x03 /* ID register 2 (ro) */

#define IDR2_OUILSB   0xfc00 /* OUI LSB */

#define IDR2_MODEL   0x03f0 /* vendor model */

#define IDR2_REV   0x000f /* vendor revision */

#define MII_OUI(id1, id2)   (((id1) << 6) | ((id2) >> 10))

#define MII_MODEL(id2)   (((id2) & IDR2_MODEL) >> 4)

#define MII_REV(id2)   ((id2) & IDR2_REV)

#define MII_ANAR   0x04 /* Autonegotiation advertisement (rw) */

#define ANAR_NP   0x8000 /* Next page (ro) */

#define ANAR_ACK   0x4000 /* link partner abilities acknowledged (ro) */

#define ANAR_RF   0x2000 /* remote fault (ro) */

#define ANAR_FC   0x0400 /* local device supports PAUSE */

#define ANAR_T4   0x0200 /* local device supports 100bT4 */

#define ANAR_TX_FD   0x0100 /* local device supports 100bTx FD */

#define ANAR_TX   0x0080 /* local device supports 100bTx */

#define ANAR_10_FD   0x0040 /* local device supports 10bT FD */

#define ANAR_10   0x0020 /* local device supports 10bT */

#define ANAR_CSMA   0x0001 /* protocol selector CSMA/CD */

#define ANAR_X_FD   0x0020 /* local device supports 1000BASE-X FD */

#define ANAR_X_HD   0x0040 /* local device supports 1000BASE-X HD */

#define ANAR_X_PAUSE_NONE   (0 << 7)

#define ANAR_X_PAUSE_SYM   (1 << 7)

#define ANAR_X_PAUSE_ASYM   (2 << 7)

#define ANAR_X_PAUSE_TOWARDS   (3 << 7)

#define MII_ANLPAR   0x05 /* Autonegotiation lnk partner abilities (rw) */

#define ANLPAR_NP   0x8000 /* Next page (ro) */

#define ANLPAR_ACK   0x4000 /* link partner accepted ACK (ro) */

#define ANLPAR_RF   0x2000 /* remote fault (ro) */

#define ANLPAR_FC   0x0400 /* link partner supports PAUSE */

#define ANLPAR_T4   0x0200 /* link partner supports 100bT4 */

#define ANLPAR_TX_FD   0x0100 /* link partner supports 100bTx FD */

#define ANLPAR_TX   0x0080 /* link partner supports 100bTx */

#define ANLPAR_10_FD   0x0040 /* link partner supports 10bT FD */

#define ANLPAR_10   0x0020 /* link partner supports 10bT */

#define ANLPAR_CSMA   0x0001 /* protocol selector CSMA/CD */

#define ANLPAR_X_FD   0x0020 /* local device supports 1000BASE-X FD */

#define ANLPAR_X_HD   0x0040 /* local device supports 1000BASE-X HD */

#define ANLPAR_X_PAUSE_MASK   (3 << 7)

#define ANLPAR_X_PAUSE_NONE   (0 << 7)

#define ANLPAR_X_PAUSE_SYM   (1 << 7)

#define ANLPAR_X_PAUSE_ASYM   (2 << 7)

#define ANLPAR_X_PAUSE_TOWARDS   (3 << 7)

#define MII_ANER   0x06 /* Autonegotiation expansion (ro) */

#define ANER_MLF   0x0010 /* multiple link detection fault */

#define ANER_LPNP   0x0008 /* link parter next page-able */

#define ANER_NP   0x0004 /* next page-able */

#define ANER_PAGE_RX   0x0002 /* Page received */

#define ANER_LPAN   0x0001 /* link parter autoneg-able */

#define MII_ANNP   0x07 /* Autonegotiation next page */

#define MII_ANLPRNP   0x08 /* Autonegotiation link partner rx next page */

#define MII_100T2CR   0x09 /* 100base-T2 control register */

#define GTCR_TEST_MASK   0xe000 /* see 802.3ab ss. 40.6.1.1.2 */

#define GTCR_MAN_MS   0x1000 /* enable manual master/slave control */

#define GTCR_ADV_MS   0x0800 /* 1 = adv. master, 0 = adv. slave */

#define GTCR_PORT_TYPE   0x0400 /* 1 = DCE, 0 = DTE (NIC) */

#define GTCR_ADV_1000TFDX   0x0200 /* adv. 1000baseT FDX */

#define GTCR_ADV_1000THDX   0x0100 /* adv. 1000baseT HDX */

#define MII_100T2SR   0x0a /* 100base-T2 status register */

#define GTSR_MAN_MS_FLT   0x8000 /* master/slave config fault */

#define GTSR_MS_RES   0x4000 /* result: 1 = master, 0 = slave */

#define GTSR_LRS   0x2000 /* local rx status, 1 = ok */

#define GTSR_RRS   0x1000 /* remove rx status, 1 = ok */

#define GTSR_LP_1000TFDX   0x0800 /* link partner 1000baseT FDX capable */

#define GTSR_LP_1000THDX   0x0400 /* link partner 1000baseT HDX capable */

#define GTSR_LP_ASM_DIR   0x0200 /* link partner asym. pause dir. capable */

#define GTSR_IDLE_ERR   0x00ff /* IDLE error count */

#define MII_EXTSR   0x0f /* Extended status register */

#define EXTSR_1000XFDX   0x8000 /* 1000X full-duplex capable */

#define EXTSR_1000XHDX   0x4000 /* 1000X half-duplex capable */

#define EXTSR_1000TFDX   0x2000 /* 1000T full-duplex capable */

#define EXTSR_1000THDX   0x1000 /* 1000T half-duplex capable */

#define EXTSR_MEDIAMASK


Macro Definition Documentation

◆ BMSR_MEDIAMASK

#define BMSR_MEDIAMASK
Value:
(BMSR_100T4|BMSR_100TXFDX|BMSR_100TXHDX| \
BMSR_10TFDX|BMSR_10THDX|BMSR_100T2FDX|BMSR_100T2HDX)

◆ EXTSR_MEDIAMASK

#define EXTSR_MEDIAMASK
Value:
(EXTSR_1000XFDX|EXTSR_1000XHDX| \
EXTSR_1000TFDX|EXTSR_1000THDX)
